Apollo Valves 670750606045 Lc149-03-1 3 inches Butterfly Valve

Product Description

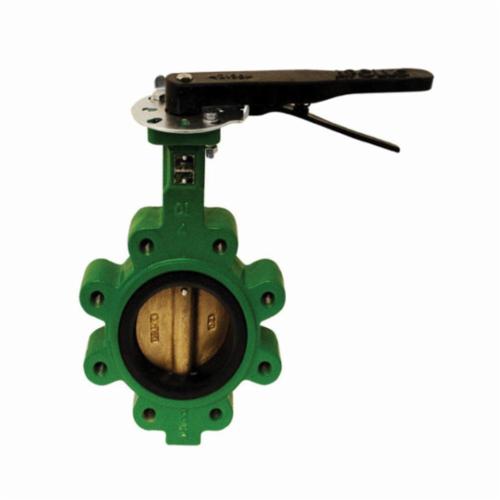

The APOLLO VALVES 670750606045 LC149-03-1 3" butterfly valve features a cast iron body and an aluminum/bronze disc with an EPDM seat, operated by a lever. The wetted surfaces contain no more than 0.25% lead by weighted average. It has a Buna-N stem seal and glass reinforced epoxy resin bushing. Designed for easy mounting of Apollo actuators and manual operators.

• Buna-N stem seal and glass reinforced epoxy resin bushing
• Black Buna-N seat
• Polished disc edge ensures long seat life, minimal torque

Product Highlights

This lug style butterfly valve features a polished disc edge, a square shaft-to-disc connection, and a stretch-resistant, non-collapsible blow-out proof seat.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750606045

Technical Specifications

• Brand: Apollo
• Actuator Type: Pneumatic/10-Position Handle
• Body Material: Cast Iron
• End Style: Flanged
• Nominal Size: 3 in
• Port Type: Full
• Pressure Class: 125/150
• Series: LC149
• Softgoods Material: EPDM Stem Seal
• Temperature Rating: -30 to 225 deg F
• Type: Contractor Grade Lug Style
• Standard/Approvals: API 609|ASTM A126 Class B Body|ASTM B148-C95400 Disc|ASTM A276 Shaft|CRN 0C12102.8CL|Federal Public Law 111-380|MSS SP-67|NSF/ANSI 372 Lead-Free|NSF/ANSI 61 Water Quality|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Pressure Rating: 200 psi
• Media: Water
• Domestic/Import: Domestic
