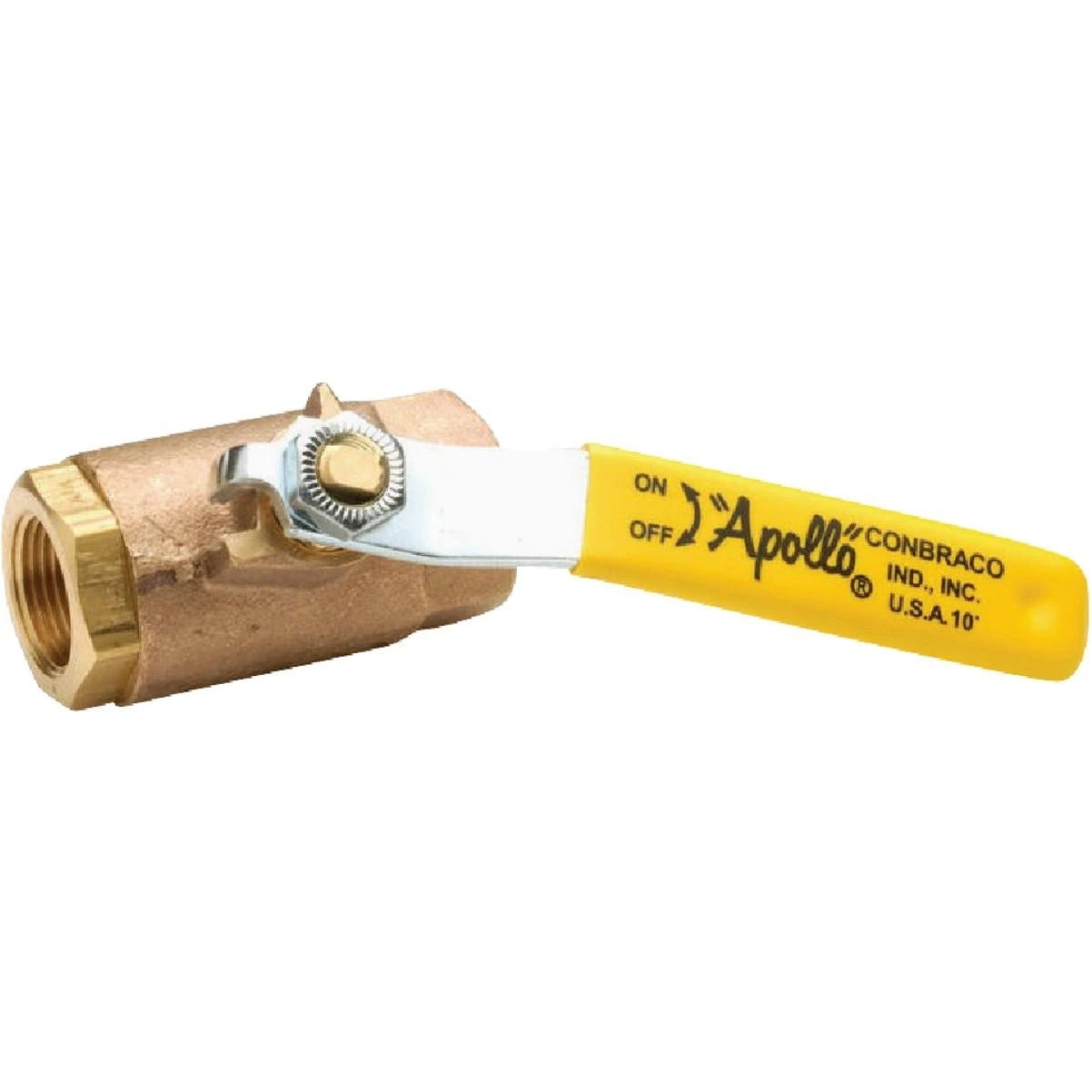

Apollo Valves 670750509452 70LF-103-01 two-piece regular port ball valve 1/2 in FNPT

Product Description

Apollo Valves 670750509452 is a lead-free bronze ball valve, model 70LF-103-01, designed for plumbing and heating systems including potable water. The two-piece regular port valve features a 1/2 inch FNPT connection, 1/2 inch orifice, and lever handle operation. Construction includes bronze body, brass ball and stem, RPTFE seats and seals, MPTFE packing, and a steel/vinyl handle, rated to 600 psi CWP and 350°F.

• Two-piece regular port design with bronze body (ASTM B584-C89836), brass ball and stem, and RPTFE seats and seals.
• 1/2 in FNPT connections with 1/2 in orifice; lever handle operator with steel/vinyl handle.
• Pressure and temperature ratings: 600 psi cold working pressure (CWP), 150 psi working steam pressure (WSP), temperature up to 350°F.

Product Highlights

Lead-free bronze two-piece ball valve, 1/2 in FNPT, 600 psi CWP, up to 350°F; designed and factory tested in the USA.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750509452
• Country of Origin: USA

Technical Specifications

• Brand: Apollo Valves
• Manufacturer: Aalberts Integrated Piping Systems
• Model Number: 70LF-103-01
• MPN: 670750509452
• UPC: 670750509452
• Series: 70LF-100 Series
• Nominal Size: 1/2 in
• Connection Type: 1/2 in FNPT
• Port Type: Regular
• Orifice Size: 1/2 in
• Inlet to Outlet Length: 2-1/4 in
• Top to Inlet Center: 1-3/4 in
• Dimensions: 4.16 in L
• Body Material: Bronze (ASTM B584-C89836)
• Ball Material: Brass
• Stem Material: Brass
• Seat Material: RPTFE
• Seal Material: RPTFE
• Packing Material: MPTFE
• Handle Material: Steel/Vinyl
• Operator Type: Lever handle
• Pressure Rating: 600 psi CWP; 150 psi WSP
• Temperature Rating: Up to 350 deg F
• Material Standard: ASTM B584-C89836
• Media: Potable water
• Lead-Free: Yes
• Country of Origin: USA
