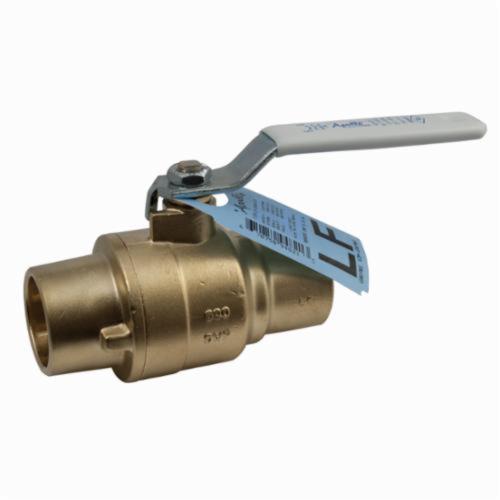

Apollo Valves 670750372179 77FLF-204-01 Ball Valve 3/4 inches Solder

Product Description

The APOLLO VALVES 670750372179 77FLF-204-01 is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. This two piece style solder connection valve carries multi-agency approvals and is designed to provide reliable operation at a competitive price. The valve is intended to be soft soldered into lines without disassembly.

• Heavy pattern forged design
• Superior RPTFE seats and packing
• Adjustable stem packing

Product Highlights

The APOLLO VALVES 670750372179 77FLF-204-01 ball valve features a blow-out proof stem, corrosion resistant materials, and silicone free assembly. 100% factory tested and suitable for vacuum service.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750372179
• Country of Origin: USA

Technical Specifications

• Body Material: Forged Brass
• Domestic / Import: Domestic
• End Style: Solder
• Nominal Size: 3/4 in
• Port Type: Full
• Softgoods Material: RPTFE
• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 3.13 in
• Manufacturer: Apollo Conbraco
• Manufacturer #: 77FLF-204-01
• Pressure Rating: 600 psi CWP
• Series: 77FLF-200
• Temperature Rating: 0 to 400 deg F
• Top to Inlet Center: 1.91 in
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
• Country of Origin: US
• Mfg Standards/Approvals: ARRA Compliant, Annex G, MSSP-SP-110 Ball Valves, IAPMO IGC-157 Ball Valves, FM 1140, NSF/ANSI 61 Section 8, NSF/ANSI 372, ISO 9001:2008 Registered
