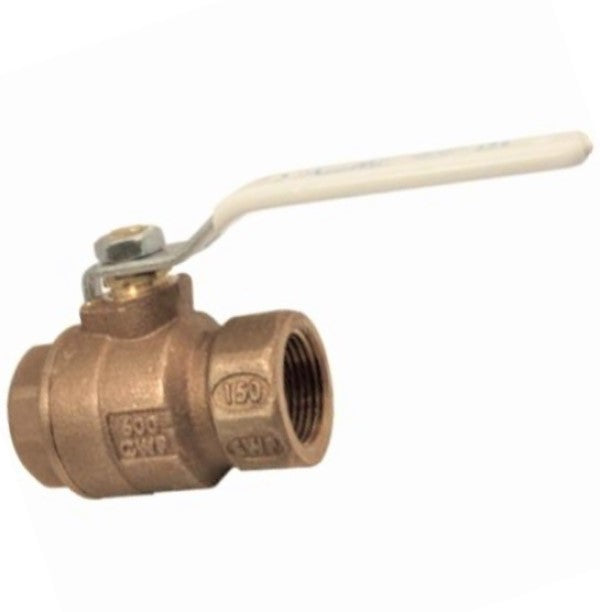

Apollo Valves 670750362484 77CLF-A Contractor 2-Piece Ball Valve, 1/2 in, FNPT

Product Description

The APOLLO VALVES 670750362484 is a 77CLF-A Contractor 2-Piece Ball Valve with a 1/2 inch FNPT connection, featuring a bronze body and full port design. It is suitable for water applications with a pressure rating of 600 psi CWP and a temperature rating of up to 450 degrees F.

• Features an EZ-Solder lead free bronze body.
• Includes a blow-out proof stem design.
• Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed.

Product Highlights

This Apollo ball valve is ideal for various plumbing and water applications, ensuring a secure and reliable connection.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750362484
• Country of Origin: US

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Country of Origin: US
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.29 in
• Media: Water
• Mfg Standards/Approvals: ANSI 3rd Party Approval to 0.25 Percent Lead Max, ASTM B584-C89836 Lead Free Retainer, City of Los Angeles DBS, CRN OC10908.5C, ISO 9001:2008 Registered, MSS SP-110, NSF/ANSI 61 Water Quality, NSF/ANSI 372 Lead Free, IAPMO R and T/UPC - IGC Z1157, UNS C27451 Lead-Free Stem
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 77CLF-A Contractor
• Softgoods Material: RPTFE Stem Packing Seat
• Temperature Rating: 450 deg F
• Top to Inlet Center: 1.79 in
• Trim Material: Brass
• Vacuum Service: 29 in Hg
• SWP: 150 psi
