Apollo Valves 670750351532 77C20501A 77C-A Contractor 2-Piece Ball Valve 1 in

Product Description

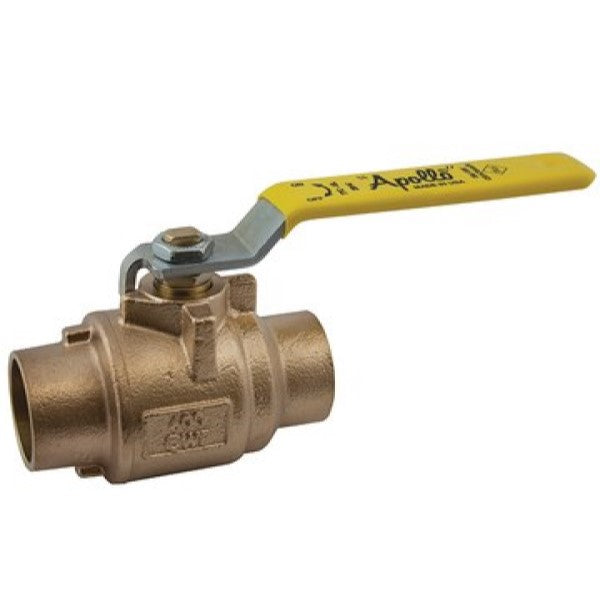

The APOLLO VALVES 670750351532 77C20501A 77C-A Contractor 2-Piece Ball Valve features a bronze body and full port design. This 1-inch ball valve is suitable for water applications with a pressure rating of 600 psi CWP and a temperature rating of 450 deg F. It is 100% factory tested and features an adjustable stem packing.

• Blow-out proof stem design
• Full port solid ball design
• Adjustable stem packing
• 100% factory tested

Product Highlights

The APOLLO VALVES ball valve is ideal for plumbing and industrial applications requiring a reliable shutoff with a full port design.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750351532
• Country of Origin: US

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• Country of Origin: US
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 3.81 in
• Media: Water
• Mfg Standards/Approvals: ASTM B16 Stem, ASTM B584 Retainer, CRN OC10908.5C, IAPMO R and T/UPC IGC Z1157, ISO 9001:2008 Registered, MSS SP-110
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 77C-A Contractor
• Softgoods Material: RPTFE Stem Packing Seat
• Temperature Rating: 450 deg F
• Top to Inlet Center: 2.19 in
• Trim Material: Brass
• Package Weight: 1.51 lb
• Vacuum service to 29 in Hg: None
