Apollo Valves 670750351525 77C-A 2-Piece Ball Valve 3/4 in Solder (77C20401A)

Product Description

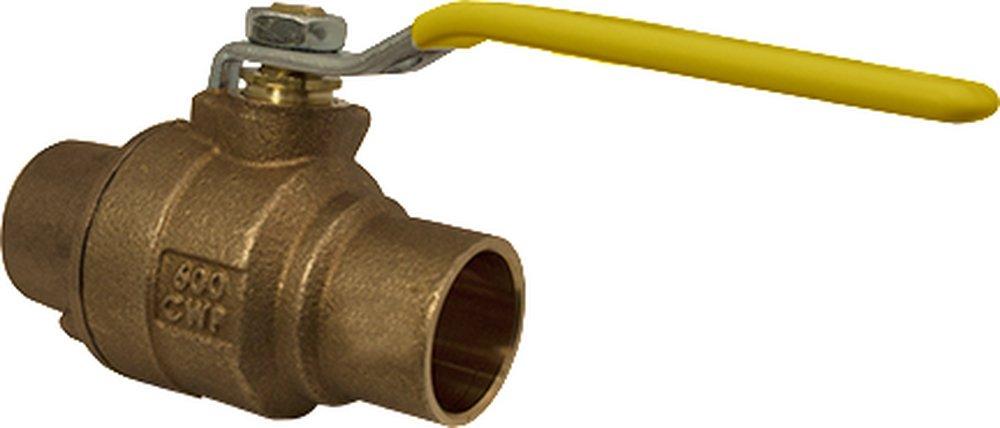

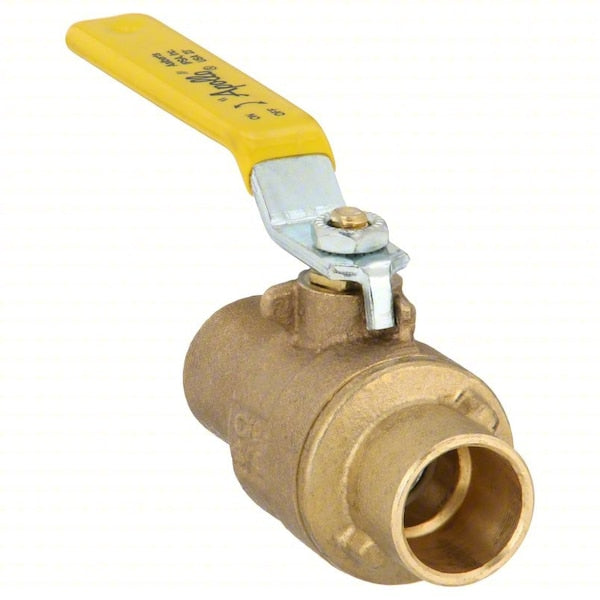

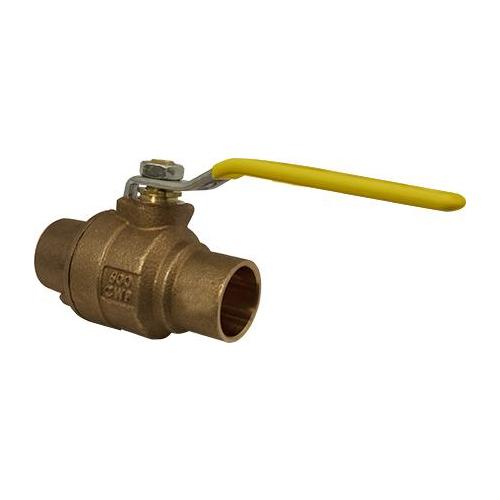

Apollo Valves 670750351525 (77C20401A) is a two-piece, 3/4 in nominal solder-end ball valve with a dezincification-resistant bronze body, full-port chrome-plated brass ball and RPTFE seats. The valve is lever operated with a blowout-proof stem and adjustable stem packing, rated to 600 psi cold working pressure and temperatures up to 450 deg F, and suitable for water, steam and vacuum service.

• Full-port bronze body with chrome-plated brass solid ball and RPTFE seats for true full-flow performance
• Rated 600 psi CWP, 150 psi steam working pressure, temperature range -20 to 450 deg F, and vacuum service to 29 in Hg
• Two-piece solder-end construction, lever-operated actuator, blowout-proof stem and adjustable stem packing

Product Highlights

3/4 in solder full-port bronze ball valve; 600 psi CWP; -20 to 450 deg F; RPTFE seats; lever operated; vacuum and steam service capable.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750351525
• Country of Origin: United States

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: 77C20401A
• Provided MPN/Identifier: 670750351525
• Series: 77C-A
• Type: 2-Piece Ball Valve
• Nominal Size: 3/4 in
• End Style: Solder (Sweat)
• Body Material: Dezincification-resistant bronze
• Ball Material: Chrome-plated brass
• Seat Material: RPTFE / PTFE
• Softgoods Material: RPTFE
• Port Type: Full port
• Operator Type: Lever operated
• Actuator Type: Manual lever
• Pressure Rating (CWP): 600 psi
• Maximum Steam Pressure (WSP): 150 psi
• Temperature Range: -20 to 450 deg F
• Vacuum Service Rating: 29 in Hg
• Inlet to Outlet Length: 3.2 in
• Top to Inlet Center: 1.91 in
• Overall Length: 3.2 in
• Handle Material: Zinc-plated steel with vinyl grip
• Trim Material: Brass stem and RPTFE seat
• Stem: Blowout-proof, adjustable packing
• Cv: 36
• Weight: 0.91 lbs
• Country of Origin: United States
• Applications: Water, heating, cooling, steam, vacuum, HVAC
• Certifications and Standards: MSS SP-110; ASTM materials (ASTM B16, ASTM B584); IAPMO/cUPC listed; CRN; PROP65 noted
