Apollo Valves 670750351495 Ball Valve 1 1/2 Ips Full Port Lead Free Conbraco

Product Description

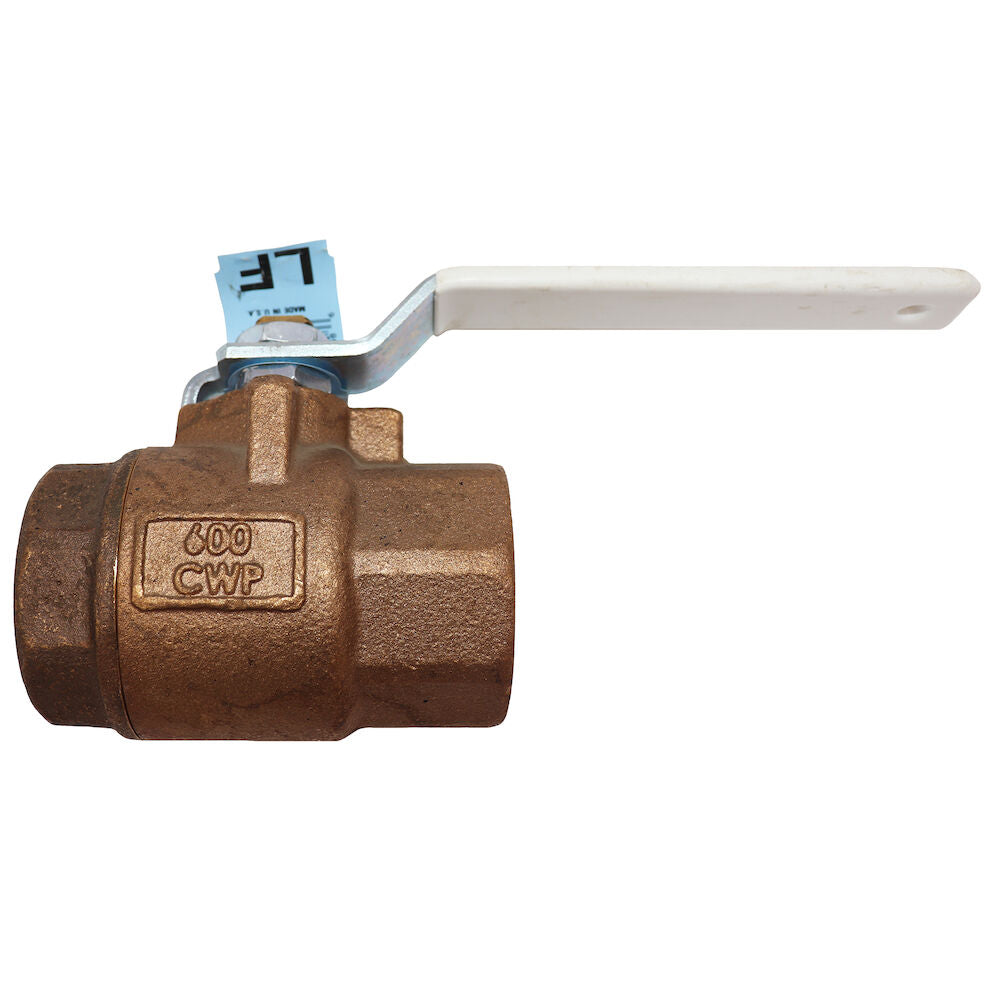

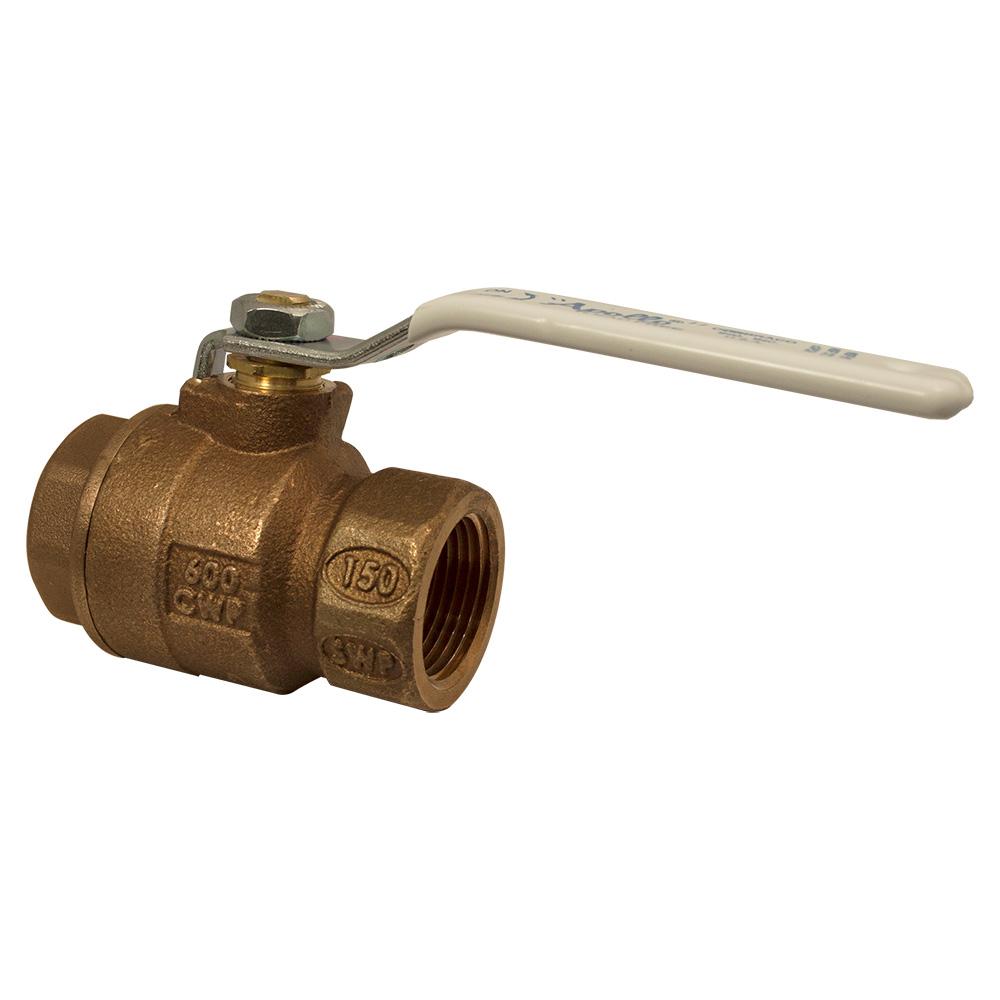

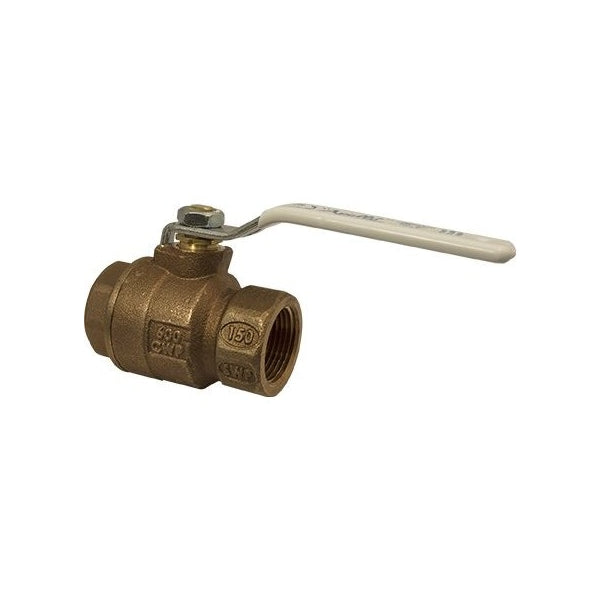

The APOLLO VALVES 670750351495 is a ball valve with a 1 1/2 Ips full port and is lead-free. It features a dezincification resistant bronze body, premium RPTFE seats and stem packing, and a solid ball design that delivers true full-port flow performance. It is suitable for media water and features a lever actuator.

• Genuine OEM
• Manual Two-Way Ball Valve
• Body Material Brass, Bronze, For Media

Product Highlights

This Apollo ball valve features a lead-free bronze body, RPTFE seats, and a full port design for optimal flow performance.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750351495
• Country of Origin: US

Technical Specifications

• Manufacturer (Brand): Apollo/Conbraco
• Manufacturer Item Number: 77CLF10701A
• UPC: 670750351495
• Package Quantity: Each
• Brand: APOLLO VALVES
• MPN: 77CLF10701A
• California Prop 65 Warning: N
• Country of Origin: US
• Type: Pipes, Valves & Fittings > Valves > Ball Valves
• Body Material: Bronze
• Domestic / Import: Domestic
• End Style: FNPT
• Nominal Size: 1-1/2 in
• Port Type: Full
• Softgoods Material: RPTFE
• Actuator Type: Lever
• Ball Material: Lead Free Chrome Plated Brass
• Inlet to Outlet Length: 4.11
• Manufacturer: Apollo Conbraco
• Manufacturer #: 77CLF-107-01-A
• Media: Water
• Series: 77CLF-A
• Temperature Rating: 450 deg F
• Top to Inlet Center: 2.9
• Trim Material: Brass Stem and RPTFE Seat
• Valve Structure: Two-Piece
• Pipe Size: 1 1/2 in
• Overall Length: 4.11 in
• Connection Size - Side 2: 1 1/2 in
• Connection Size - Side 1: 1 1/2 in
• Handle Length: 5.37 in
• Handle Height: 2.9 in
• Body Style: Inline
• Ball Port Style: Full Port
• Valve Ways: 2-Way
• For Media: Water
• Connection Type: FNPT x FNPT
• Item: Ball Valve
• Stem Material: PTFE
• Operating Temperature - Minimum: -20 Degrees F
• Operating Temperature - Maximum: 450 Degrees F
• Compliance: MSS SP-110
• Handle Type: Lever
• Seat Material: PTFE
• Standards: CRN, Material Quality C89836 (Lead-Free)
• Stem Type: Blowout Resistant
• Max. Pressure: 600 PSI CWP
• Handle Material: PVC, Zinc-Plated Steel
• Ball Valve Product Group: Manual
• Hose I.D.: 1 1/2 in
• Seal Material: RPTFE
• Coefficient of Volume (Cv): 177
• Maximum Pressure - Steam: 150 PSI WSP
• Cleaned and Bagged: Not Cleaned and Bagged
• Connection Gender - Side 2: Female
• Connection Gender - Side 1: Female
• Color - Valve Body: Bronze
• NSF Certifications for Food and Drinking Water: NSF 61
• 3-A Standard Compliance: Not Rated
• Connection Type - Side 2: NPT
• Handle - Locking: Non-Locking
• Maximum Pressure - Combustible Gas: Not Rated
• Color - Valve Handle: Yellow
• Vacuum Service Rating: 29 in Hg
• Connection Type - Side 1: NPT
• Valve Series: 77C
• Temp. Range: -20 Degrees to 450 Degrees F
