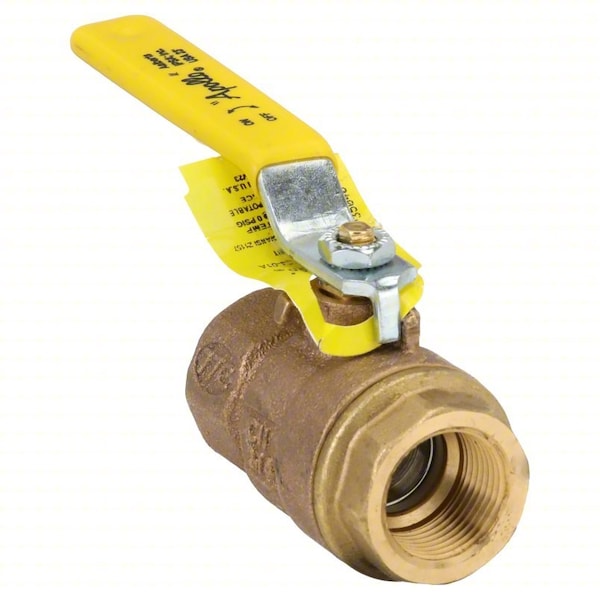

Apollo Valves 670750350405 Ball Valve 3/4 inches FNPT

Product Description

The APOLLO VALVES 670750350405 is a manual two-way ball valve with a bronze body, designed for steam media. Featuring a two-piece valve construction and a straight valve body style, this valve has a nominal size of 3/4 inches. It has a full port and a chrome-plated brass ball. The valve is suitable for applications requiring dezincification resistance.

• Ball Material: Chrome Plated Brass
• Body Style: Inline
• Ball Port Style: Full Port

Product Highlights

This ball valve features a bronze body, chrome-plated brass ball, and is designed for steam media with a full port.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750350405
• Country of Origin: United States

Technical Specifications

• MFR #: 77C10401A
• Zoro #: G3956830
• UPC #: 670750350405
• Country of Origin: United States
• Pipe Size: 3/4 in
• Overall Length: 2.67 in
• Handle Height: 1.91 in
• Connection Size - Side 2: 3/4 in
• Nominal Valve Size: 3/4 in
• Connection Size - Side 1: 3/4 in
• Handle Length: 3.82 in
• Ball Material: Chrome Plated Brass
• Body Style: Inline
• Ball Port Style: Full Port
• Valve Ways: 2-Way
• Valve Structure: Two-Piece
• For Media: Steam
• Connection Type: FNPT x FNPT
• Item: Ball Valve
• Stem Material: PTFE
• Standards: ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
• Max. Pressure: 600 PSI CWP
• Body Material: Bronze
• Handle Material: PVC, Zinc-Plated Steel
• Features: Dezincification Resistant
• Seat Material: PTFE
• Hose I.D.: 3/4 in
• Ball Valve Product Group: Manual
• Stem Type: Blowout Resistant
• Compliance: MSS SP-110
• Temp. Range: -20 Degrees to 450 Degrees F
• Handle Type: Lever
• Seal Material: RPTFE
• Coefficient of Volume (Cv): 36
• Operating Temperature - Maximum: 450 Degrees F
• Connection Gender - Side 1: Female
• 3-A Standard Compliance: Not Rated
• Maximum Pressure - Combustible Gas: Not Rated
• Maximum Pressure - Steam: 150 PSI WSP
• Operating Temperature - Minimum: -20 Degrees F
• Connection Type - Side 1: NPT
• Connection Type - Side 2: NPT
• Vented Ball Valve: Vented
• Vacuum Service Rating: 29 in Hg
• Cleaned and Bagged: Not Cleaned and Bagged
• Connection Gender - Side 2: Female
• Handle - Locking: Non-Locking
• Color - Valve Handle: Yellow
• Valve Series: 77C
