Apollo Valves 670750208119 2-Piece Ball Valve 3/8 in FNPT 77F-102-01

APOLLO VALVES
Brand: APOLLO VALVES
SKU: 670750208119
Availability: In Stock

Ships same day if ordered by 12 pm
$22.19
$22.19
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

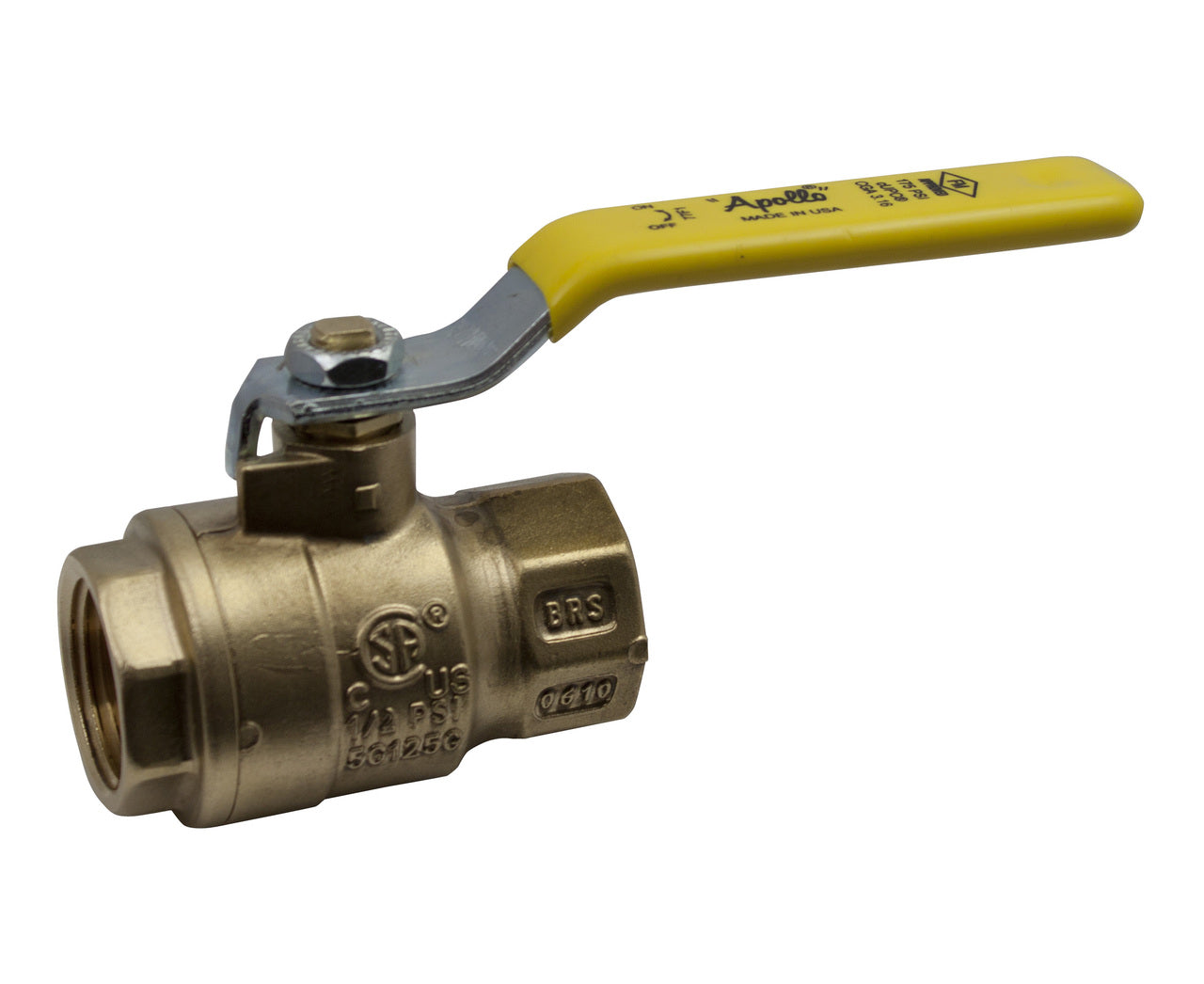

Apollo Valves 670750208119 (77F-102-01) is a 2-piece, full-port forged brass ball valve with 3/8 in female NPT ends. The valve uses a chrome-plated brass ball with RPTFE seats and stem packing, a brass stem and standard lever actuator. Performance ratings include 400 psi cold working pressure, 150 psi working steam pressure, temperature range 0 to 400°F, and vacuum service to 29 in Hg.

  • Full-port forged brass body with chrome-plated brass ball and RPTFE seats and packing
  • Rated to 400 psi CWP, 150 psi working steam pressure, and 0 to 400°F operating temperature
  • 3/8 in FNPT threaded ends, blow-out-proof stem, adjustable stem packing, standard lever actuator

Product Highlights

2-piece full-port forged brass ball valve, 3/8 in FNPT, RPTFE softgoods, 0–400°F, 400 psi CWP, vacuum to 29 in Hg

Product Information

Standard Information

  • Brand: APOLLO VALVES
  • Manufacturer Part Number: 670750208119
  • Country of Origin: United States
Technical Specifications
Brand
Apollo Valves
Manufacturer Part Number
77F-102-01
MPN (input)
670750208119
UPC
670750208119
Series
77F-100
Type
2-Piece ball valve
Category
Ball valves
Nominal Size
3/8 in
End Style
Female NPT (FNPT)
Port Type
Full port
Body Material
Forged brass
Ball Material
Chrome-plated brass
Trim / Stem Material
Brass stem
Seats and Packing
RPTFE (silicone-free)
Actuator Type
Standard lever (manual)
Valve Operation
Manual
Pressure Rating
400 psi cold working pressure (CWP)
Steam Rating
150 psi working steam pressure
Temperature Rating
0 to 400 deg F
Vacuum Rating
Vacuum service to 29 in Hg
Inlet to Outlet Length (in)
1.7
Top to Inlet Center (in)
1.61
Overall Length (in)
3.8
Width (in)
2.3
Depth (in)
2.3
Weight (lb)
0.3
Country of Origin
Made in USA
Approvals / Certifications
MSS-SP-110; IAPMO IGC-157; CGA 3.16; CGA CR91-002; ANSI Z21.15/CSA 9.1; ASME B16.44; ASME B16.33; FM 1140; UL; CSA
Additional Features
Blow-out proof stem; adjustable stem packing; silicone-free assembly; 100% factory tested
