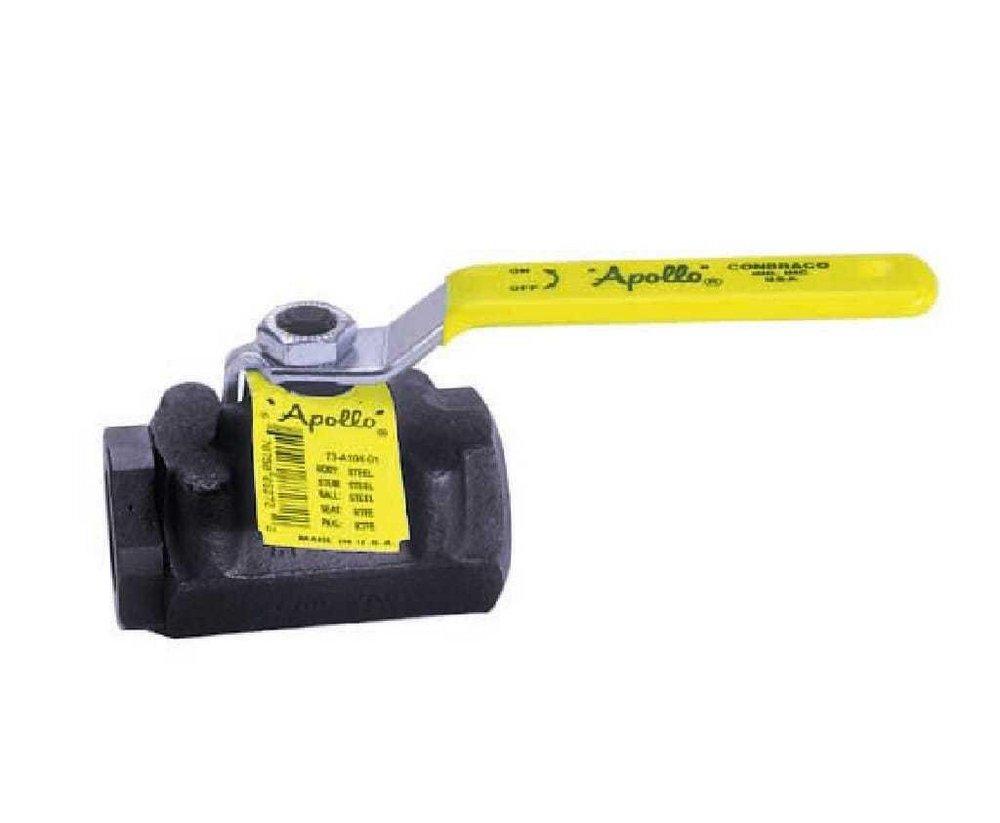

Apollo Valves 670750200359 1/4 in A105 carbon steel full port FNPT 2000# ball valve (1/4 in)

Product Description

The Apollo Valves 670750200359 is a 73A Series 1/4 in A105 carbon steel full port FNPT ball valve rated to 2000 psi. It has a forged two-piece A105 body with a 316 stainless steel ball and stem (NACE compliant), RPTFE seats, a blowout-proof stem, and an adjustable packing gland. The valve uses a lever handle with raised handle stops, measures 2-3/10 in in length, and is specified to MSS SP-110 and ASTM standards for threaded ball valves.

• Full/standard port 1/4 in FNPT ball valve with forged two-piece A105 carbon steel body rated to 2000 psi (2000#).
• 316 stainless steel ball and stem (NACE compliant) with RPTFE seats and blowout-proof stem construction.
• Lever handle operator with raised handle stops, adjustable packing gland, and zinc phosphate corrosion protection.

Product Highlights

73A Series 1/4 in FNPT ball valve; forged A105 body; 316 SS ball and stem; RPTFE seats; 2000 psi rating.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750200359

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: 670750200359
• Series: 73A Series
• UPC: 670750200359
• Valve Size: 1/4 in
• Material: Carbon Steel
• Material Type: A105
• Valve Type: Ball Valve
• Valve Body Style: 2 piece
• End Connections: FPT (FNPT)
• Valve Port Opening: Full/Standard Port
• Valve Operator: Lever Handle
• Valve Stem: Blowout-proof
• Ball Material: 316 stainless steel
• Stem Material: 316 stainless steel
• Valve Seat Material: RPTFE
• Maximum Pressure: 2000 psi (2000#)
• Pressure Class: 2000#
• Length: 2.3 in
• Standards: MSS SP-110
• Coating/Finish: Zinc phosphate corrosion protection
• NACE Compliance: 316 stainless steel ball and stem are NACE compliant
• FM Approved: No
• IAPMO Listed: No
• NSF Certified: No
• UL Listed: No
• Features: Forged construction, raised handle stops, adjustable packing gland, zinc phosphate protection, RPTFE seats
