Product Description

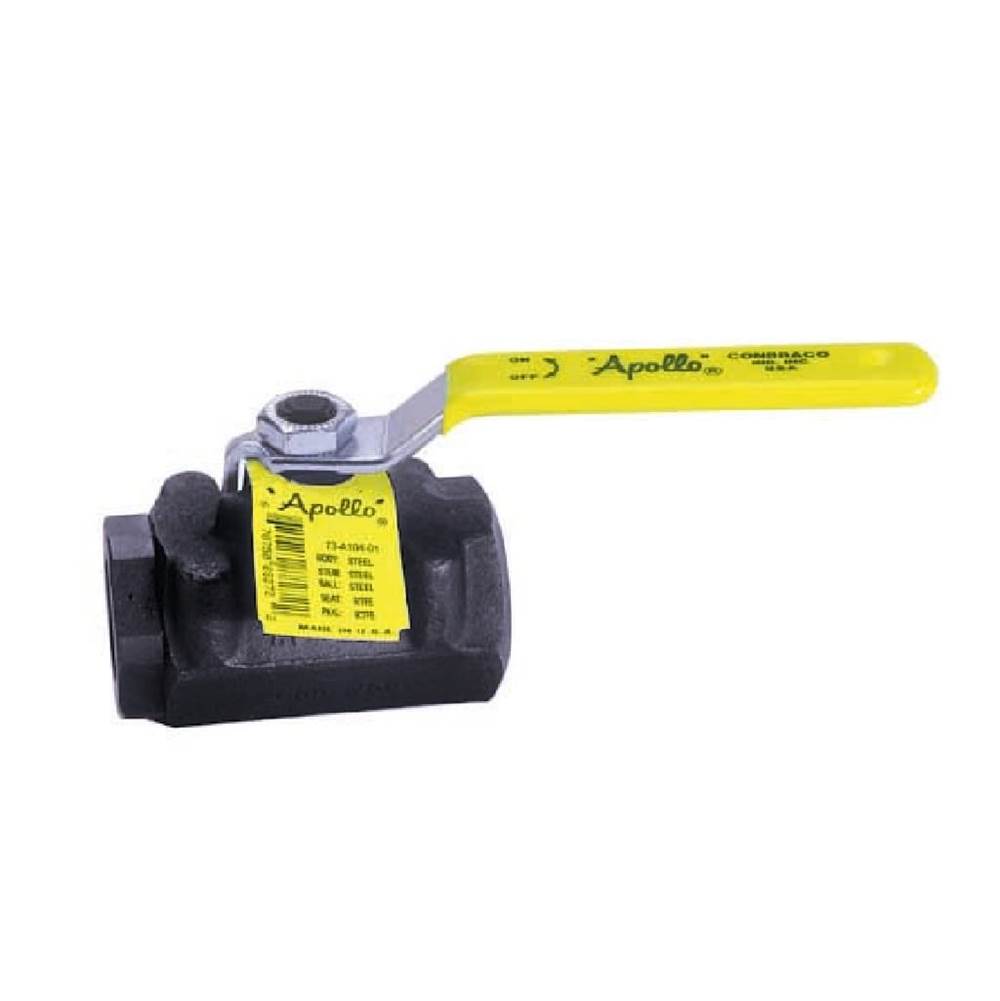

The APOLLO VALVES 670750176968 73A-144-27-A series is a 2-piece ball valve with a 3/4" nominal size and FNPT end style. Constructed with a forged carbon steel body, 316 stainless steel ball and stem, and RPTFE/MPTFE softgoods. Suitable for heating, cooling, steam, compressed air, and vacuum applications.
- Stainless steel latch-lock lever and nut
- Blow-out proof stem
- Zinc phosphate corrosion protection
- Adjustable Packing Gland
Product Highlights
This Apollo ball valve features a standard port, raised handle stops, and adjustable packing gland for reliable performance.
Product Information
Standard Information
-
Brand: APOLLO VALVES
-
Manufacturer Part Number: 670750176968
-
Country of Origin: USA
Technical Specifications
-
Body Material: Forged Carbon Steel
-
Domestic / Import: Domestic
-
End Style: FNPT
-
Nominal Size: 3/4 in
-
Port Type: Standard
-
Softgoods Material: RPTFE/MPTFE
-
Actuator Type: Latch-Lock Lever
-
Ball Material: 316 Stainless Steel
-
Inlet to Outlet Length: 3.07
-
Manufacturer: Apollo Conbraco
-
Manufacturer #: 73A-144-27-A
-
Series: 73A-140
-
Top to Inlet Center: 2.07
-
Trim Material: 316 Stainless Steel Stem and RPTFE Seat
-
Type: 2-Piece
-
Product Type: Ball Valve
-
Material: Steel
-
Shape: Straight
-
Applications: Heating, Cooling, Steam, Compressed Air, Vacuum
-
Approvals: CRN, Made in USA, Build America Buy America (BABA) Act, American Iron and Steel (AIS), Buy American Act (BAA)
-
Lockable: Yes
-
Operation: Handle
-
Segments: Commercial Building, Industry
-
Style: 2-Part
