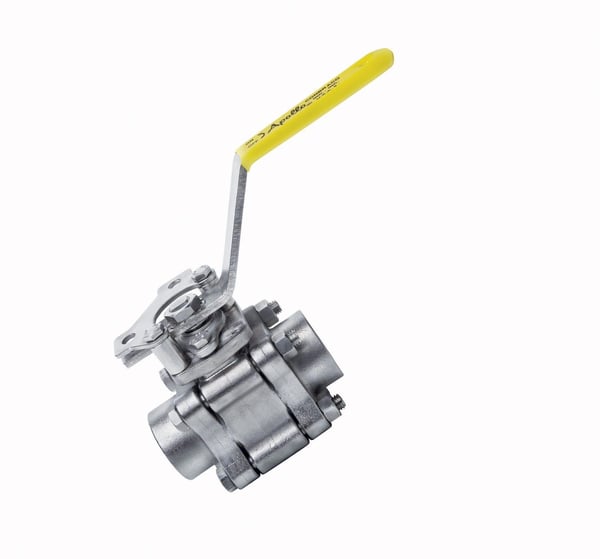

Apollo Valves 670750059827 86A10301 3-Piece Ball Valve 1/2 in Nominal

Product Description

The APOLLO VALVES 670750059827 86A10301 is a 3-Piece Ball Valve with a 1/2 in Nominal size. It features a stainless steel body and PTFE/RPTFE softgoods. Suitable for use with water, this valve is designed with a lever handle actuator and a full port for efficient flow. It adheres to ASTM A351 CF8M Valve Body standards.

• Stainless steel trim and hardware
• Swing out center section
• Pressure balanced solid ball

Product Highlights

This Apollo ball valve features stainless steel construction, a full port design, and is suitable for water applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 670750059827
• Country of Origin: United States

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: 316 Stainless Steel
• Body Material: Stainless Steel
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2.8 in
• Media: Water
• Nominal Size: 1/2 in
• Orifice Size: 1/2 in
• Port Type: Full
• Pressure Rating: 1500 psi CWP
• Series: 86A-100
• Softgoods Material: PTFE/RPTFE
• Temperature Rating: -50 to 500 deg F
• Top to Inlet Center: 3.02 in
• Trim Material: Stainless Steel
• Type: 3-Piece
• Includes: Enclosed Fastener
• Standards and Approvals: ASTM A351 CF8M Valve Body, ASTM A276 316SS Ball/Stem, MSS SP-110, NACE MR0175 (2000)/MR0103 (2012), NPT Per ASME B1.20.1, MSS SP-25, PROP65: Cancer and Reproductive Harm
• Application: compressed air|natural gas
