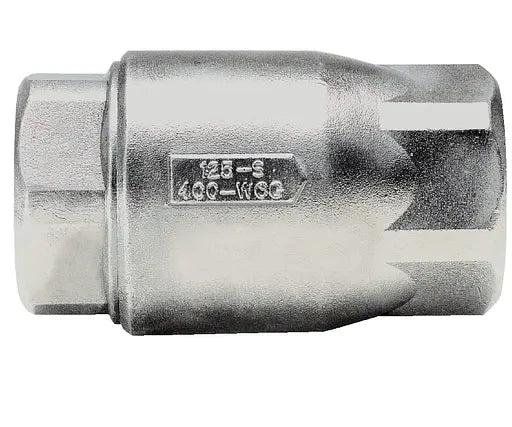

Apollo Valves 6250401 Stainless Steel Soft Seat Check Valve 3/4 inches (2 x FNPT)

Product Description

The Apollo Valves 6250401 check valves are suited for lower flow applications in tough industrial environments, since the seat is less prone to vibration. The stainless steel body provides lasting protection against reverse flow. Straight through flow minimizes velocity change. Made in the USA.

• No Radial Alignment Needed
• Bubble-Tight Shut-Off, Ideally Suited for Gaseous Service
• Fluorocarbon (Rubber) Soft Seat for Reduced Noise and Vibration

Product Highlights

The Apollo 6250401 check valve has a stainless steel body and check for lasting protection against reverse flow. It is spring loaded for fast seating action.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 6250401
• Country of Origin: United States

Technical Specifications

• DN1: 3/4"
• DN2: 3/4"
• Size: 3/4"
• Materials: stainless steel (ASTM A351 CF8M)
• Finishing: none
• Connection type: FPT - female thread conical (NPT), FPT - female thread conical (NPT)
• ETIM class: EC011469 Check valve
• Country of origin: United States
• Brand: Apollo
• Series: 62 Series Check Valves
• Product type: 6250X01
• UNSPSC: 40141622
• etim-class: EC011469 Check valve
• Housing material: Stainless steel
• Surface protection: Untreated
• Connections: Internal thread conical (NPT)
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Suitable for central heating water: No
• Certified according to SVGW for water: No
• Certified according to SVGW for gas: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Body Material: Stainless Steel
• Cracking Pressure: 1/2 PSI
• Connection Type: NPT
• Max. Pressure: 400 PSIG
• Temperature Range: 100F to 350F
• Category: Check Valve
• Flow Rate: 4.78 gpm
