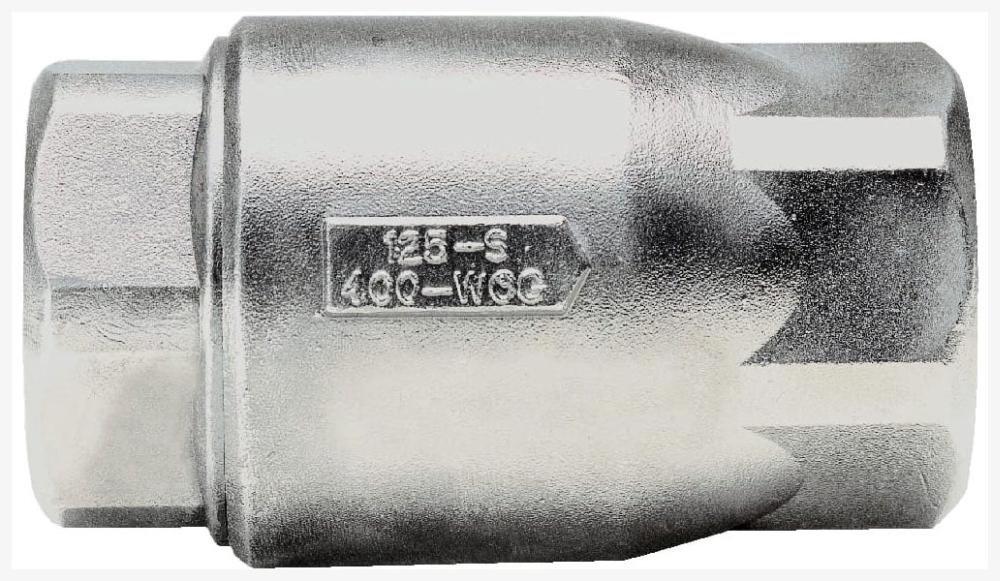

Apollo Valves 6210501 62-100 Series 1 Inch Stainless Steel FNPT Check Valve

Product Description

The Apollo Valves 62-100 Series 1 Inch Stainless Steel FNPT Check Valve, model 6210501, is engineered for robust performance in corrosive environments. Its design is ideal for chemical processing, pulp, and paper industries, providing reliable prevention against reverse flow.

• Constructed with ASTM A-351 cast stainless steel for enhanced durability.
• Features a RPTFE ball check for swift seating action and reliable flow control.
• Optimized for minimal pressure loss through a straight-through flow design.

Product Highlights

This check valve features FNPT threads ensuring tight seals and easy installation without the need for radial alignment. It is rated for 400 psig cold working pressure and 125 psig steam working pressure, making it suitable for a wide range of industrial applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 6210501

Technical Specifications

• Material: Stainless Steel
• Connection Size: 1 inch
• Connection Type: FNPT
• Pressure Rating: 400 psig CWP, 125 psig SWP
• Weight: 1.45 lbs
• Dimension: 3-1/2 in W x 1.93 in H
• Flow Co-Efficient: 6 Cv
