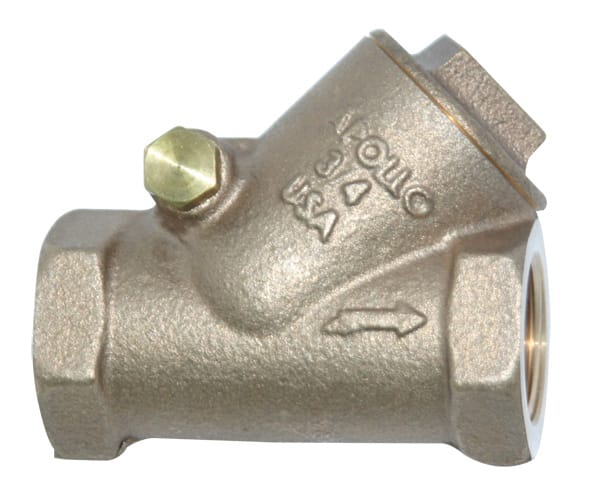

Apollo Valves 61Y19301 Y-Pattern Swing Check Valve 1/2 inches FNPT

Product Description

The APOLLO VALVES 61Y19301 swing check valve provides a cost-effective alternative to globally sourced check valves. These valves are cast, machined, assembled, and tested in South Carolina. The swing check can be installed in either horizontal or vertical lines with upward flow and features a renewable bronze seat disc.

• 1/2" FNPT x FNPT Connection
• Renewable Bronze Seat Disc
• Dezincification Resistant

Product Highlights

Made in the USA, this bronze swing check valve is factory tested and ARRA compliant.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 61Y19301
• Country of Origin: USA

Technical Specifications

• Connection Method: Threaded
• Size: 1/2"
• Connection Type: FNPT x FNPT
• Material: Bronze
• materials: bronze
• finishing: none
• product group: valves ()
• ETIM class: EC010151 Pipeline strainer
• country of origin: United States
• brand: Apollo
• series: 61Y Series Check Valves
• product type: 61Y19X01
• unsps: 40141634
• Suitable for medium: Liquid
• Housing material: Bronze
• Surface protection: Untreated
• Connection: Internal thread conical (NPT)
• KIWA certified: No
• Gastec QA mark: No
• Gastec QA - AR 214 (H2): No
• ASME: ASME B1.20.1
• ASTM: ASTM B-16, ASTM B-62
• Collection: 61Y Series
• End Connection 1: FNPT
• End Connection 2: FNPT
• End Connections: FNPT
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• MSS: MSS SP-80
• NSF Certified: No
• Origin: Domestic
• Pressure Class: 125#
• Recommended Valve Application: Heating System
• UL Listed: No
• UPC: 670750622762
• Valve Body Material: Bronze
• Valve Seat Material: Bronze
• Valve Size: 1/2 in
• Valve Type: Swing Check Valve
• End Style: Threaded
• Type: Check Valve
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Check Valves
• MPN: 61Y19301
• Nominal Size: 1/2 in
• Pressure Rating: 125 lb
• Body Material: Bronze
