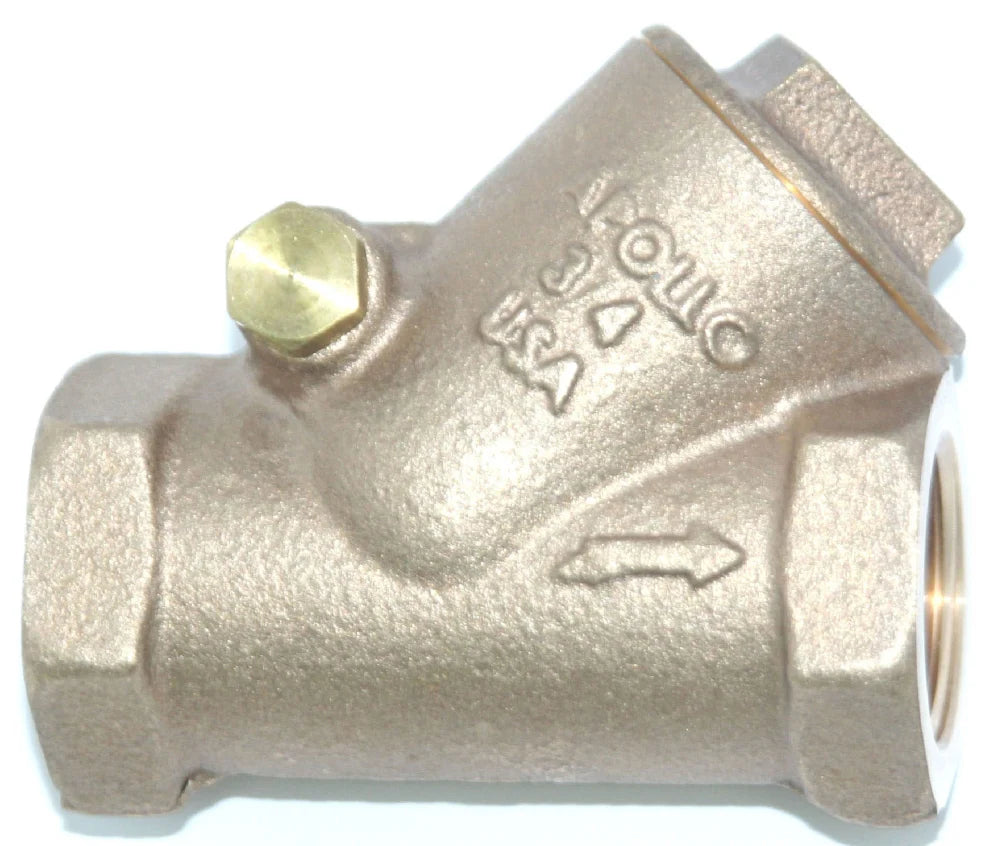

Conbraco 61Y-214-01 3/4 NPT x NPT 150 PSI SWP Check Valve

Product Description

The Conbraco 61Y-214-01 is a three-fourth inch check valve designed for commercial applications. This valve features a swing design with a Y-pattern configuration. It includes top-quality ASTM B62 dezincification resistant bronze for durability. The end connections are threaded, allowing for quick installation. The valve operates efficiently within a pressure rating of one hundred fifty PSI SWP and three hundred PSI CWP. It is also compliant with various standards including ISO 9001 and ASME B1.20.1.

• Commercial application
• Threaded connection for easy installation
• Durable bronze construction

Product Highlights

Suitable for potable water use, this check valve is perfect for controlling flow in plumbing systems. The renewable bronze seat provides long-term reliability.

Product Information

Standard Information

• Manufacturer: Conbraco
• Part Number: 61Y-214-01

Technical Specifications

• Nominal Size: 3/4 Inch
• End Connection: Threaded x Threaded
• Body Material: ASTM B62 Bronze
• Temperature Rating: -20 to 406 Deg F
• Pressure Rating: 150 PSI SWP, 300 PSI CWP
• Flow Rate: 12 Cv
• Application: Commercial
• Applicable Standards: ISO 9001, ASME B1.20.1
