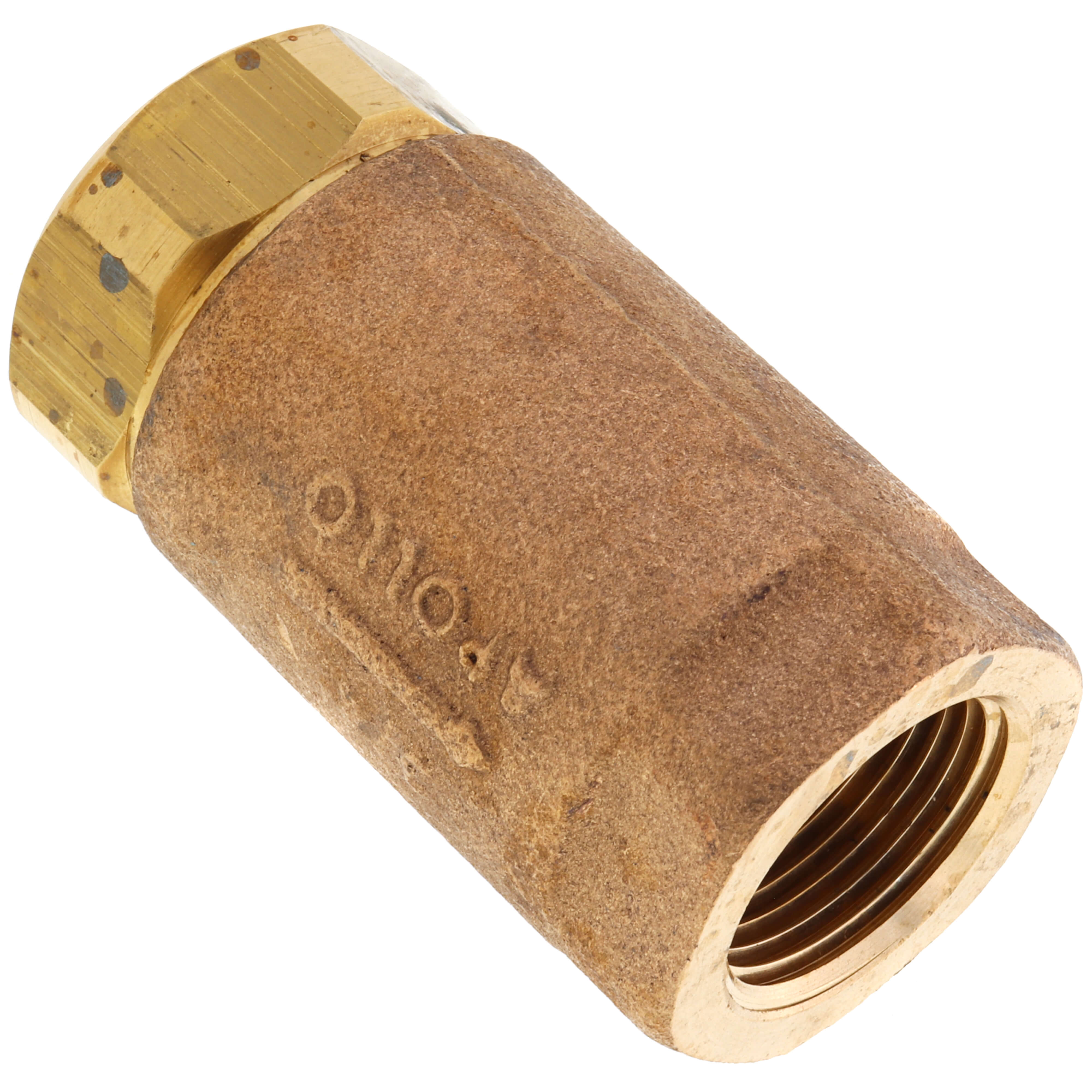

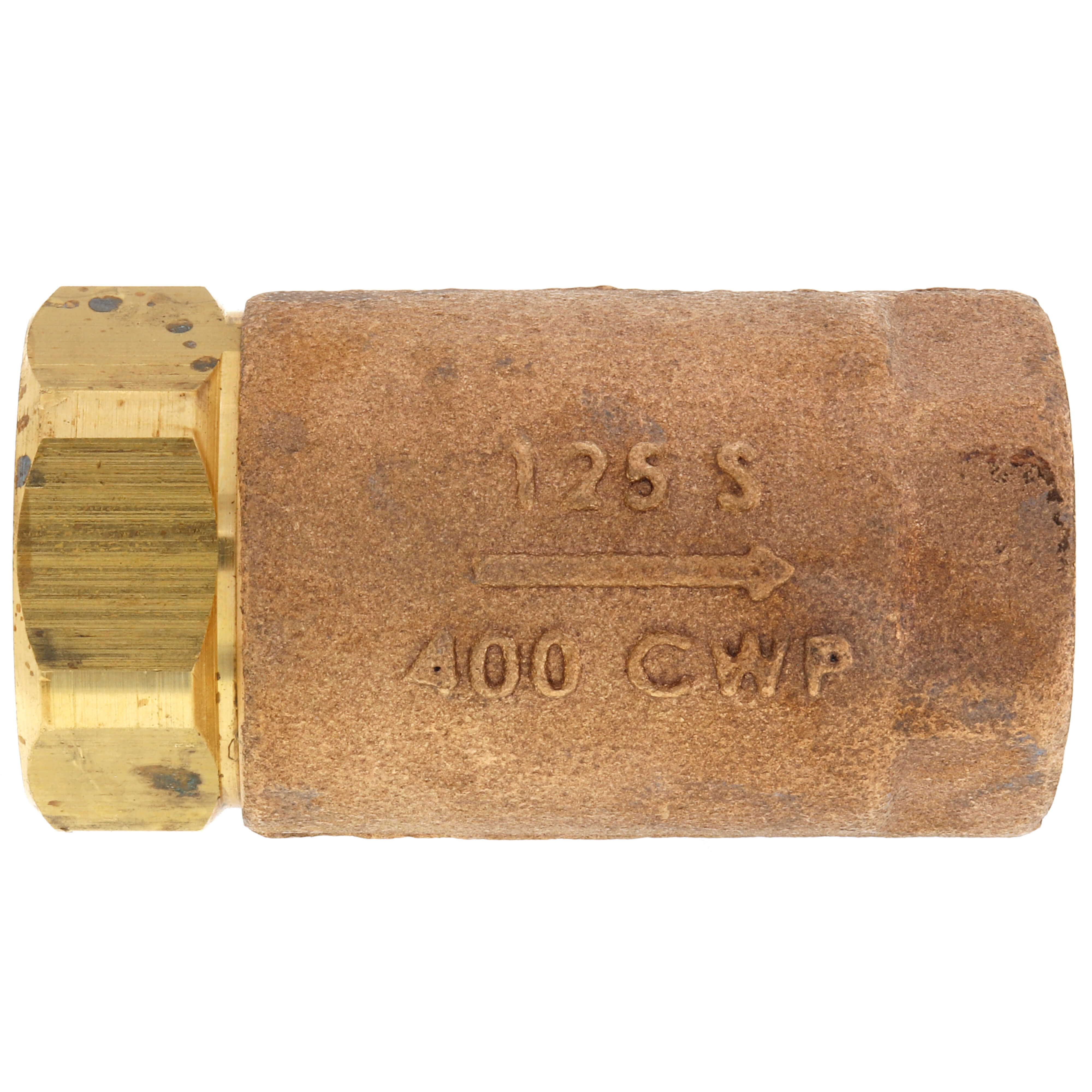

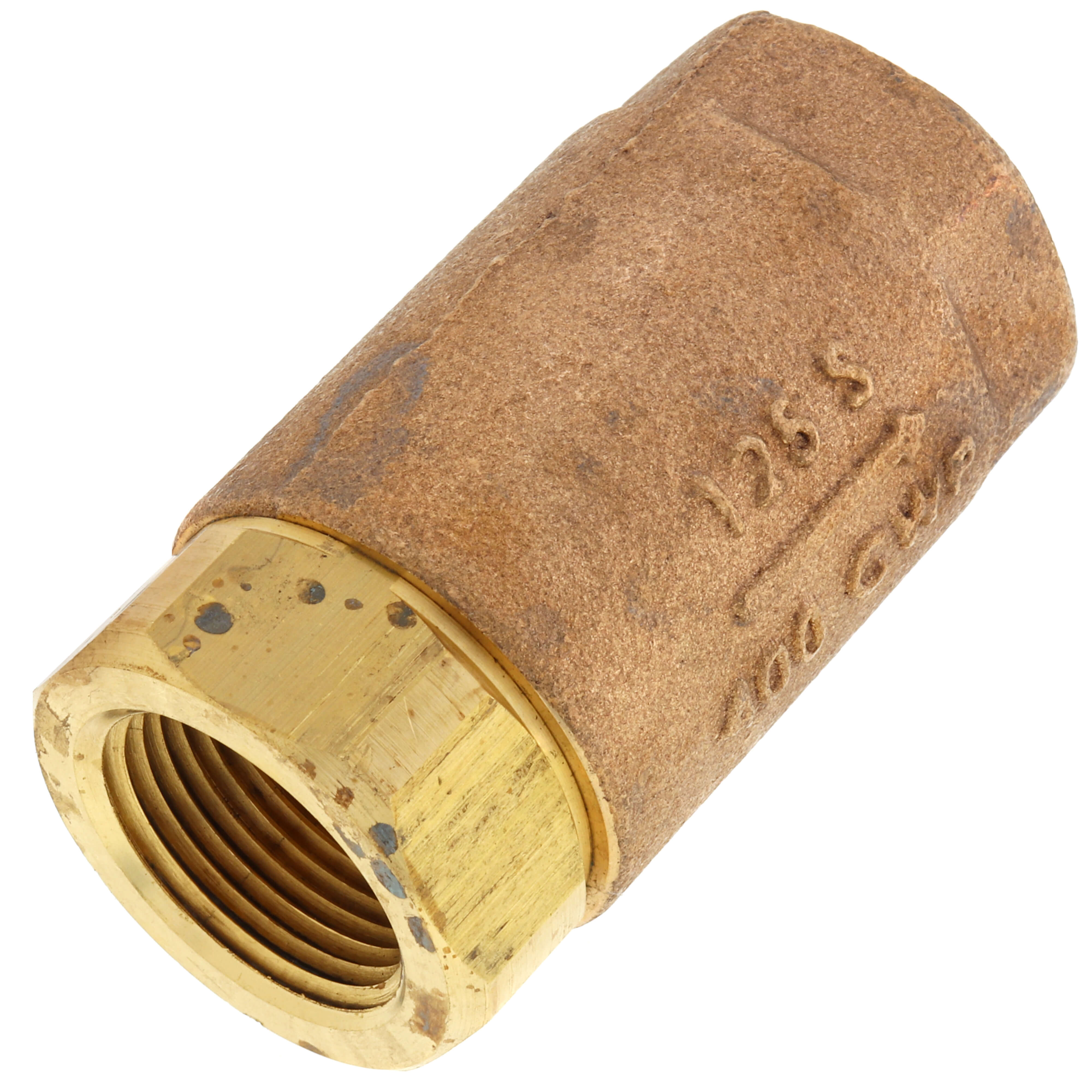

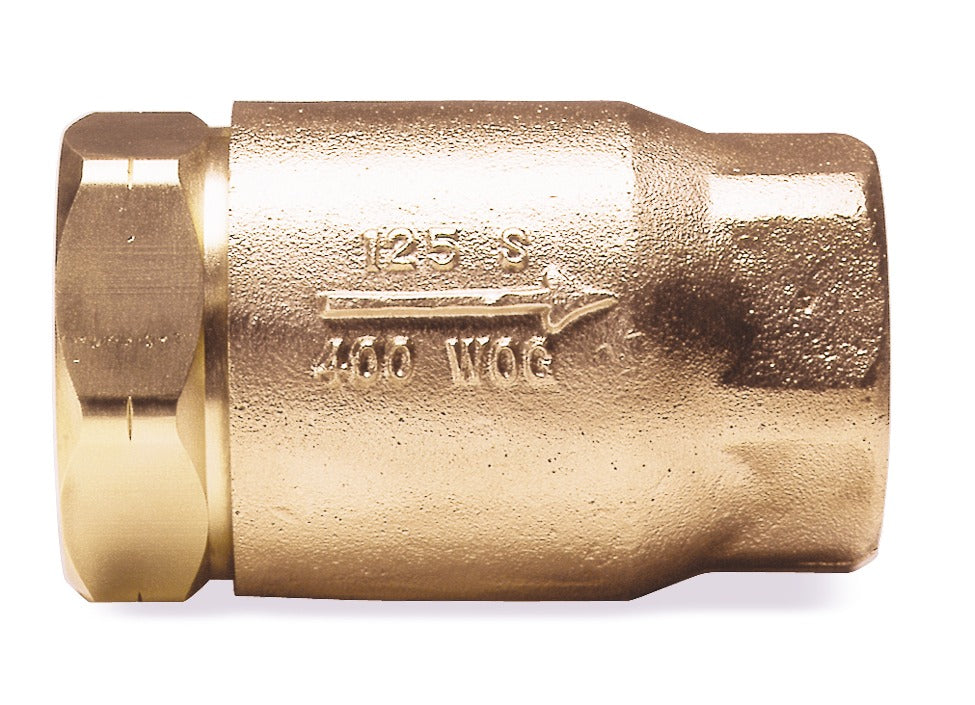

Apollo Valves 6150401 3/4 inches FNPT Soft Seat Bronze Spring Check Valve w/EPDM Seat

Product Description

The APOLLO VALVES 6150401 is a 3/4" FNPT soft seat bronze spring check valve with an EPDM seat, fabricated with stainless steel springs and elastomeric seats. It offers exceptional resistance to chemicals and corrosion and doesn't require radial alignment. It is ideally suited for gaseous service.

• Bubble-tight shutoff, ideally suited for gaseous service
• Straight-through design minimizes velocity changes
• NPT threaded; 400 psig WOG

Product Highlights

This bronze check valve provides reliable shut-off protection against reverse flow and is suitable for various applications, including hydronic heating and low flow systems.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 6150401
• Country of Origin: United States

Technical Specifications

• Product Type: Check Valve
• Size: 3/4"
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Material: Bronze
• Max. Pressure: 400 psi
• Max Temp: 250 F
• Seat: EPR/EPDM Rubber
• Spring: 316 Stainless Steel
• Guide Pin: 420 Stainless Steel
• End Style: Threaded
• Type: Ball Cone Check
• Series: 61-500
• Manufacturer: Aalberts Integrated Piping Systems
• MPN: 61-504-01
• Brand: APOLLO VALVES
