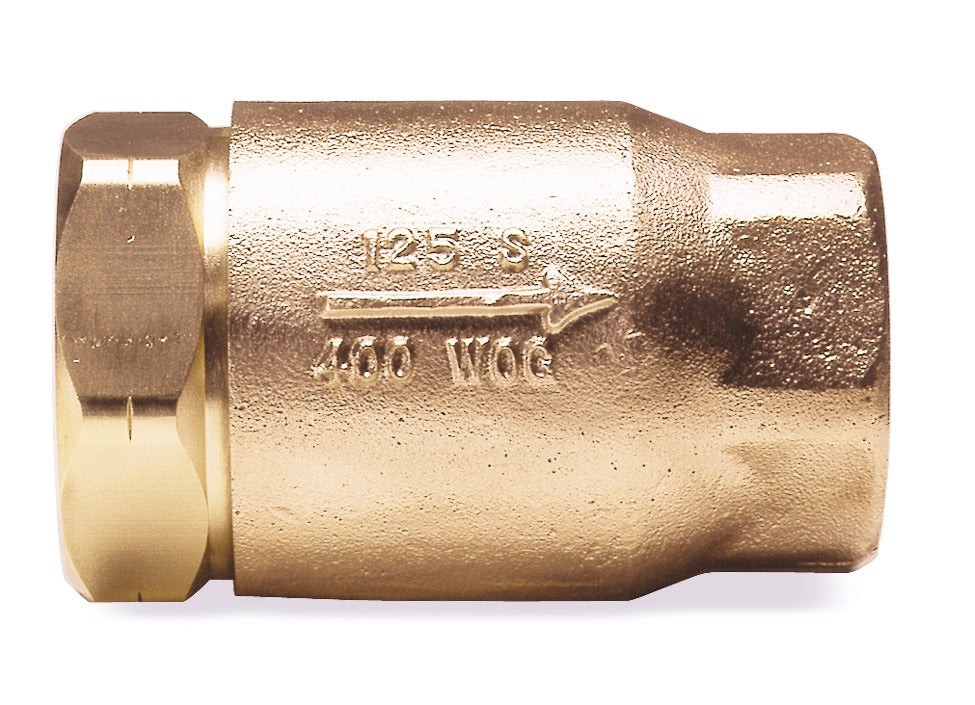

Apollo Valves 6150301 bronze in-line soft seat check valve 1/2 inches

Product Description

The Apollo Valves 6150301 soft seat check valve offers reliable tight shut-off protection against reverse flow and corrosion resistance. Ideally suited for hydronic heating and other low flow applications. The soft seat allows more resistance to vibration and may be installed in both horizontal and vertical upward flow applications. It has a 1/2" size and 1/2 psi cracking pressure.

• Bubble-Tight Shut-off, Ideally Suited for Gaseous Service
• EDPM Check Disc (61-500 Standard)
• Straight-Through Flow Minimizes Pressure Loss
• Made in the USA

Product Highlights

The Apollo 6150301 check valve provides superior shut-off with a straight-through flow design, minimizing pressure loss.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 6150301
• Country of Origin: United States

Technical Specifications

• article number with gtin: 6150301 (00670750632563)
• product number with gtin: 6150301 (00670750632563)
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• item group: 6150X01 6150X01 - Apollo Bronze In-Line Soft Seat Check Valve with Standard Configuration (2 x FNPT)
• size: 1/2"
• materials: bronze
• finishing: none
• connection type: FPT - female thread conical (NPT), FPT - female thread conical (NPT)
• product group: valves ()
• ETIM class: EC011469 Check valve
• country of origin: United States
• brand: Apollo
• series: 61 Series Check Valves
• product type: 6150X01
• unsps: 40141622
• Housing material: Bronze
• Surface protection: Untreated
• Connections: Internal thread conical (NPT)
• Suitable for central heating water: Yes
• End Style: Threaded
• Type: Ball Cone Check
• Category: Ball Cone Check Valves
• Condition: New
• MPN: 61-503-01
• Item: Check Valve
• Body Material: Bronze
• Port: N/A
• Connection Type: NPT
• Max. Pressure: 400 psi
• Max Temp: 250 F
• Seat: EPR/EPDM Rubber
• Spring: 316 Stainless Steel
• Guide Pin: 420 Stainless Steel
• ASTM: ASTM B-16, ASTM B-584
• Collection: 61-100 Series
• End Connection 1: FNPT
• End Connection 2: MNPT
• End Connections: FNPT x MNPT
• Installation Type: Horizontal Mount, Vertical Mount
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• Material: Bronze
• Maximum Temperature: 250
• Pressure Class: 400#
• Valve Body Material: Bronze
• Valve Body Style: Ball
• Valve Disc Material: PTFE
• Valve Size: 1/2 in
• Valve Type: Check Valve
