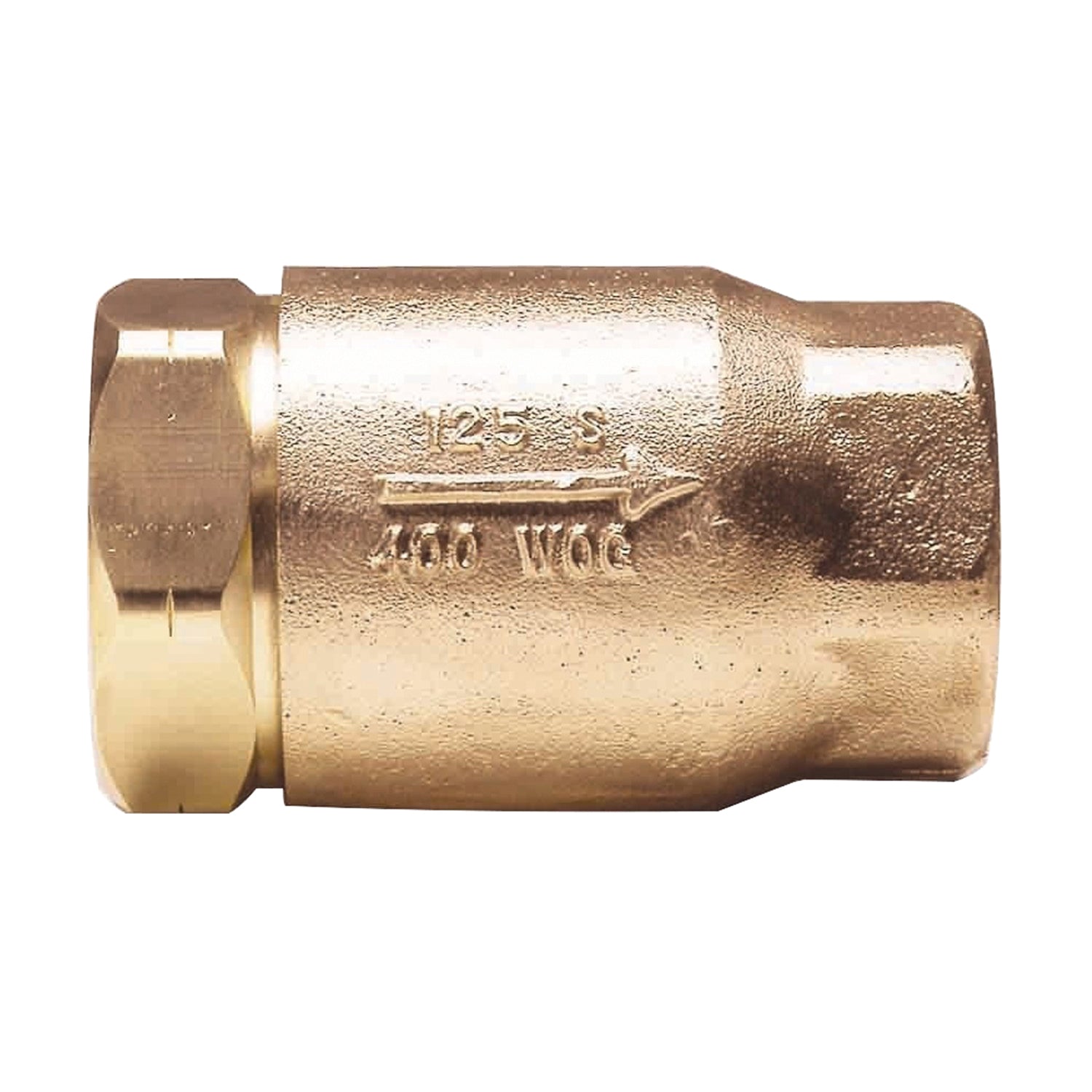

Apollo Valves 6110701 1-1/2 Inch Cast Bronze FNPT Check Valve

Product Description

The Apollo Valves 6110701 features a 1-1/2-inch cast bronze check valve designed for various commercial and light industrial applications. This valve prevents reverse flow and is suitable for water, oil, gas, and steam, ensuring smooth operation within pipelines.

• Prevents reverse flow
• Rating of 200 psi WOG
• Constructed from durable bronze

Technical Specifications

This valve offers reliable flow control solutions and ensures efficiency with its non-shock design and threaded ends. The robust build is compatible with applications involving saturated steam and chemical services. It is suitable for horizontal mounting and tested in accordance with MSS-SP-82 standards.

Product Highlights

The Apollo Valves 6110701 includes features for enhanced durability and performance. The spring-actuated mechanism ensures a tight shut-off with liquid media. The valve is 100% factory tested, providing assurance of quality.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: 61-100 Series
• MPN: 6110701

Technical Specifications

• Ball Material: RPTFE
• Connection Size: 1-1/2 inches
• Connection Type: FNPT
• Dimension: 4.94 inches L x 2.81 inches H
• Flow Co-Efficient: 65 Cv
• Material: Bronze
• Operator Type: Stainless Steel Spring Actuated
• Pressure Rating: 400 psi at 100 degrees F, 125 psi Steam at 350 degrees F
• Temperature Rating: 406 degrees F
• Material Specifications: ASTM B584, UNS C84400, ASTM B16
• Standards/Certifications: CRN 0C11218.5C certified, ARRA compliant
• Weight: 4.18 lbs
• Length: 3.95 inches
• Width: 5.95 inches
• Height: 3.1 inches
