Product Description

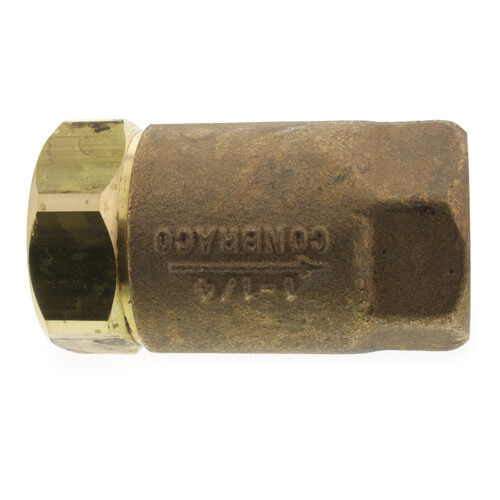

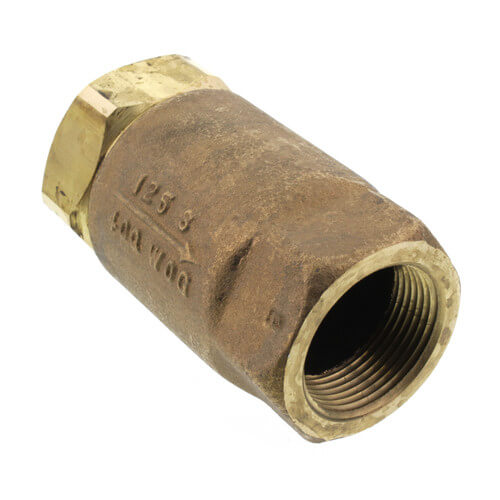

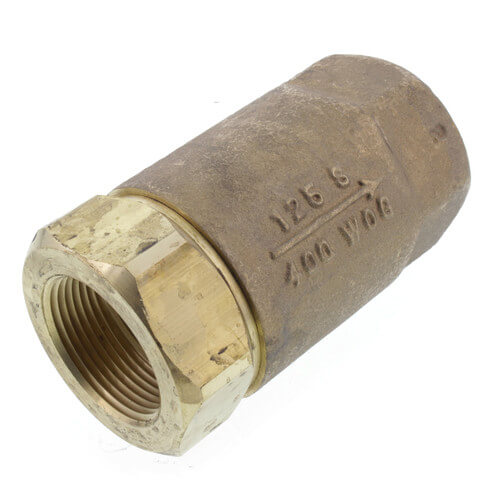

The Apollo Valves 6110601 is a 1-1/4 inch threaded bronze spring check valve. It features FNPT and MNPT inlet options. This valve is spring actuated, ensuring a tight shut-off with liquid media. Made from durable bronze, it is suitable for a variety of applications, including saturated steam and chemical service. The flow straight-through design enhances efficiency.
- FNPT and MNPT inlet options
- Spring actuated
- Tight shut-off with liquid media
Product Highlights
This check valve is ideal for broad applications such as steam systems and chemical services. It can be installed in both horizontal and vertical flow with upward flow. The valve is made in the USA and complies with ARRA standards.
Product Information
Standard Information
-
Brand: Apollo Valves
-
MPN: 6110601
Technical Specifications
-
Ball Material: RPTFE
-
Connection Size: 1-1/4 inch
-
Connection Type: FNPT
-
Dimension: 4.19 inches length x 2.37 inches height
-
Flow Co-Efficient: 44 Cv
-
Item Name: In-Line Ball Cone Check Valve
-
Material Specifications: ASTM B584, UNS C84400, ASTM B16
-
Material: Bronze
-
Model: 61-100
-
Operator Type: Stainless Steel Spring Actuated
-
Pressure Rating: 400 psi at 100 deg F, 125 psi Steam at 350 deg F
-
Series: 61
-
Stem Material: Brass
-
Temperature Rating: 406 deg F
-
Standards/Certifications: CRN 0C11218.5C certified, ARRA compliant
