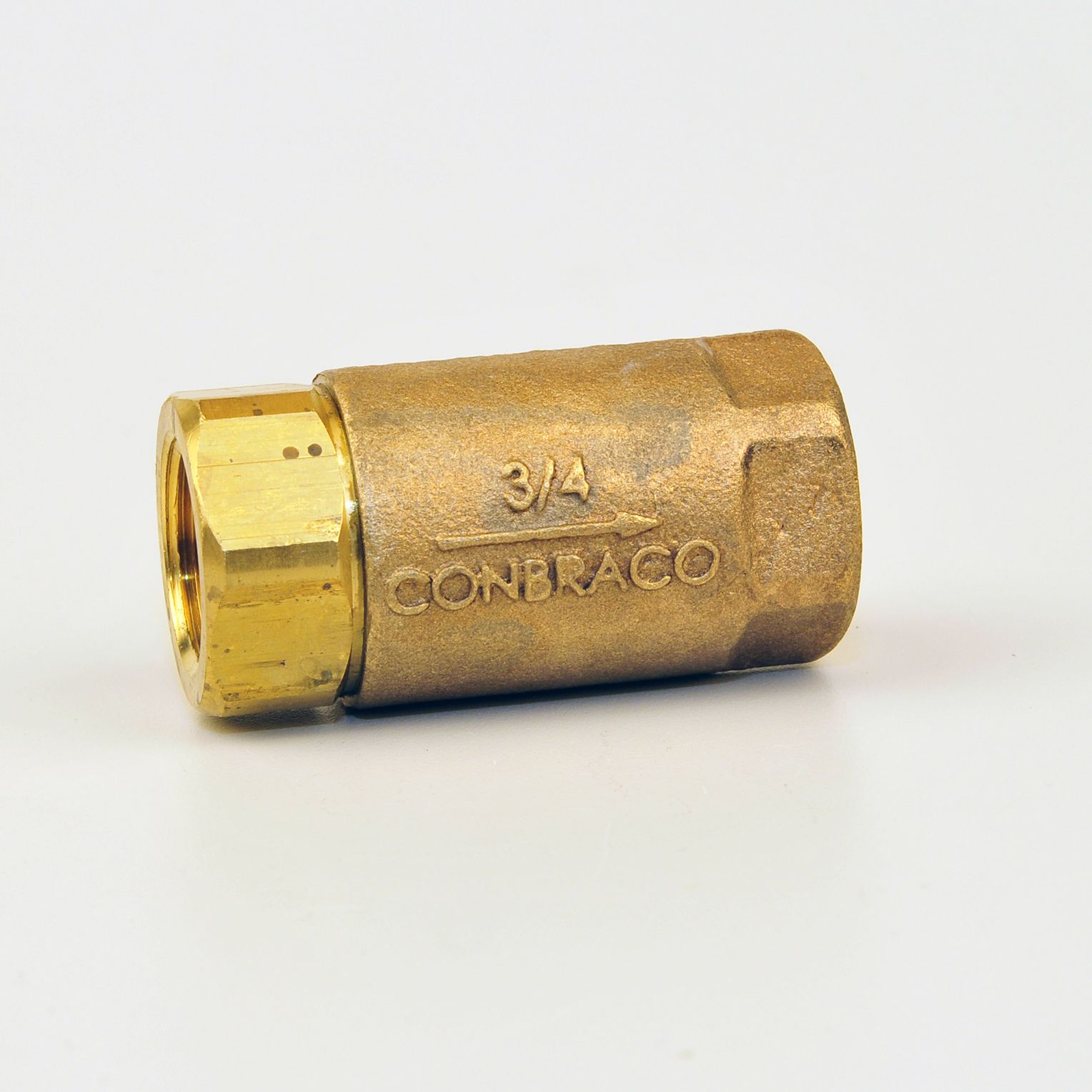

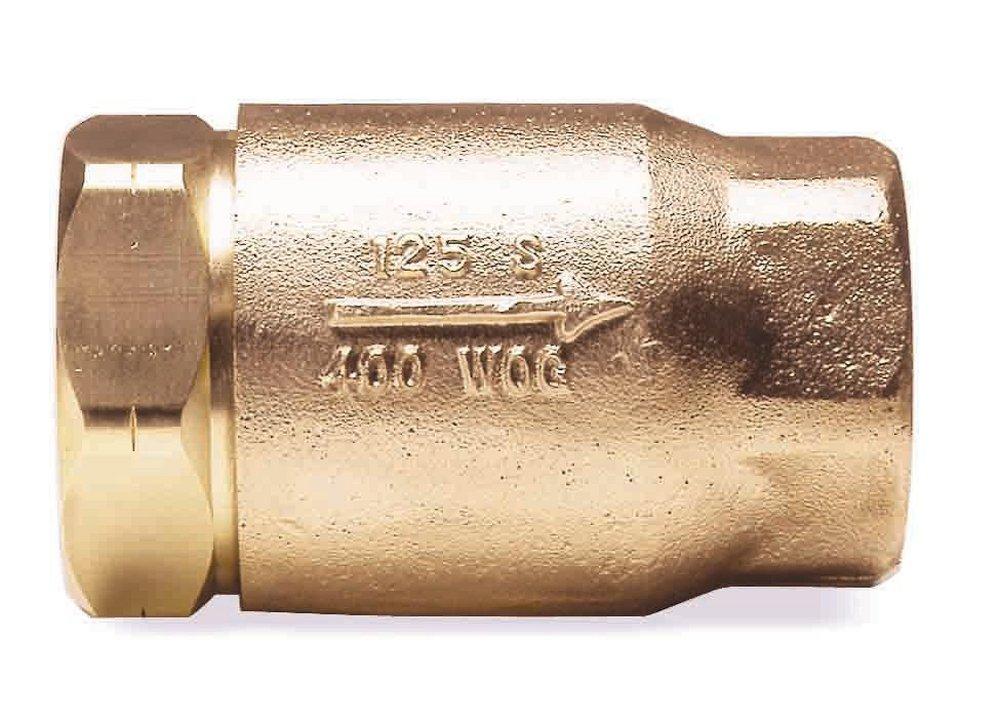

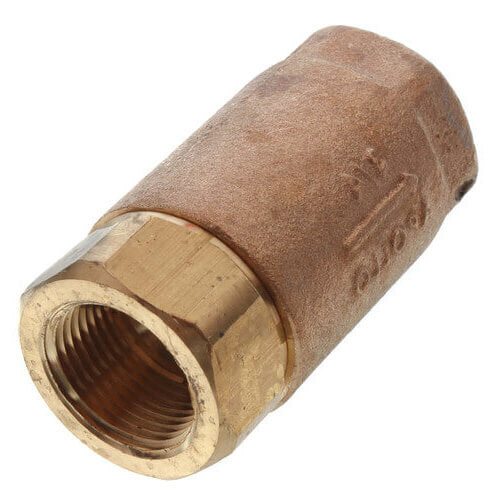

Apollo Valves 6110401 61-100 Series 3/4 in. Cast Bronze FNPT Check Valve

Product Description

The Apollo Valves 6110401 61-100 Series 3/4 in. Cast Bronze FNPT Check Valve is built for commercial and light industrial applications. This cast bronze valve ensures reliable performance for water, oil, gas, and steam systems.

• For horizontal mounting only
• Threaded ends comply with ANSI B2.1 3/8 - 4
• Tested in accordance with MSS-SP-82

Product Highlights

This check valve is suited for a wide range of applications, including saturated steam and chemical service. It ensures no reverse flow and can be installed in both horizontal and vertical flows (upward flow only). Not for use with reciprocating air compressor service.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 6110401

Technical Specifications

• Size: 3/4 in
• Material: Bronze
• Max Temperature: 406 degrees Fahrenheit
• Max Working Pressure: 400 PSI
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Weight: 0.78 lbs
• Shipping Dimensions: 3 inches (Depth) x 1.5 inches (Width) x 1.5 inches (Height)
