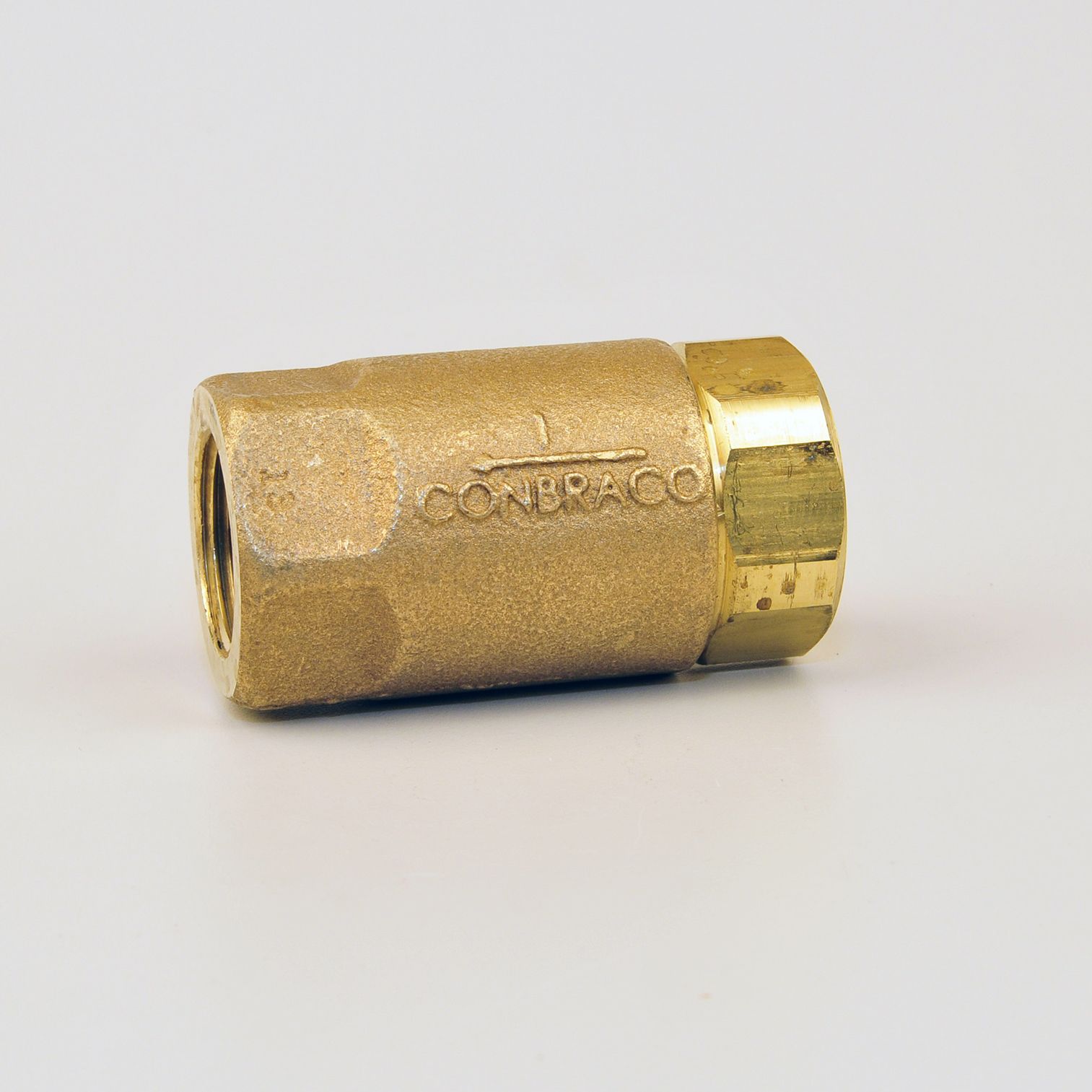

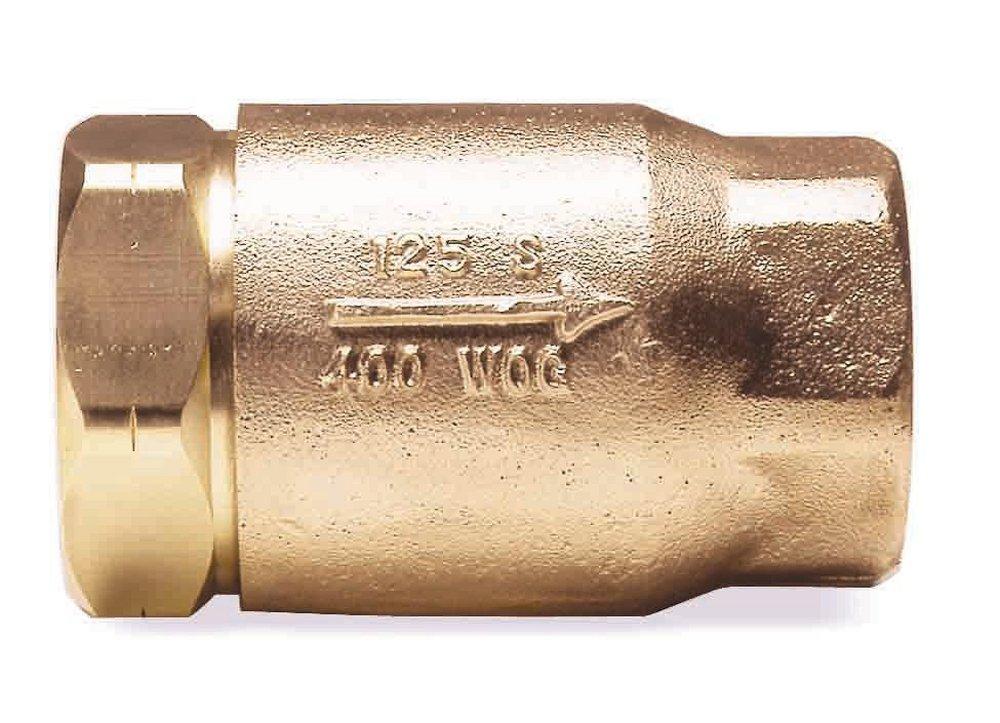

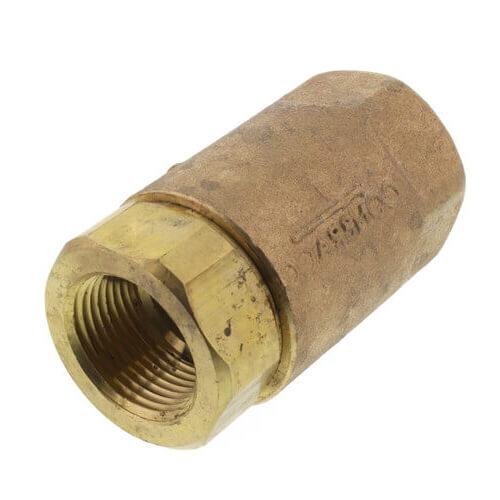

Apollo Valves 61-105-01 1 Inch FNPT Check Valve Bronze

Product Description

The Apollo Valves 61-105-01 1 inch FNPT Check Valve is constructed from bronze, designed for a wide range of applications, including saturated steam and chemical services. This check valve can be installed in both horizontal and vertical flow (with upward flow) and features a swing type mechanism for reliable performance.

• Suitable for water, oil, gas, and steam
• Threaded ends comply with ANSI B2.1 standards
• Tested in accordance with MSS-SP-82

Product Highlights

This 1 inch FNPT check valve is crafted with a bronze body, offering excellent corrosion resistance and durability. Ideal for commercial and light industrial applications.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 61-105-01

Technical Specifications

• Connection Size: 1 inch
• Connection Type: FNPT x FNPT
• Material: Bronze
• Pressure Rating: 400 psi at 100 degrees F, 125 psi steam at 350 degrees F
• Max Temp: 406 degrees F
• Flow Co-Efficient: 6 Cv
• Cracking Pressure: 0.5 psi
• Standards/Certifications: CRN 0C11218.5C certified, ARRA compliant
