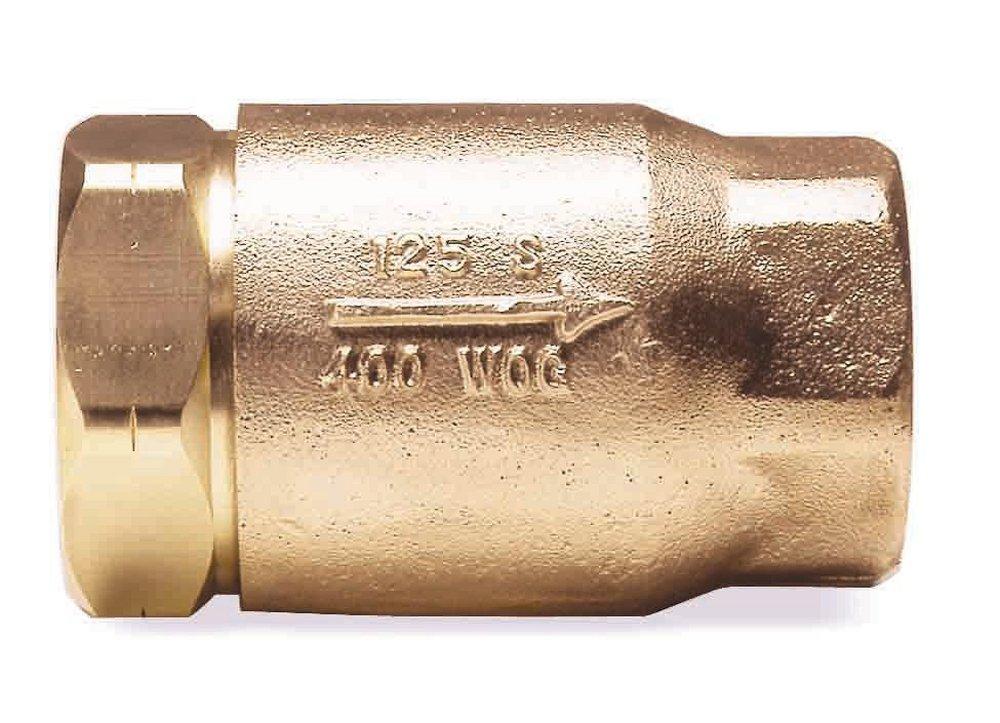

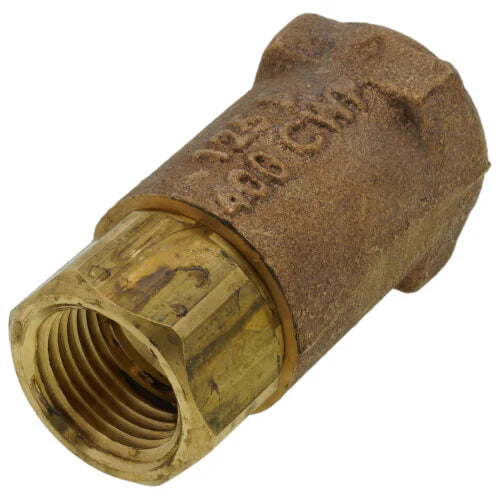

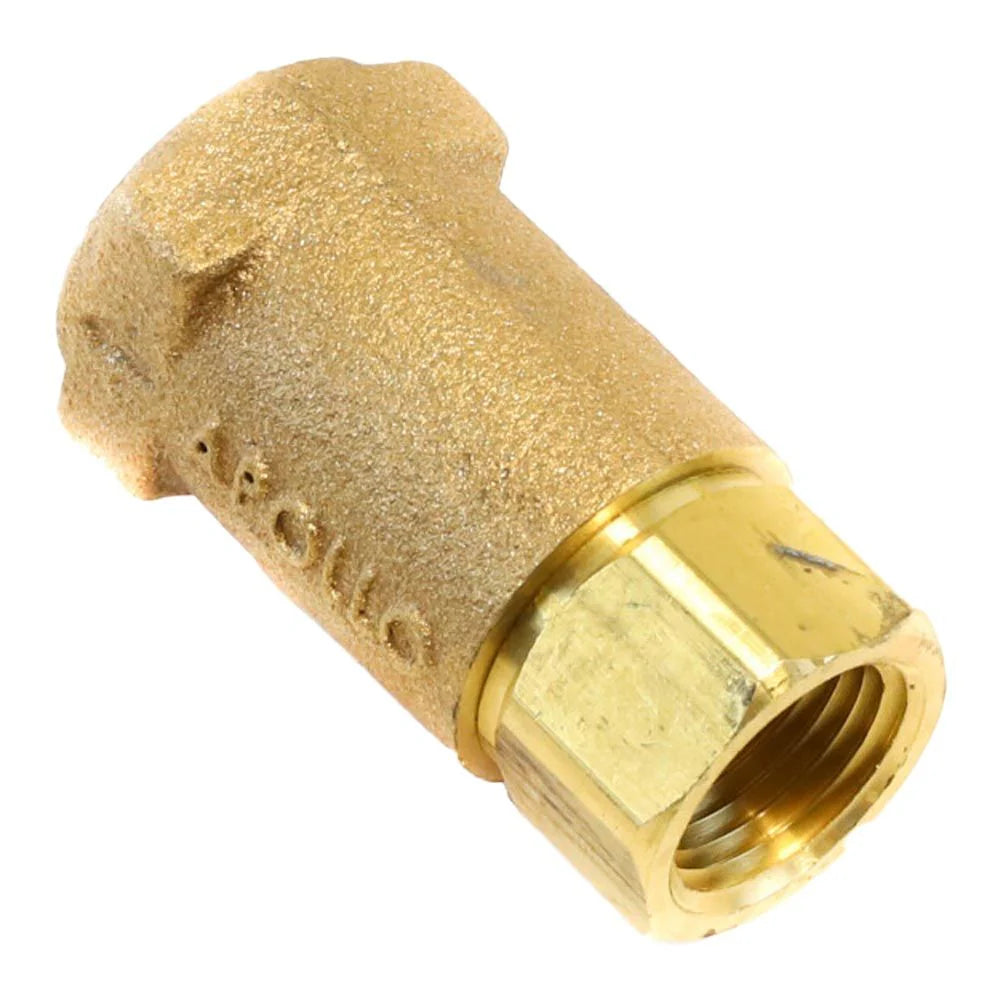

Apollo Valves 61-103-01 1/2 Threaded Bronze Spring Check Valve

Product Description

The Apollo Valves 61-103-01 is a 1/2 inch threaded bronze spring check valve designed for various applications. It features a half-inch FNPT connection and is suitable for both horizontal and vertical installation. This valve protects against reverse flow and is ideal for steam and chemical services.

• Spring actuated
• Bronze construction for durability
• Designed for efficient flow straight-through

Product Highlights

This check valve is made from lead-free bronze and includes a stainless steel spring for enhanced reliability. It is factory tested to ensure performance and is compliant with ARRA standards.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 61-103-01

Technical Specifications

• Material: Bronze
• Connection Size: 1/2 in
• Connection Type: FNPT
• Maximum Temperature: 406 deg F
• Maximum Working Pressure: 400 PSI
• Flow Coefficient: 1.4 Cv
• Pressure Rating: 125 psi at 350 deg F steam
• Dimension: 2.31 in L x 1.12 in H
• Series: 61
• Operator Type: Stainless Steel Spring Actuated
• Standards: CRN 0C11218.5C certified, ARRA compliant
