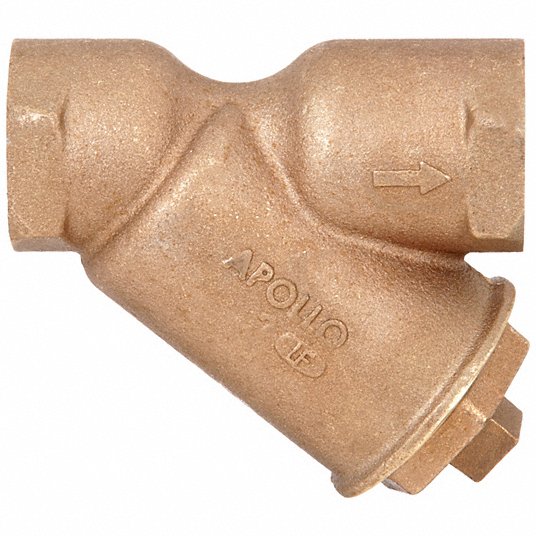

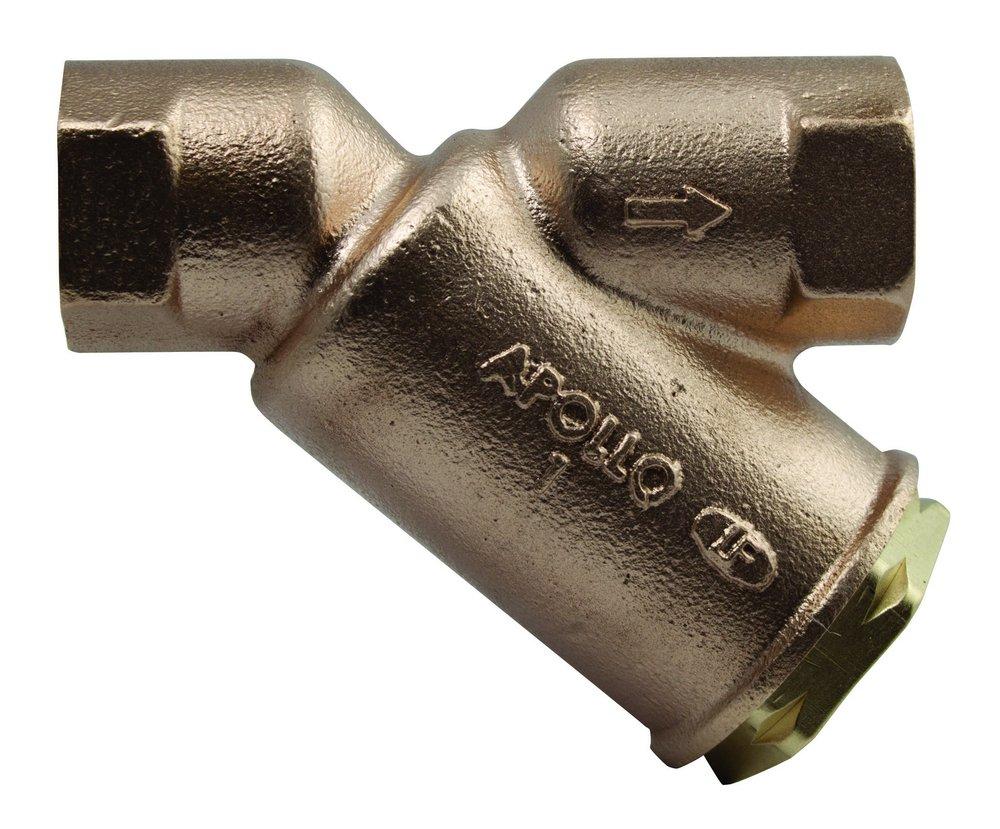

Apollo Valves 59LF008P2 Y Strainer 2 inches FNPT x FNPT

Product Description

The APOLLO VALVES 59LF008P2 Y strainer with a pipe size of 2 inches. It is designed to protect pumps, control valves, regulators, and other process equipment from contaminants found in water, oil, gas, and steam applications. The strainer resists corrosion from saltwater and has high heat and electrical conductivity.

• Resists corrosion from saltwater
• High heat and electrical conductivity
• Protects pumps, control valves, regulators, and other process equipment from contaminants
• Includes screen

Product Highlights

This Y strainer is suitable for use with water and features a lead-free bronze housing and a 304 stainless steel screen.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 59LF008P2
• Country of Origin: United States

Technical Specifications

• Item: Y Strainer
• Mesh: 0.016"
• Class: 400 CWP-125 SWP
• Width: 6-3/4"
• Height: 6"
• Length: 6-21/32"
• Series: 59LF
• Microns: 840
• Pipe Size: 2"
• Standards: ARRA Certified, CRN 0E8959.5, NSF /ANSI 372
• For Use With: Water
• Blow Off Port: 1 1/4 in
• Max. Pressure: 400 psi at 210 Degrees F WOG
• Micron Rating: 840 micron
• Seal Material: PTFE
• Strainer Type: Wye
• Connection Type: FNPT x FNPT
• Gasket Material: PTFE
• Includes Screen: Yes
• Screen Material: 304 Stainless Steel
• Housing Material: Lead Free Bronze
• Max. Fluid Temp.: 450 Degrees F
• Maximum Pressure: CWP: 400 psi, SWP: 125 psi
• Maximum Temperature: 353 Degrees F
• Port 1 Connection Size: 2 in
• Port 1 Connection Type: NPT
• Port 2 Connection Size: 2 in
• Port 2 Connection Type: NPT
• Port 3 Connection Size: 1 1/4 in
• Port 3 Connection Type: NPT
• Strainer Connection Type: NPT (National Pipe Thread) Threaded Connection
• Length (Straight Wireway): 6 21/32 in
• Maximum Pressure at 100 deg F: 400 psi @ 150 Degrees F
• Mesh Size: 0.0469 in
• Max. Operating Temperature: 353 00b0F
• Compatible Media: Water
• Manufacturer Part Number: 59LF008P2
• UNSPSC: 40142501
• ANSI: ANSI 372
• ASTM: ASTM B-584
• BAA Compliant: Yes
• Collection: 59LF Series
• Material: Bronze
• Pressure - Maximum: 400 psi
• Recommended Valve Application: Steam, Potable Water
• UL Listed: No
• UPC: 670750872730
• Valve Size: 2 in
