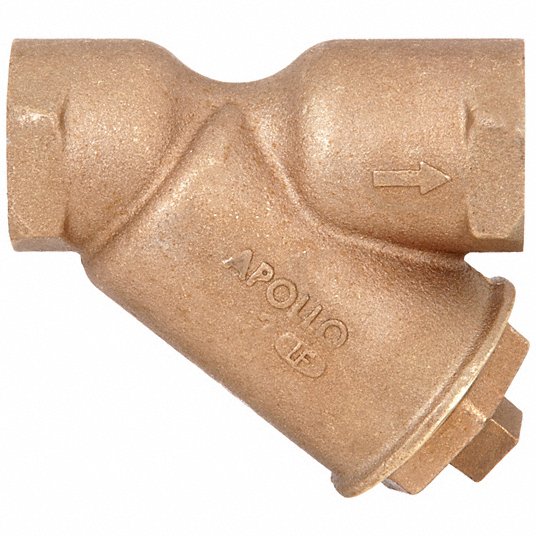

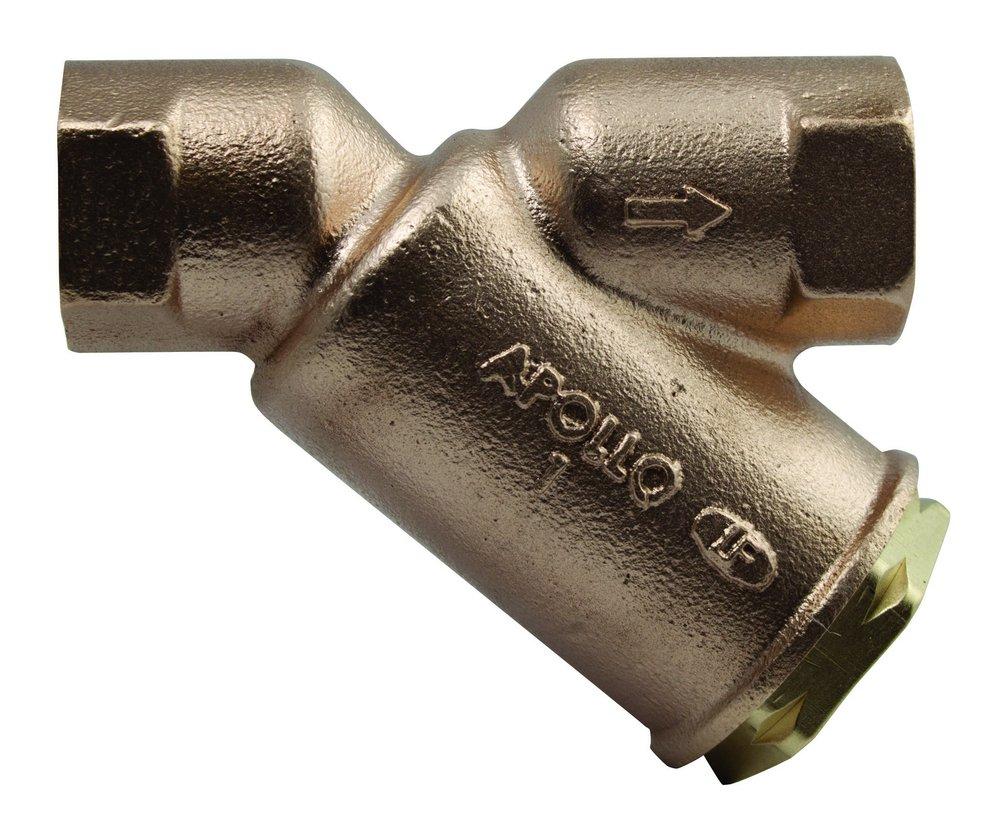

Apollo Valves 59LF006P2 Y Strainer 1-1/4 inches FNPT x FNPT

Product Description

The APOLLO VALVES 59LF006P2 Y Strainer with 1-1/4" pipe size and FNPT x FNPT connection is designed to protect piping systems and process equipment from unwanted foreign particles. The lead-free bronze wye strainer is suitable for water, oil, gas, and steam applications.

• Features a large area screen for minimal pressure loss.
• Constructed with lead-free bronze housing material.
• Includes a 304 stainless steel screen.

Product Highlights

This Y strainer is ideal for use with water and other media to protect equipment from contaminants.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 59LF006P2
• Country of Origin: United States

Technical Specifications

• Item: Y Strainer
• Mesh: 0.016"
• Class: 400 CWP-125 SWP
• Width: 5-1/8"
• Height: 4-1/4"
• Length: 5-1/8"
• Series: 59LF
• Microns: 840
• Pipe Size: 1-1/4"
• Standards: ARRA Certified, CRN 0E8959.5, NSF /ANSI 372
• Screen Area: 0.03 sq. in.
• For Use With: Water
• Blow Off Port: 3/4 in
• Max. Pressure: 400 psi @ 210 Degrees F WOG
• Micron Rating: 840 micron
• Port 1 Gender: Female
• Port 2 Gender: Female
• Port 3 Gender: Female
• Seal Material: PTFE
• Strainer Type: Wye
• Connection Type: FNPT x FNPT
• Gasket Material: PTFE
• Includes Screen: Yes
• Screen Material: 304 Stainless Steel
• Housing Material: Lead Free Bronze
• Max. Fluid Temp.: 450 Degrees F
• Maximum Pressure: CWP: 400 psi, SWP: 125 psi
• Maximum Temperature: 353 Degrees F
• Port 1 Connection Size: 1 1/4 in
• Port 1 Connection Type: NPT
• Port 2 Connection Size: 1 1/4 in
• Port 2 Connection Type: NPT
• Port 3 Connection Size: 3/4 in
• Port 3 Connection Type: NPT
• Strainer Connection Type: NPT (National Pipe Thread) Threaded Connection
• Length (Straight Wireway): 5 1/8 in
• Maximum Pressure at 100 deg F: 400 psi @ 150 Degrees F
• DN1: 1-1/4"
• DN2: 1-1/4"
• Materials: bronze (ASTM B584)
• Finishing: none
• Shape: Pipeline strainer
• Max operating pressure liquid: 400 psi
• ETIM class: EC010151 Pipeline strainer
• Brand: APOLLO VALVES
• UNSPSC: 40142505
• etim-class: EC010151 Pipeline strainer
• Surface protection: Untreated
• Nominal diameter: DN 32
• Connection: Internal thread conical (NPT)
• Max. operating pressure: 27.58bar
• Max. operating pressure (imperial): 400psi
• Compatible Media: Water
• Includes Screen Screen Included: Screen Included
• ANSI: ANSI 372
• ASTM: ASTM B-584, ASTM B-584 C89836
• BAA Compliant: Yes
• Collection: 59LF Series
• End Connection 1: FNPT
• End Connection 2: FNPT
• End Connections: FNPT
• Fitting Sizes: 1-1/4 in
• Material: Cast Bronze, Plastic, Stainless Steel
• Material Type: 304, PTFE
• Pressure - High: 125, 400
• Pressure Class: 125#, 400#
• Recommended Valve Application: Potable Water, Steam
• UL Listed: No
• End Connection: FNPT
• Depth: 7.380
• Features: Y Strainer, Pipe Size 1 1/4 in, Maximum Pressure at 100 deg F 400
