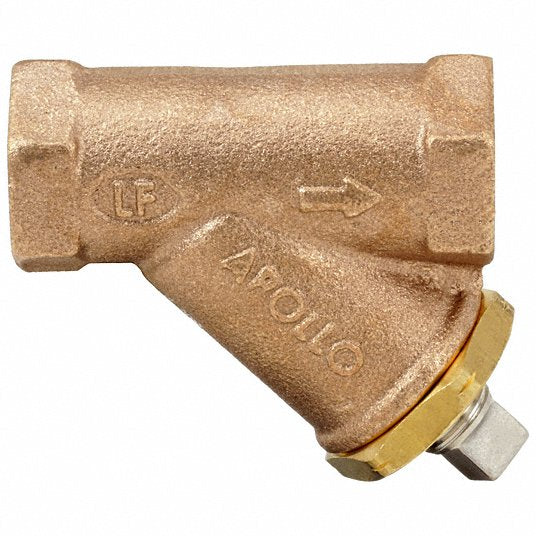

Apollo Valves 59LF005P2 Y Strainer 1 in

Product Description

The APOLLO VALVES 59LF005P2 is a bronze Y-strainer that resists corrosion from saltwater and has high heat and electrical conductivity. This Y-strainer protects pumps, control valves, regulators, and other process equipment from contaminants found in water, oil, gas, and steam applications.

• Resists corrosion from saltwater
• High heat and electrical conductivity
• Protects pumps, control valves, regulators, and other process equipment from contaminants

Product Highlights

This bronze Y-strainer is ideal for protecting equipment from contaminants in various applications.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 59LF005P2
• Country of Origin: USA

Technical Specifications

• Brand: APOLLO
• Sub-brand: STRAINER,Y,1'',59LF SER,20M,LF BRZ,3/4''TAP CAP,PLUG
• Series: 59LF
• Strainer Type: Mesh
• Micron Rating: 840 micron
• Mesh Size: 0.125 in
• Housing Material: Bronze
• Seal Material: PTFE
• Screen Material: 304 Stainless Steel
• Pipe Size: 1 in
• Port 1 Connection Type: NPT
• Port 1 Connection Size: 1 in
• Port 2 Connection Type: NPT
• Port 1 Gender: Female
• Port 2 Gender: Female
• Length: 4-3/4 in
• Height: 4 in
• Class: 400 CWP-125 SWP
• Blow Off Port: 3/4 in
• Port 2 Connection Size: 1 in
• Port 3 Connection Size: 3/4 in
• Port 3 Connection Type: NPT
• Port 3 Gender: Female
• Max. Operating Temperature: 353 °F
• Screen Area: 0.03 sq in
• Compatible Media: Water
• Includes Screen: Screen Included
• Standards: ARRA Certified; CRN 0E8959.5; NSF/ANSI 372
• Manufacturer Part Number: 59LF005P2
• UNSPSC: 40142501
• Mesh: 20
• Max. Fluid Temp.: 450 Degrees F
• Max. Pressure: 400 psi at 210 Degrees F WOG
• Microns: 840
• Gasket Material: PTFE
• Maximum Pressure at 100 deg F: 400 psi @ 150 Degrees F
• Maximum Temperature: 353 Degrees F
• Maximum Pressure: CWP: 400 psi, SWP: 125 psi
• Weight: 3.93 lbs
