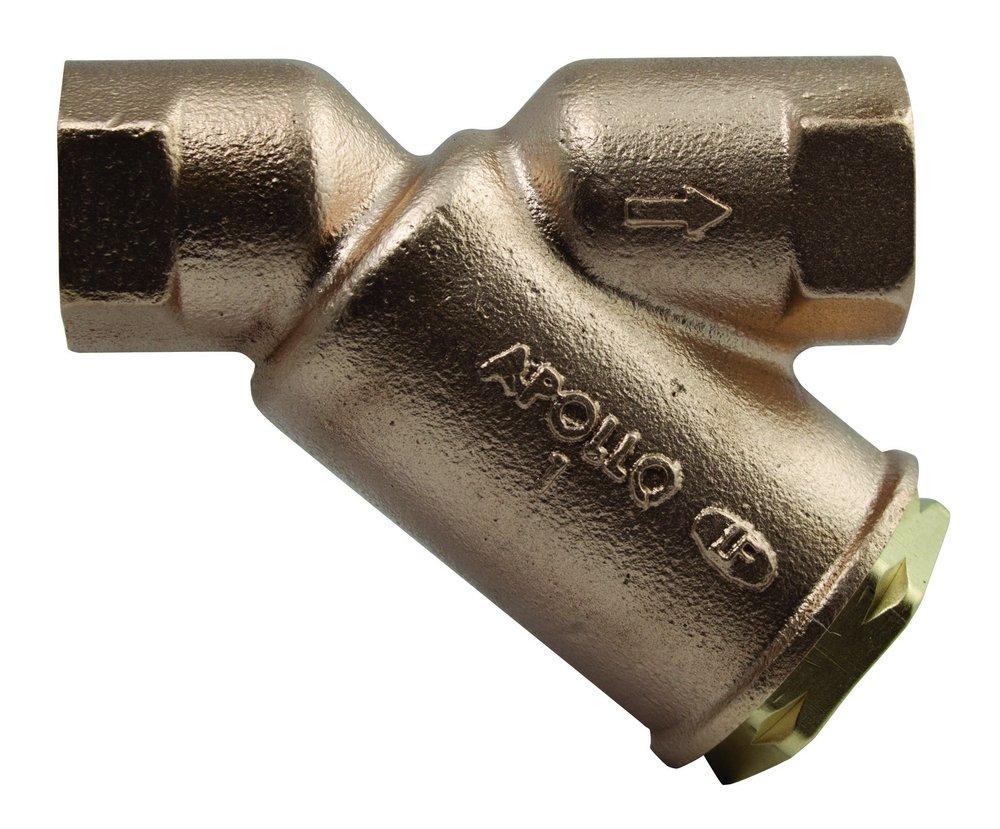

Apollo Valves 59LF004P2 Y Strainer 3/4 inches FNPT x FNPT

Product Description

The APOLLO VALVES 59LF004P2 Y strainer is designed to protect piping systems and process equipment from unwanted foreign particles with minimum pressure loss. Constructed from lead-free bronze, this strainer features a 304 stainless steel screen and a removable self-aligning screen design. It is suitable for use with water.

• Pipe Size 3/4 in
• Maximum Pressure at 100 deg F 400 psi @ 150 Degrees F
• Screen Material 304 Stainless Steel

Product Highlights

The APOLLO VALVES Y strainer offers reliable protection for your piping systems with its durable construction and efficient screen design.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 59LF004P2
• Country of Origin: United States

Technical Specifications

• Item: Y Strainer
• Mesh: 0.016"
• Class: 400 CWP-125 SWP
• Width: 3-7/8"
• Height: 3-1/4"
• Length: 4-1/4"
• Series: 59 Series Strainers
• Microns: 840.0
• Pipe Size: 3/4"
• Standards: ARRA Certified, CRN 0E8959.5, NSF /ANSI 372
• Screen Area: 0.03 sq. in.
• For Use With: Water
• Blow Off Port: 1/2 in
• Max. Pressure: 400 psi @ 210 Degrees F WOG
• Micron Rating: 840 micron
• Port 1 Gender: Female
• Port 2 Gender: Female
• Port 3 Gender: Female
• Seal Material: PTFE
• Strainer Type: Mesh
• Connection Type: FNPT x FNPT
• Gasket Material: PTFE
• Includes Screen: Yes
• Screen Material: 304 Stainless Steel
• Housing Material: Lead Free Bronze
• Max. Fluid Temp.: 450 Degrees F
• Maximum Pressure: CWP: 400 psi, SWP: 125 psi
• Maximum Temperature: 353 Degrees F
• Port 1 Connection Size: 3/4 in
• Port 1 Connection Type: NPT
• Port 2 Connection Size: 3/4 in
• Port 2 Connection Type: NPT
• Port 3 Connection Size: 1/2 in
• Port 3 Connection Type: NPT
• Strainer Connection Type: NPT (National Pipe Thread) Threaded Connection
• Length (Straight Wireway): 4 1/4 in
• Maximum Pressure at 100 deg F: 400 psi @ 150 Degrees F
• Size: 3/4"
• Materials: bronze (ASTM B584)
• Finishing: none
• Shape: Pipeline strainer
• Max operating pressure liquid: 400 psi
• Brand: Apollo
• Product type: 59LF00XP2
• UNSPSC: 40142505
• etim-class: EC010151 Pipeline strainer
• Nominal diameter: DN 20
• Connection: Internal thread conical (NPT)
• Max. operating pressure: 27.58bar
• Max. operating pressure (imperial): 400psi
• Length (imperial): 4.25"
• Height (imperial): 3.25"
• Type: Plumbing
• Category: Business & Industrial
• ANSI: ANSI 372
• ASTM: ASTM B-584
• BAA Compliant: Yes
• Collection: 59LF Series
• End Connection 1: FNPT
• End Connection 2: FNPT
• End Connections: FNPT
• Fitting Sizes: 3/4 in
• Material: Cast Bronze, Plastic, Stainless Steel
• Material Type: 304, PTFE
• Pressure - High: 125, 400
• Pressure Class: 125#, 400#
• Recommended Valve Application: Potable Water, Steam
• UL Listed: No
• UPC: 670750476464
