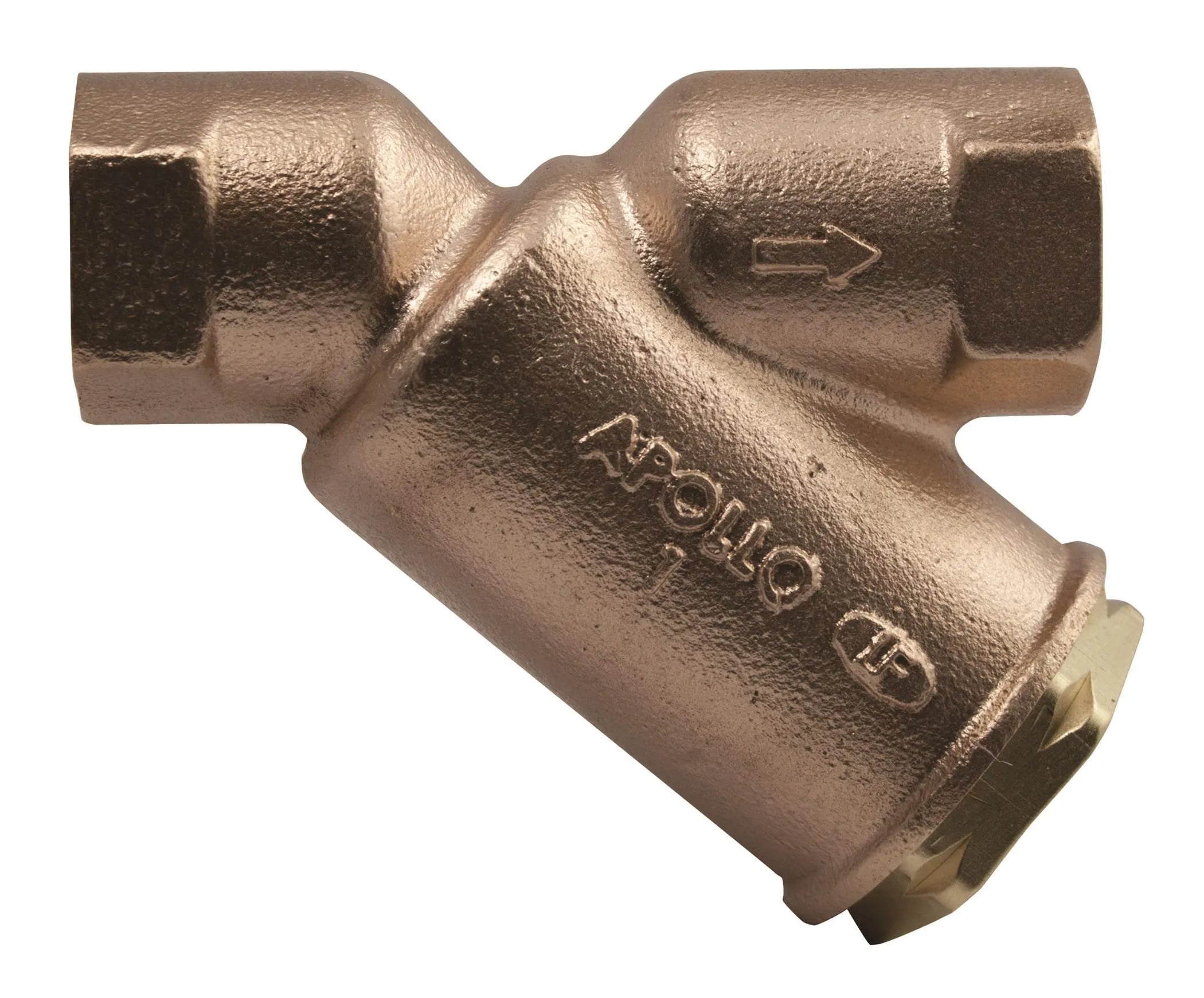

Apollo Valves 59LF004H1 Lead Free Bronze Wye Strainer with 100 Mesh Screen 3/4 Inch Size, 2 x FNPT

Product Description

The APOLLO VALVES 59LF004H1 is a lead-free bronze wye strainer designed with a 100 mesh screen and a 3/4 inch size with 2 x FNPT connections. It is designed to protect piping systems and process equipment from unwanted foreign particles with minimum pressure loss. The strainer is pressure tested at the factory.

• Lead Free
• 100 Mesh Screen
• 3/4 Inch Size
• 2 x FNPT

Product Highlights

This bronze wye strainer features a 100 mesh screen and FNPT connections. It protects equipment from foreign particles and is factory pressure tested.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 59LF004H1
• Country of Origin: US

Technical Specifications

• Item: Y Strainer
• Connection Type: FNPT
• Material: Bronze
• Max. Operating Pressure: 400 psi
• Series: 59 Series Strainers
• Shape: Pipeline strainer
• Size: 3/4"
• Brand: Apollo
• UNSPS: 40142505
• DN1: DN20
• DN2: DN20
• Materials: bronze (ASTM B584)
• Finishing: none
• Max Operating Pressure Liquid: 27.58 bar
• ETIM Class: EC010151 Pipeline strainer
• Housing material: Bronze
• Surface protection: Untreated
• Nominal diameter: DN 20
• Connection: Internal thread conical (NPT)
• Max. operating pressure: 27.58bar
• Max. operating pressure (imperial): 400psi
