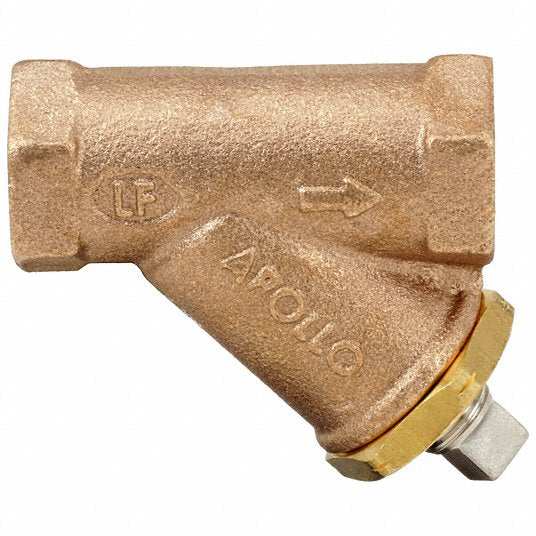

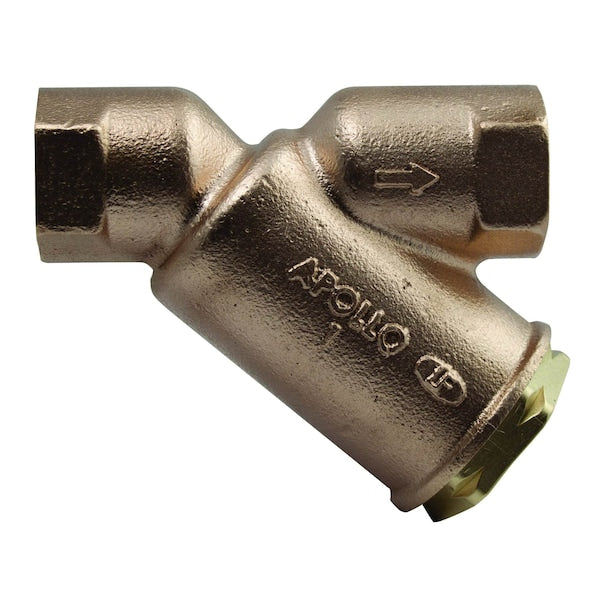

Apollo Valves 59LF003P2 Y Strainer 1/2 inches FNPT x FNPT

APOLLO VALVES
Brand: APOLLO VALVES
SKU: 59LF003P2
Availability: In Stock

Ships same day if ordered by 12 pm
$49.47
$49.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Apollo Valves 59LF003P2 is a Y strainer with a 1/2" pipe size. It is designed to protect pumps, control valves, regulators, and other process equipment from contaminants. Constructed with lead-free bronze housing material and a 304 stainless steel screen.

  • Pipe Size 1/2 in
  • Maximum Pressure at 100 deg F 400 psi @ 150 Degrees F
  • Length 2 3/4 in

Product Highlights

This Y strainer has a bronze housing, 304 stainless steel screen, and FNPT x FNPT connection.

Product Information

Standard Information

  • Brand: APOLLO VALVES
  • Manufacturer Part Number: 59LF003P2
  • Country of Origin: United States

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications
Item
Y Strainer
Mesh
0.011"
Class
400 CWP-125 SWP
Width
2-45/64"
Height
2"
Length
2-11/16"
Series
59LF
Microns
297
Pipe Size
1/2"
Standards
ARRA Certified, CRN 0E8959.5, NSF /ANSI 372
Screen Area
0.01 sq. in.
For Use With
Water
Blow Off Port
1/4 in
Micron Rating
297 micron
Port 1 Gender
Female
Port 2 Gender
Female
Seal Material
PTFE
Strainer Type
Mesh
Connection Type
FNPT x FNPT
Gasket Material
PTFE
Includes Screen
Yes
Screen Material
304 Stainless Steel
Housing Material
Lead Free Bronze
Max. Fluid Temp.
450 Degrees F
Maximum Pressure
CWP: 400 psi, SWP: 125 psi
Maximum Temperature
353 Degrees F
Port 1 Connection Size
1/2 in
Port 1 Connection Type
NPT
Port 2 Connection Size
1/2 in
Port 2 Connection Type
NPT
Port 3 Connection Size
1/4 in
Port 3 Connection Type
NPT
Strainer Connection Type
NPT (National Pipe Thread) Threaded Connection
Maximum Pressure at 100 deg F
400 psi @ 150 Degrees F
Max. Pressure
400 psi at 210 Degrees F WOG
Brand
Apollo
MPN
59LF003P2
