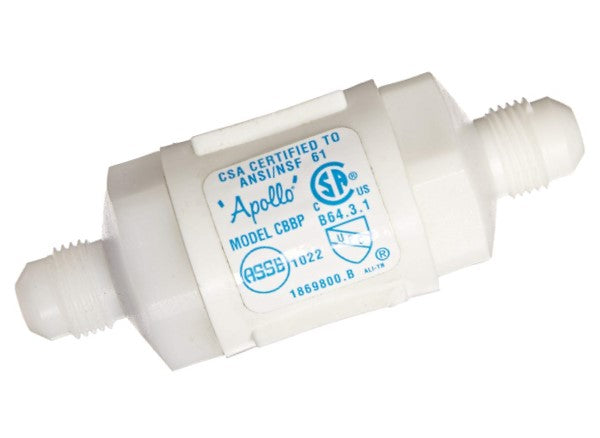

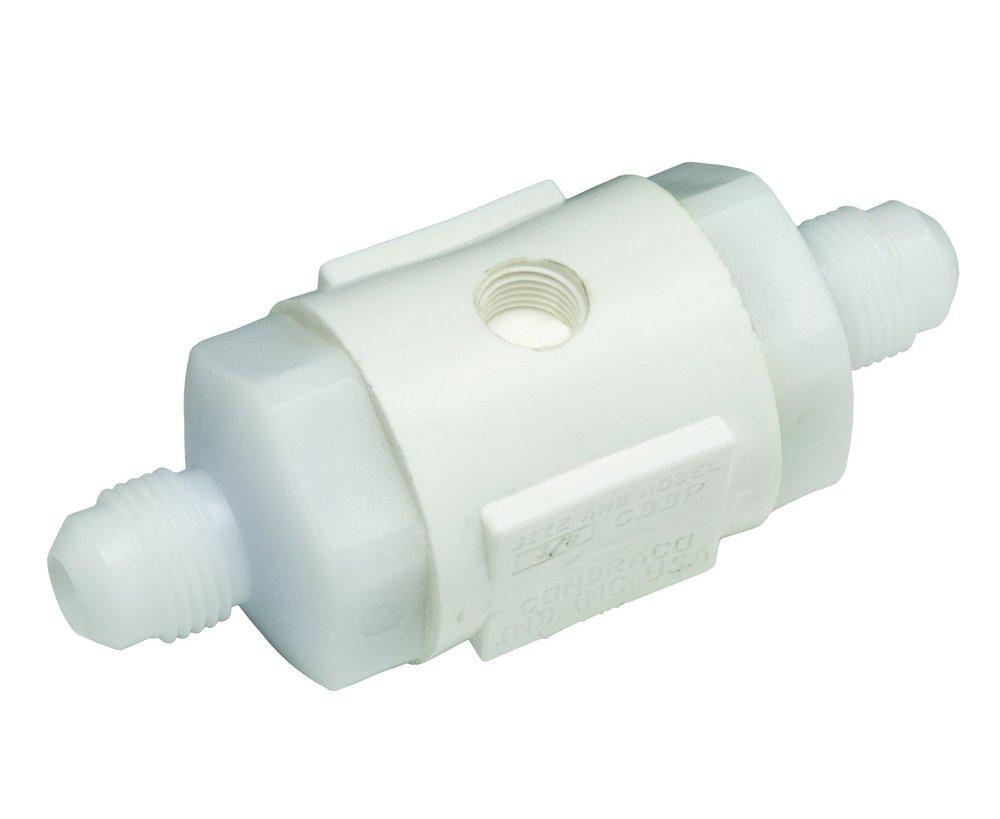

Apollo Valves 4C10202A 4C-100 Series Backflow Preventer 3/8 in. MNPT

Product Description

The APOLLO VALVES 4C10202A 4C-100 Series 3/8 in. Acetal MNPT Backflow Preventer features a compact design and the lowest head loss. An atmospheric vent provides indication of problems. It is CSA certified to ANSI/NSF-61 and made with corrosion resistant materials. It also features repairable check assemblies and an integral strainer for equipment protection.

• Compact design
• Lowest head loss
• Atmospheric vent provides indication of problems
• CSA certified to ANSI/NSF-61
• Corrosion resistant materials

Product Highlights

This backflow preventer is made in the USA and features repairable check assemblies and an integral strainer for equipment protection.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 4C10202A
• Country of Origin: USA

Technical Specifications

• Size: 3/8"
• Materials: plastic
• Connection Type: MPT - male thread conical (NPT), MPT - male thread conical (NPT)
• Max Operating Pressure Liquid: 13.79 bar
• Brand: Apollo
• Series: 4C Series Backflow Preventers
• Backflow Type: Dual Check
• Body Material: Acetal
• Domestic/Import: Domestic
• End Style: MNPT
• Media: Water
• Nominal Size: 3/8 in
• Pressure Rating: 200 psi
• Temperature Rating: 33 to 130 deg F
• Type: Atmospheric
