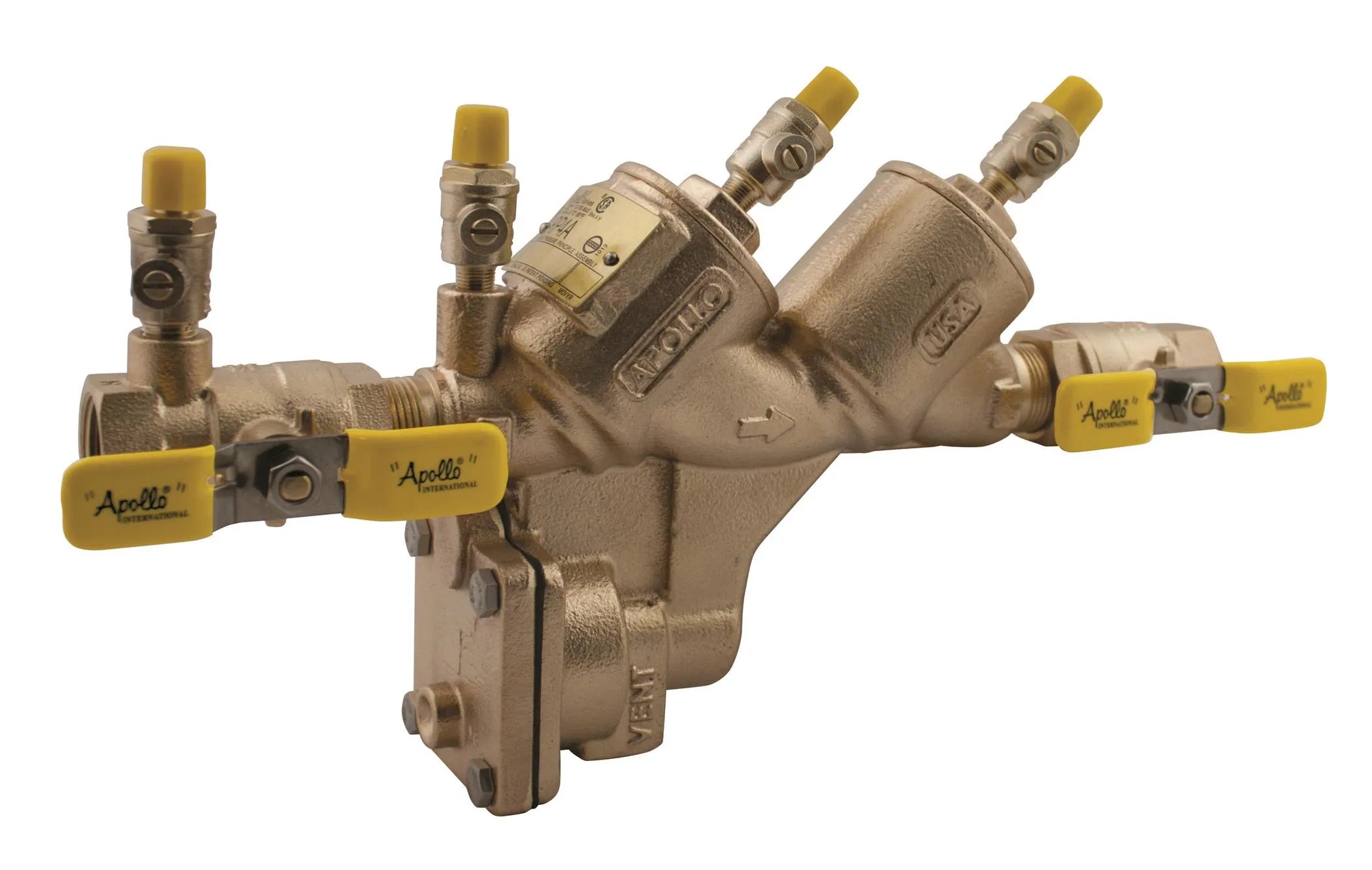

Apollo Valves 4ALF206A2 Bronze Reduced Pressure Backflow Preventer (1-1/4 in) RPLFA4A114

Product Description

Apollo Valves 4ALF206A2 is a bronze reduced pressure backflow preventer that protects potable water supplies from backsiphonage and backpressure. The 1-1/4 in unit has two FNPT connections, a top-accessed modular design with captured spring check cartridges and reversible chloramine-resistant silicone seats, and includes standard full-port ball valves with stainless steel handles. It is rated to 175 psi (12.07 bar) and is manufactured in the United States with multiple certifications.

• Bronze construction, 1-1/4 in size, two FNPT connections, rated to 175 psi (12.07 bar).
• Top-accessed modular check cartridges with captured springs and replaceable reversible chloramine-resistant silicone seats for field maintenance.
• Includes standard full-port ball valves with stainless steel handles, top-mounted test cocks with threaded protectors, internal sensing passage, and modular captured spring relief valve.

Product Highlights

Reduced pressure backflow preventer for potable water, 1-1/4 in FNPT connections, 175 psi, top-access cartridges.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 4ALF206A2
• Country of Origin: United States

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: 4ALF206A2
• Replacement Part Number: RPLFA4A114
• Product Name: Bronze reduced pressure backflow preventer with standard ball valves
• Series: 4A Series Backflow Preventers
• Size: 1-1/4 in
• Connection Type: 2 x FNPT (internal thread, conical NPT)
• Material: Bronze
• Housing Material: Bronze
• Max Operating Pressure: 175 psi (12.07 bar)
• Country of Origin: United States
• Certifications/Approvals: NSF; NSF/ANSI 372; NSF/ANSI 61; ASSE 1003; IAPMO/ANSI/CAN Z1117
• Suitable For Central Heating Water: No
• Features: Top-accessed modular cartridges; captured springs; replaceable reversible chloramine-resistant silicone seats; low head loss; top-mounted test cocks with threaded protectors; internal sensing passage; modular captured spring relief valve; standard full-port ball valves with stainless steel handles; corrosion resistant
