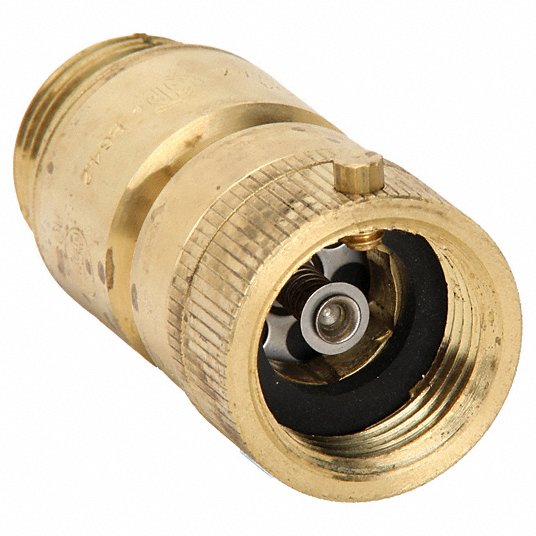

Apollo Valves 38LF30402 Brass Hose Bibb Dual Check Backflow Preventer 3/4 inches (Hose Connection)

Product Description

The Apollo Valves 38LF30402 is designed to prevent cross-connection caused by back-siphonage and backflow due to low head back-pressure. These hose connection vacuum breakers attach hoses to threaded faucets and prevent backflow of polluted water into potable water supplies.

• Corrosion Resistant Body and Checks
• Low Head Loss
• Easy to Install with Break-Away Set Screw

Product Highlights

The Apollo Valves backflow preventer is made in the USA and is lead-free.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 38LF30402
• Country of Origin: United States

Technical Specifications

• article number with gtin: 38LF30402 (00670750061165)
• product number with gtin: 38LF30402 (00670750061165)
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• item group: 38LF30X02 38LF30X02 - Apollo Brass Hose Bibb Dual Check Backflow Preventer with Standard Configuration (Hose Connection)
• size: 3/4"
• max operating pressure liquid: 150 psi
• product group: valves ()
• ETIM class: EC011469 Check valve
• country of origin: United States
• brand: Apollo Valves
• series: 38 Series Vacuum Relief Valves
• product type: 38LF30X03
• unsps: 40141749
• Housing material: Bronze
• Surface protection: Untreated
• Max. operating pressure at 20 °C: 10.34bar
• Max. operating pressure at 20 °C (imperial): 150psi
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Suitable for central heating water: Yes
• Certified according to SVGW for water: No
• Certified according to SVGW for gas: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• weight: 0.69 lb
• materials: bronze (C89836 (lead-free))
• finishing: none
• connection type: hose connector
• Item: 804R53
• Mfr. Model: 38LF30402
• Catalog Page: N/A
• For Media: Carbonated Beverages; Water
• Includes Freeze Protection: No Freeze Protection
• Field Testable: Not Field Testable
• Hazard Protection Level: Low Health Hazard
• Protection Type: Back-Pressure; Back-Siphonage
• Body Material: Bronze
• Check Mechanism Material: Stainless Steel
• Seat Material: EPDM
• Seal Material: EPDM
• Spring Material: Stainless Steel
• Valve Series: 38
• Pipe Size: 3/4 in
• Connection Type: FGHT x MGHT
• Connection Gender - Side 1: Female
• Connection Type - Side 1: GHT
• Connection Gender - Side 2: Male
• Connection Type - Side 2: GHT
• Max. Pressure (CWP): 150 psi
• Cracking Pressure: 0.5 psi
• Media Temp. Range: 33 °F to 180 °F
• Min. Media Temperature: 33 °F
• Max. Media Temperature: 180 °F
• Overall Height: 1.24 in
• Overall Length: 2.68 in
• Overall Width: 1.29 in
• Includes Atmospheric Vent: No Atmospheric Vent
• Flow Rate: 21 gpm
• Standards: NSF
• Manufacturer Warranty: 5 yr
• Country of Origin: Switzerland (subject to change)
• Applications: Cooling
• Category: Pressure Reducing Valves
• Height: 5.62 in
• Length: 9.5 in
• Width: 6.5 in
• Material: Bronze
• Number of Connections: 2
• Product Type: Preventer
• Finish: Yellow Bronze
• Collection: 38 Series Vacuum Relief Valves
• Approvals: NSF
• Segments: Commercial Building
