Apollo Valves 3720201 Vacuum Relief Valve 3/4 Inch Replacement MPN

Product Description

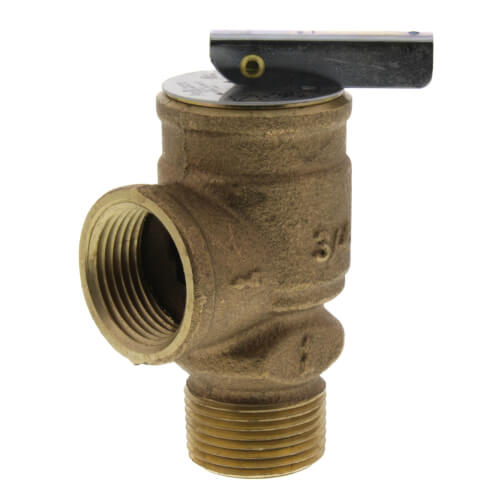

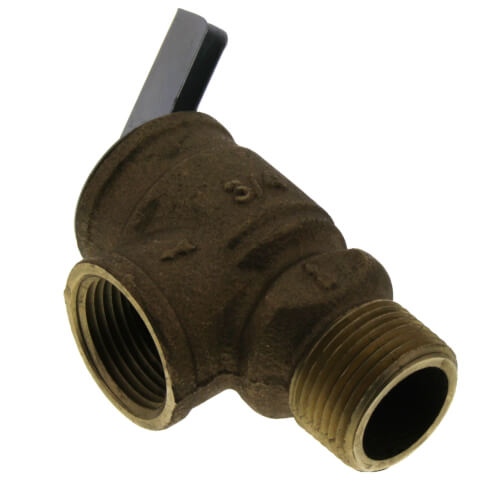

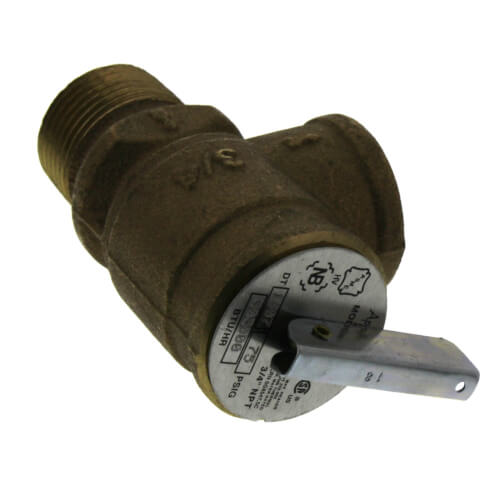

The Apollo Valves Model 3720201 Vacuum Relief Valve is essential for maintaining safety in plumbing systems. This brass valve automatically vents a system when a vacuum occurs, preventing water siphoning and tank collapse. It's designed for LP steam applications with a maximum pressure of 15 PSIG.

• Inlet size of 3/4 inch for easy installation
• Automatic vacuum relief at less than 1/2 vacuum
• Suitable for systems with a maximum temperature of 250 degrees Fahrenheit

Product Highlights

This valve is a key component for hot water supply systems, ensuring safety and operational efficiency.

Product Information

Standard Information

• Brand: Apollo
• Manufacturer Part Number: 3720201

Technical Specifications

• Valve Size: 3/4 inch
• End Connection: Threaded
• Material: Brass
• Seal Material: EPDM
• Temperature Rating: 250 degrees Fahrenheit
• Pressure Class: 200#
• Valve Type: Relief Valve
• Application: Plumbing, Hot Water Supply System
• Venting Capacity: 16 CFM
• Weight: 0.324 pound
• Certifications: CSA, CSA 4.4/ANSI Z21.22, ISO 9001
• ANSI: ANSI Z21.22
