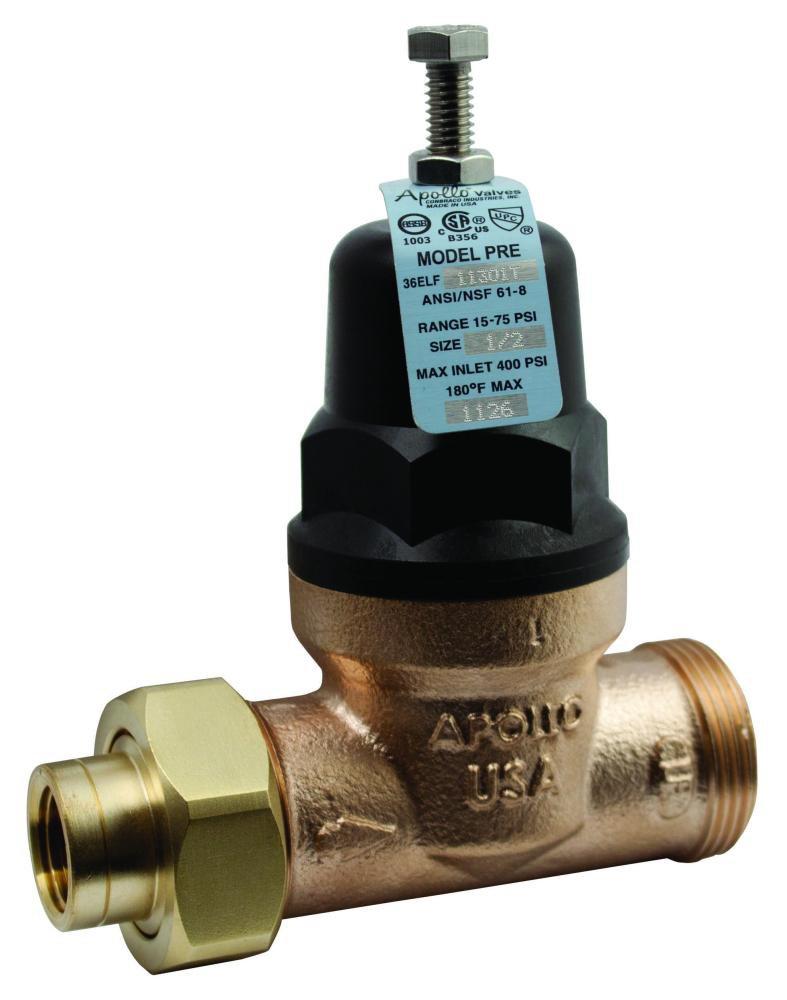

Apollo Valves 36ELF12501X 36ELF Series 1 in. Bronze Double Union PEX Pressure Reducing Valve

Product Description

The APOLLO VALVES 36ELF12501X 36ELF Series pressure reducing valve is designed for easy in-line servicing with simple cartridge removal. It conserves water and protects water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body provides maximum corrosion resistance. It is made in USA and features a balanced piston design.

• Easy in-line servicing with simple cartridge removal
• Large area integral stainless steel strainer
• Dezincification resistant bronze body
• Built-in thermal expansion bypass
• Balanced piston design
• Sealed cage for vault installations

Product Highlights

This lead-free pressure reducing valve is ideal for commercial applications, offering high flow and high efficiency with a stainless steel adjusting screw and nut.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 36ELF12501X
• Country of Origin: USA

Technical Specifications

• Application: commercial
• Series: 36ELF
• DN1: 1"
• DN2: 1"
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• size: 1"
• max operating pressure liquid: 27.56 bar
• min. medium temperature: 0.56 cel
• max medium temperature: 82.22 cel
• peak medium temperature: 82.22 cel
• Housing material: Bronze
• Surface protection: Untreated
• Nominal diameter connection 1: 1 inch (25)
• Nominal diameter connection 2: 1 inch (25)
• Max. inlet pressure: 27.56bar
• Max. inlet pressure (imperial): 400psi
• With pressure gauge: No
• Suitable for liquids: No
• Suitable for steam: No
• Suitable for gases: No
• Product Type: Pressure Reducing Valve
• Material: Bronze
• Shape: Straight
• Applications: Potable Water
• Approvals: ASSE 1003, CSA B356, NSF, Made in USA, Build America Buy America (BABA) Act, Buy American Act (BAA)
• Segments: Industry, Commercial Building
• Style: 1-Part
