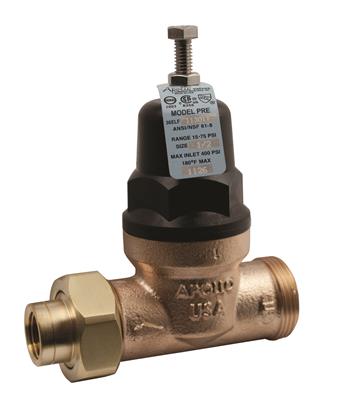

Apollo Valves 36ELF11701T Direct Acting Water Pressure Reducing Valve 15-75 psi 1-1/2 inches

Product Description

The Apollo Valves 36ELF11701T is a lead-free pressure-reducing valve designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The valve features a dezincification-resistant bronze body, stainless steel adjusting screw, and dielectric polymer cage for maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

• Balanced Piston Design
• Built-in Thermal Expansion Bypass
• Large Area Integral Stainless Steel Strainer

Product Highlights

This valve is factory tested and preset at 60 psi, offering high flow and high efficiency.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 36ELF11701T
• Country of Origin: United States

Technical Specifications

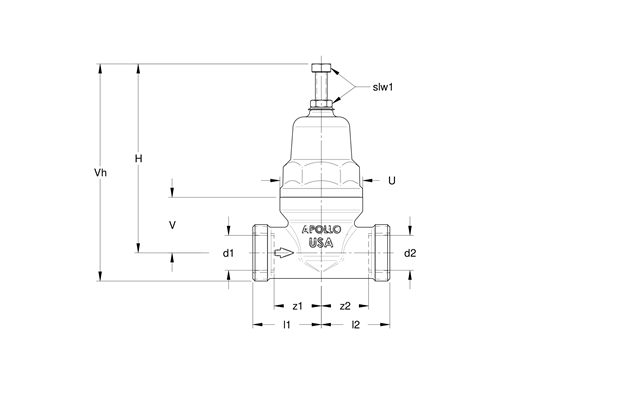

• d1: 48.3
• DN1: 1-1/2"
• d2: 48.3
• DN2: 1-1/2"
• etim-class: EC010122 Pressure reducing valve
• Housing material: Bronze
• Surface protection: Untreated
• Nominal diameter connection 1: 1 1/2 inch (40)
• Outer pipe diameter connection 1: 48.26mm
• Outer pipe diameter connection 1 (imperial): 1.9"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: 1 1/2 inch (40)
• Outer pipe diameter connection 2: 48.26mm
• Outer pipe diameter connection 2 (imperial): 1.9"
• Connection 2: Internal thread conical (NPT)
• Max. inlet pressure: 27.56bar
• Max. inlet pressure (imperial): 400psi
• With pressure gauge: No
• Height (imperial): 10"
• Suitable for liquids: Yes
