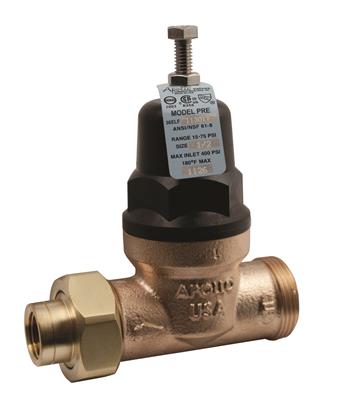

Apollo Valves 36ELF11401TB Direct Acting Water Pressure Reducing Valve 15-75 psi 3/4 inches (Union FNPT x FNPT)

Product Description

The APOLLO VALVES 36ELF11401TB is a lead-free pressure reducing valve designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. It features a dezincification resistant bronze body, stainless steel adjusting screw, and dielectric polymer cage for maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

• Balanced Piston Design
• SS Adjusting Screw & Nut
• Sealed Cage for Vault Installations

Product Highlights

This valve has a built-in thermal expansion bypass and a large area integral stainless steel strainer. It is factory tested and preset at 60 psi.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 36ELF11401TB
• Country of Origin: United States

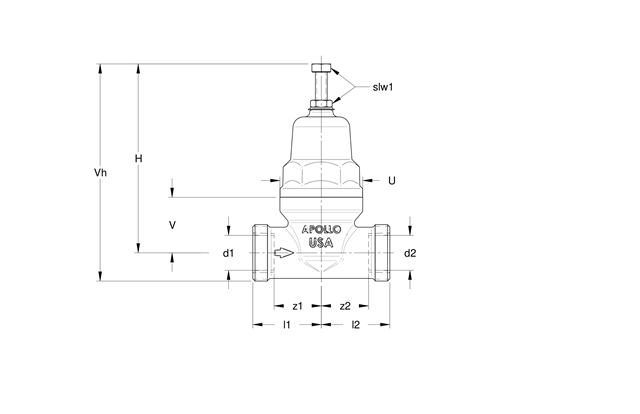

Technical Specifications

• DN1: 3/4"
• DN2: 3/4"
• Max Operating Pressure Liquid: 400 psi
• Min. Medium Temperature: 33 °F
• Max Medium Temperature: 180 °F
• Peak Medium Temperature: 180 °F
• Housing Material: Bronze
• Surface Protection: Untreated
• Nominal Diameter Connection 1: 3/4 inch (20)
• Outer Pipe Diameter Connection 1: 26.67mm
• Outer Pipe Diameter Connection 1 (imperial): 1.05"
• Connection 1: Internal thread conical (NPT)
• Nominal Diameter Connection 2: 3/4 inch (20)
• Outer Pipe Diameter Connection 2: 26.67mm
• Outer Pipe Diameter Connection 2 (imperial): 1.05"
• Connection 2: Internal thread conical (NPT)
• Max. Inlet Pressure: 27.56bar
• Max. Inlet Pressure (imperial): 400psi
• With Pressure Gauge: No
• Suitable for Liquids: Yes
• Suitable for Steam: No
• Suitable for Gases: No
• ETIM Class: EC010122 Pressure reducing valve
