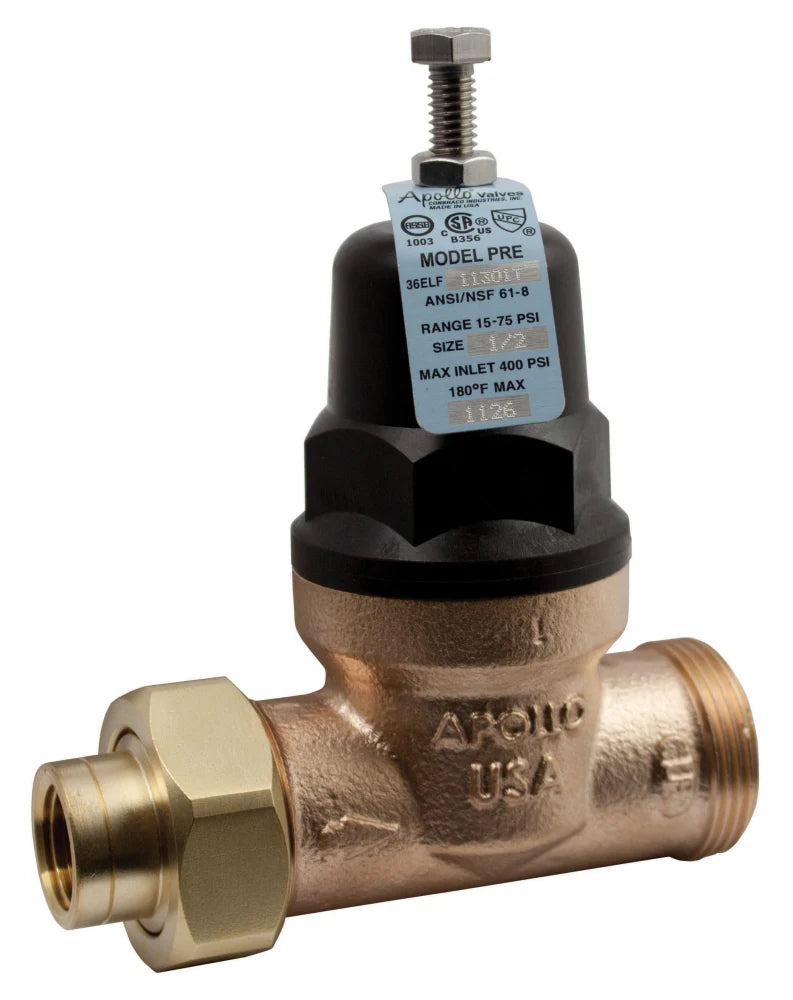

Conbraco 36ELF-124-01T 3/4, FPT x FPT, 400 PSIG, Lead-Free, UNS 89836 DZR Bronze, Diaphragm/Adjusting Screw, Double Union, Pressure Reducing Valve

Product Description

The Conbraco 36ELF-124-01T is a pressure reducing valve designed for water systems. It features dimensions of three-fourths inch female threaded connections, rated at four hundred pounds per square inch gauge (PSIG). This valve is lead-free and constructed from UNS 89836 dezincification resistant bronze, ensuring compliance with safety standards.

• Type: Double Union
• Actuation Type: Diaphragm, Adjusting Screw
• Pressure Adjustment Range: 15 to 75 PSI

Product Highlights

This valve is used in both commercial and residential applications, making it versatile for various plumbing systems.

Product Information

Standard Information

• Manufacturer: Conbraco
• UPC: 670750685682

Technical Specifications

• Nominal Size: 3/4 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 5.53 Inch
• Body Material: UNS 89836 Dezincification Resistant Bronze
• Spring Material: ASTM A228 Stainless Steel
• Standard Factory Setting: 60 PSI
• Temperature Rating: 33 to 180 Deg F
• Pressure Rating: 400 PSIG
• Strainer Supplied: Yes
• Balanced Piston: Yes
• Sealed Cage: Yes
• Modular Seat Disc: Yes
• Built-In Thermal Expansion Bypass: Yes
• Applicable Standards: CSA B356, UPC, ASSE 1003, IAPMO
