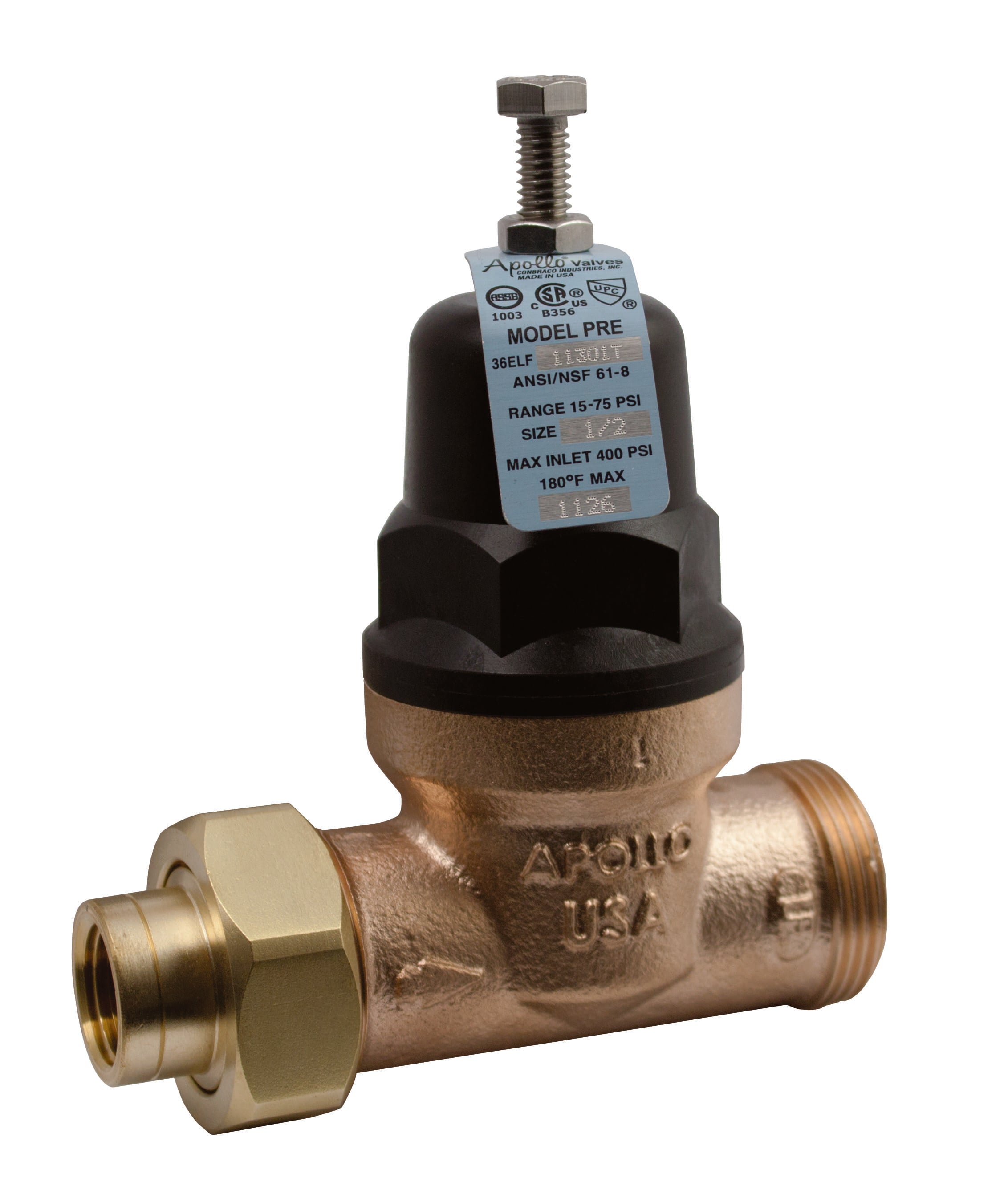

Apollo Valves 36ELF-1-1-4-01-T Pressure Reducing Valve 3/4 Inch FNPT Union x FNPT 400 PSIG Lead-Free

Product Description

The Apollo Valves model 36ELF-1-1-4-01-T is a robust pressure reducing valve designed for potable water distribution systems. With its lead-free construction and piston design, it consistently maintains downstream pressure between 15 to 75 PSI, ensuring efficient water flow and conservation.

• Lead-free bronze body with EPDM seat for exceptional durability.
• Inclusive of a stainless steel screen and thermal expansion bypass for reliability.
• Complies with ASSE 1003, NSF/ANSI 61/372, CSA B356 standards.

Product Highlights

This valve is equipped with a diaphragm and adjusting screw actuator, capable of handling pressures up to 400 PSIG. It operates efficiently between temperatures of 33 to 180 Degrees Fahrenheit.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: 36ELF-1-1-4-01-T

Technical Specifications

• Nominal Size: 3/4 Inch x 3/4 Inch
• Connection Type: FNPT Union x FNPT
• Maximum Pressure: 400 PSIG
• Temperature Range: 33 to 180 Degrees Fahrenheit
• Compliance: ASSE 1003, NSF/ANSI 61/372, CSA B356
