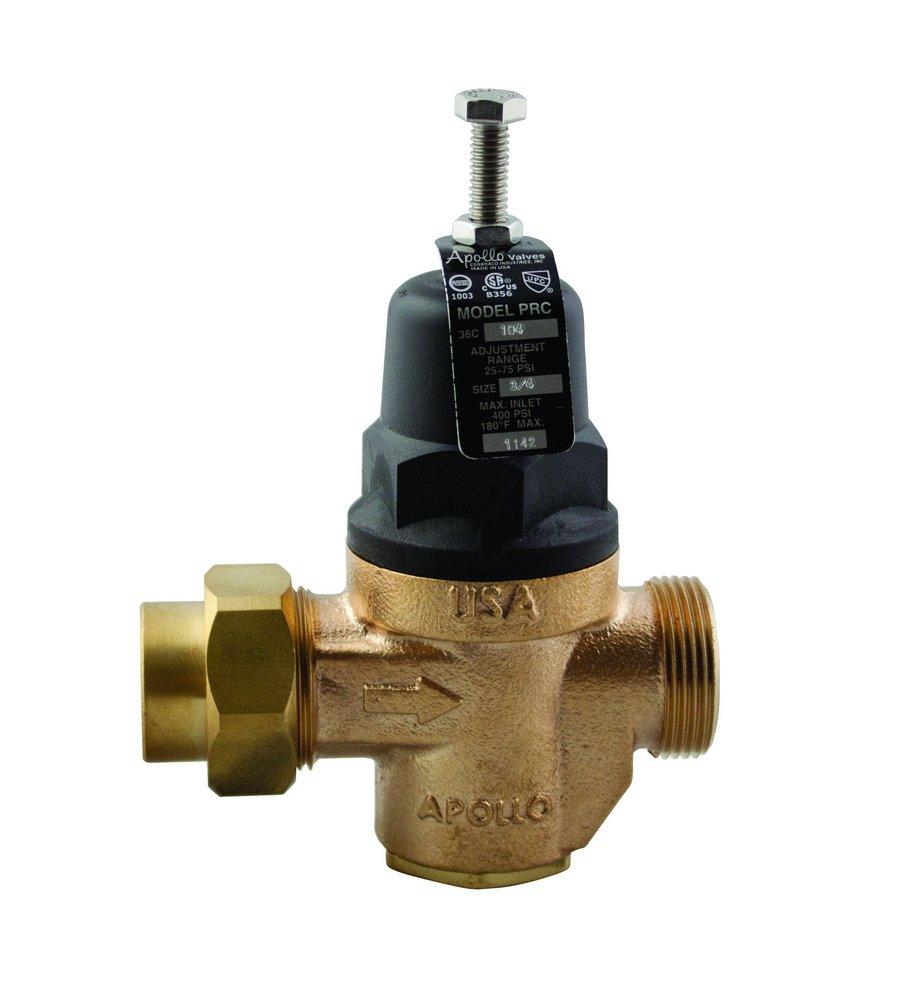

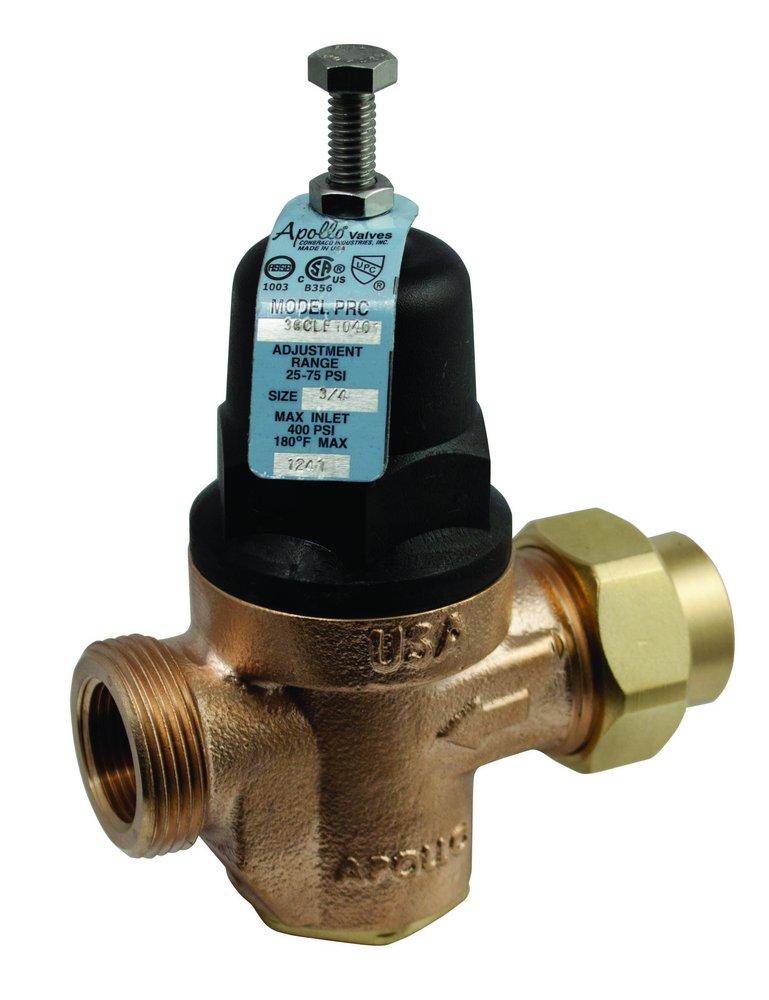

Apollo Valves 36CLF90401 Series 3/4 in. 75# 400 psi Bronze Double Union PEX Pressure Reducing Valve

Product Description

The APOLLO VALVES 36CLF90401 Series pressure reducing valve is designed to protect water distribution systems by automatically controlling excessive pressure changes. The valve's thermoplastic cage provides corrosion resistance and easy in-line servicing with bottom cleanout access to the seat disc and strainer. It is built for long reliable service with ASTM grade Lead Free materials.

• Built-In Thermal Expansion Bypass
• Balanced Piston Design
• Sealed Spring Cage for Vault Installations
• SS Adjusting Screw & Nut
• Bottom Access to Seat Disc & SS Strainer

Product Highlights

This valve features a balanced piston design and a sealed spring cage for vault installations. 100% Manufactured in USA.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 36CLF90401
• Country of Origin: USA

Technical Specifications

• Material: Bronze
• ANSI: ANSI Z21.22
• ASSE Standards: ASSE 1003
• ASTM: ASTM A-228
• CSA Certified: Yes
• Collection: 36CLF Series
• End Connection 1: Union
• End Connection 2: Barbed
• End Connections: Union x Barbed
• IAPMO Listed: No
• ISO: ISO 9001-2008
• Material Type: C89836
• Maximum Temperature: 180
• NSF Certified: Yes
• Pressure - Maximum: 400 psi
• Pressure Class: 75#
• UL Listed: No
• Valve Body Material: Bronze
• Valve Seat Material: EPDM
• Valve Size: 3/4 in
• Valve Type: Pressure Reducing Valve
