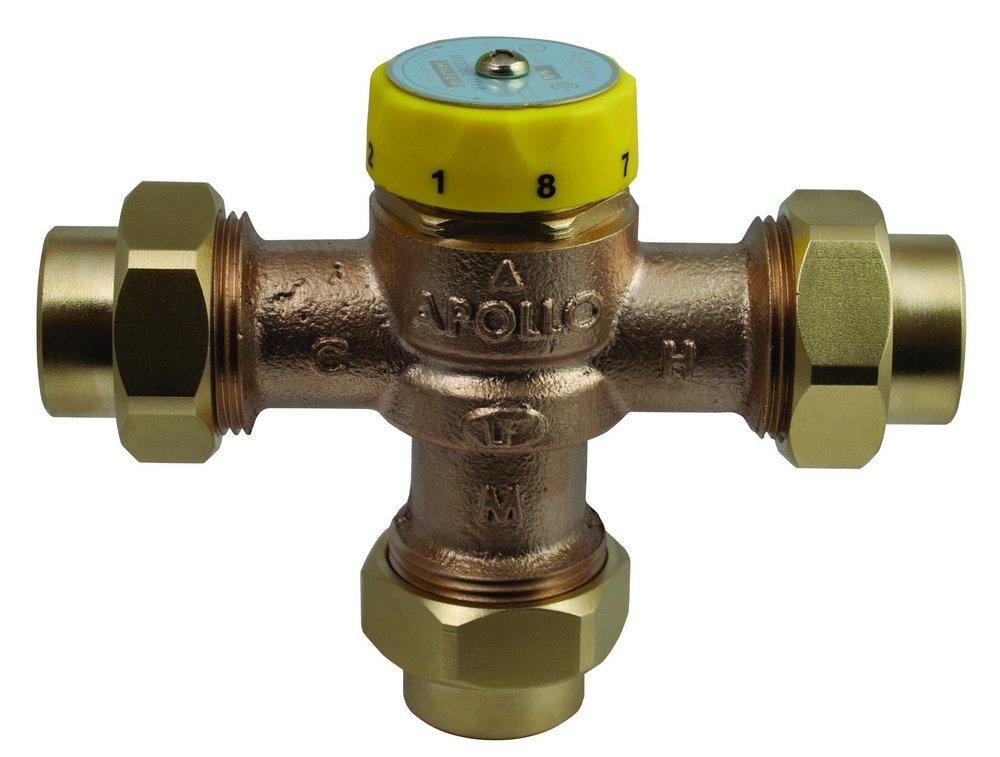

Apollo Valves 34ALF214T 3/4 Inch FNPT Thermostat Mixing Valve

Product Description

The Apollo Valves 34ALF214T 3/4 inch FNPT thermostat mixing valve is designed for tempered domestic water applications. Featuring integral inlet strainers and check valves, this valve ensures optimal performance, reliability, and accuracy. With superior thermostatic element technology, this valve provides over-temperature protection and instantaneous cold or hot water supply failure shut-off protection.

• Integral inlet strainers and check valves
• Thermostat over-temperature protection
• Fingertip temperature control

Product Highlights

This mixing valve is essential for maintaining consistent water temperature. It features a temperature adjustment range of 85 to 140 degrees Fahrenheit. The valve also includes tamper-resistant maximum temperature calibration.

Product Information

Standard Information

• Brand: Apollo Valves
• Model: MVA-34-LF
• MPN: 34ALF214T
• Valve Application: Tempered Domestic Water
• Body Material: Brass
• Valve Connection: FPT

Technical Specifications

• Inlet Connection Size: 3/4
• Outlet Connection Size: 3/4
• Minimum Flow GPM: 0.5 GPM
• Minimum Outlet Temperature: 85
• Maximum Outlet Temperature: 140
• Max Pressure: 150 psi
• Point-of-Use Certified: No
• Point-of-Source Certified: Yes
• ASSE Classification: 1017
• Replaces: MVA-34
• Weight: 2.90
