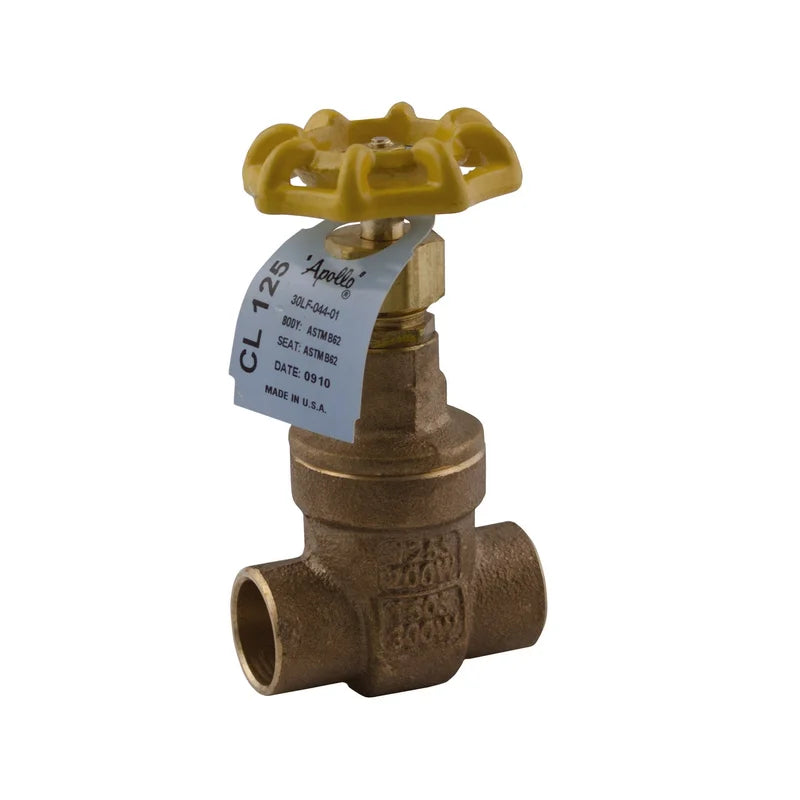

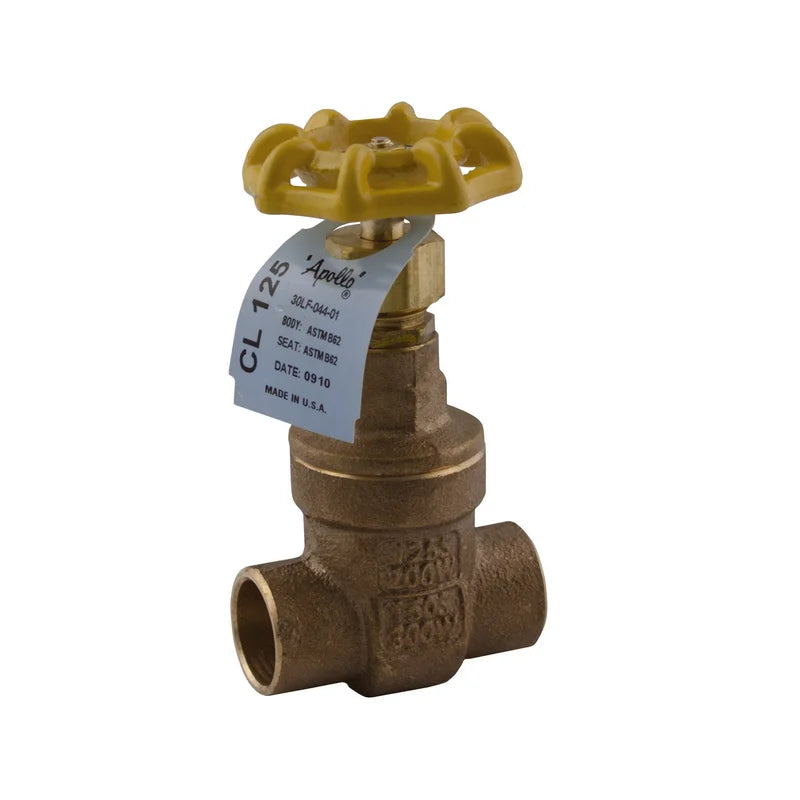

Apollo Valves 30LF-046-01 Class 125 Non-Rising Stem Bronze Gate Valve Threaded Bonnet (1-1/4 inches)

Product Description

Apollo Valves 30LF-046-01 is a Class 125 non-rising stem bronze gate valve with a threaded (screw-in) bonnet and solder end connections for 1-1/4" piping. The valve features a full-port design with a guided solid bronze disc wedge, adjustable graphite stem packing, backseat protection and a malleable iron hand wheel. It is certified lead-free for potable water and rated for saturated steam to 125 psi and cold working pressure of 200 psi.

• Lead-free bronze construction (C89836) with NSF/ANSI/CAN 61 and NSF/ANSI 372 certification; ARRA and ANSI third-party compliant.
• Full port design with guided solid bronze disc wedge, non-rising stem (NRS), adjustable graphite stem packing, threaded screw-in bonnet and backseat protection.
• Solder end connections (2 x solder) for 1-1/4" piping; rated saturated steam 125 psi and cold working pressure 200 psi; 100% machined and assembled in the United States.

Product Highlights

Full-port lead-free bronze gate valve, non-rising stem, threaded bonnet, solder end connections, 1-1/4" size, rated to 200 psi cold working pressure.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 30LF-046-01
• Country of Origin: United States

Technical Specifications

• Brand: Apollo Valves
• Manufacturer Part Number: 30LF-046-01
• Model: 102S-LF
• Series: 30LF
• Size: 1-1/4"
• Port: Full port
• Connection Type: Solder ends (2 x solder)
• Bonnet Type: Threaded (screw-in) bonnet
• Stem Type: Non-rising stem (NRS)
• Material: Lead-free bronze (C89836)
• Disc/Wedge: Guided solid bronze disc wedge
• Stem Packing: Adjustable graphite stem packing
• Handwheel: Malleable iron hand wheel
• Backseat Protection: Yes
• Saturated Steam Rating: 125 psi
• Cold Working Pressure: 200 psi
• Certifications: NSF/ANSI/CAN 61; NSF/ANSI 372; ANSI third-party lead-free certification; ARRA compliant
• Country of Origin: United States
• Weight: 2.55 lb
• Packaging: Carton (1 pce)
• UPC: 670750686887
• ETIM Class: EC010163 Gate valve
• UNSPS: 40141613
• Product Group: Valves
• Manufacture: 100% machined and assembled in the USA
