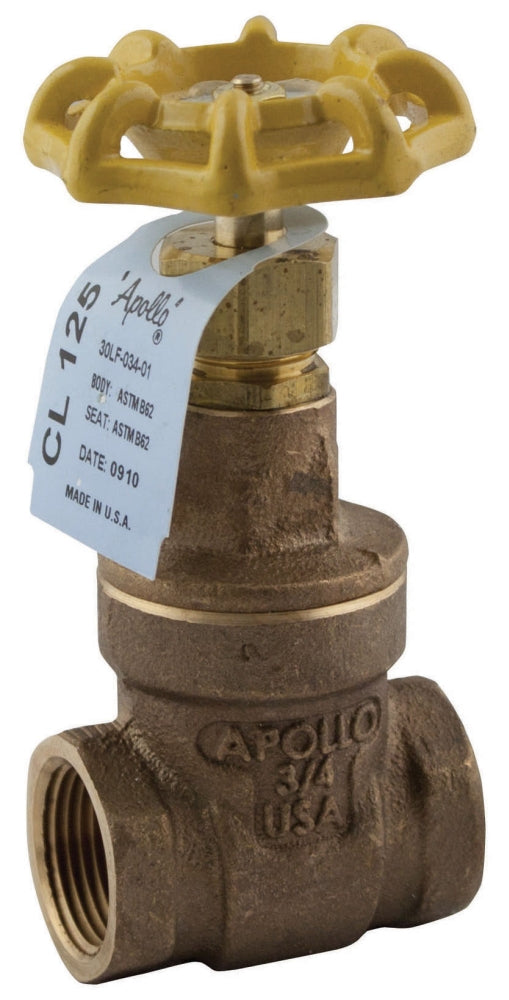

Apollo Valves 30LF-034-01 3/4 NPT x NPT Gate Valve

Product Description

The Apollo Valves 30LF-034-01 is a three-quarter inch gate valve designed for applications requiring a reliable, lead-free option. This valve features a solid wedge disc and full port design, ensuring effective flow control for both commercial and potable water systems.

• Lead-free construction for safety
• Adjustable graphite stem packing
• Temperature rating from minus twenty to four hundred six degrees Fahrenheit

Product Highlights

This valve meets several standards such as CSA B51 and NSF/ANSI, making it suitable for a range of applications including general plumbing and irrigation.

Product Information

Standard Information

• Manufacturer: Conbraco
• Model Number: 30LF-034-01

Technical Specifications

• Nominal Size: 3/4 Inch
• End Connection: Threaded x Threaded
• Pressure Rating: 125 PSI SWP, 200 PSI CWP
• Temperature Rating: -20 to 406 Deg F
• Body Material: ASTM B584 C89836 Bronze
• Stem Material: ASTM B21 UNS C46400 Brass
• Seat Material: ASTM B21 UNS C46400 Brass
• Wedge Material: ASTM B584 C89836 Bronze
• Handle Material: Malleable Iron
• Flow Rate: 24 Cv
