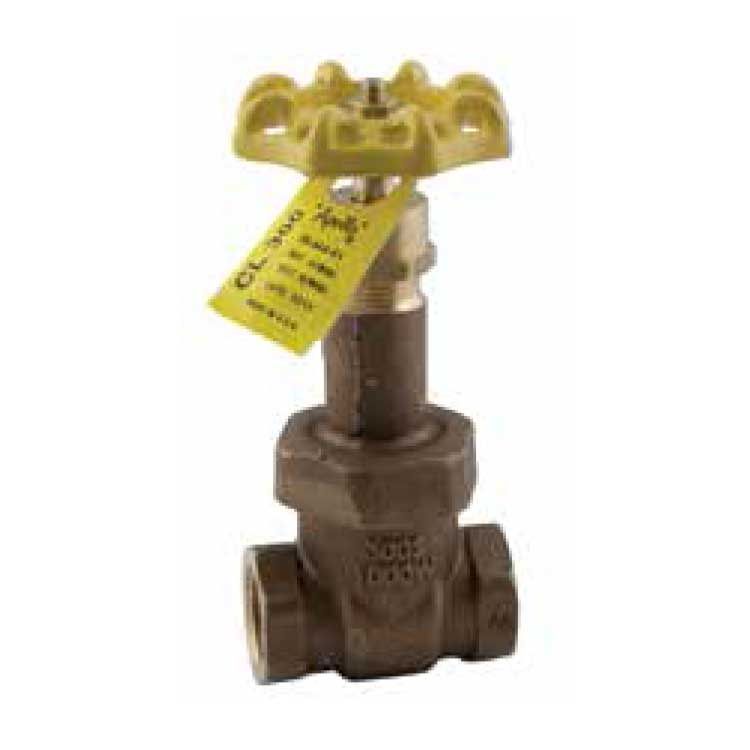

Apollo Valves 3044301 Apollo 111T - 1/2 NPT Gate Valve

Product Description

The Apollo Valves 3044301 is an effective gate valve designed for various applications. It features a half inch National Pipe Thread (NPT) connection and is constructed from bronze. This gate valve is suitable for steam applications and is rated for a maximum pressure of three hundred psi with a cold working pressure of one thousand psi at one hundred degrees Fahrenheit. It can operate in temperatures from negative twenty degrees Fahrenheit to four hundred twenty-two degrees Fahrenheit. To prevent freezing issues, ensure that the valve is in an open position to allow complete drainage during colder conditions.

• Rated Maximum Pressure: 300 psi
• Cold Working Pressure: 1000 psi at 100°F
• Temperature Range: -20°F to 422°F

Product Highlights

The Apollo 111T valve functions effectively in a steam system, providing reliable control of fluid flow.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 3044301

Technical Specifications

• Model: 111T12
• Valve Size: 1/2 inch
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Bronze
• Valve Application: Steam
• Max Pressure: 300 psi WSP
• Weight: 1.40 lbs
