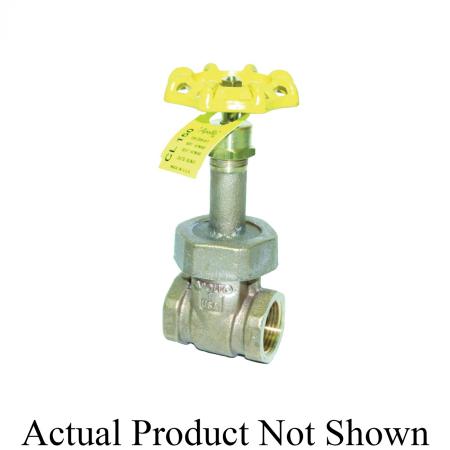

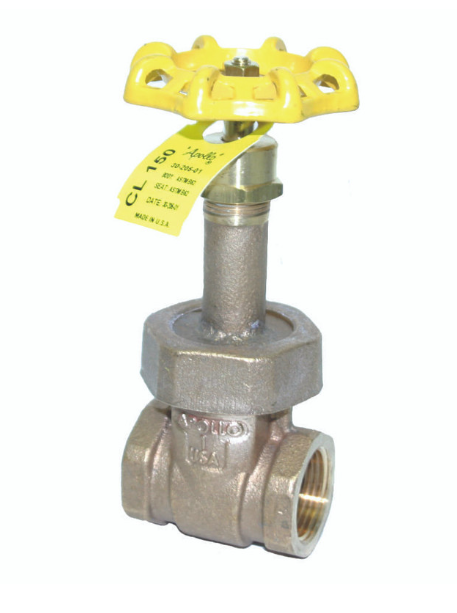

Apollo Valves 3020301 Model 107T 30 Series 1/2 in. Bronze Full Port NPT Gate Valve

Product Description

Apollo Valves 3020301 is a reliable gate valve that features a rising stem design. It has a half-inch NPT end connection ideal for various plumbing applications. This valve offers robust construction with a bronze body and brass/bronze trim for durability.

• Guided solid bronze disc wedge
• 100 percent factory tested
• Dezincification resistant for extended use

Product Highlights

This gate valve, designed for plumbing and heating applications, allows for effective control over fluid flow. Its adjustable graphite stem packing helps reduce leakage while offering ease of operation with a rugged handwheel actuator.

Product Information

Standard Information

• Manufacturer: Apollo Valves
• MPN: 3020301

Technical Specifications

• Valve Size: 1/2 inch
• Body Material: Bronze
• Pressure Rating: 300 psi CWP
• Temperature Rating: -20 to 406 degrees Fahrenheit
• Flow Rate: 12.5 gpm
• Trim Material: Brass/Bronze
• Actuator Type: Handwheel
• Pressure Class: 150 lb
