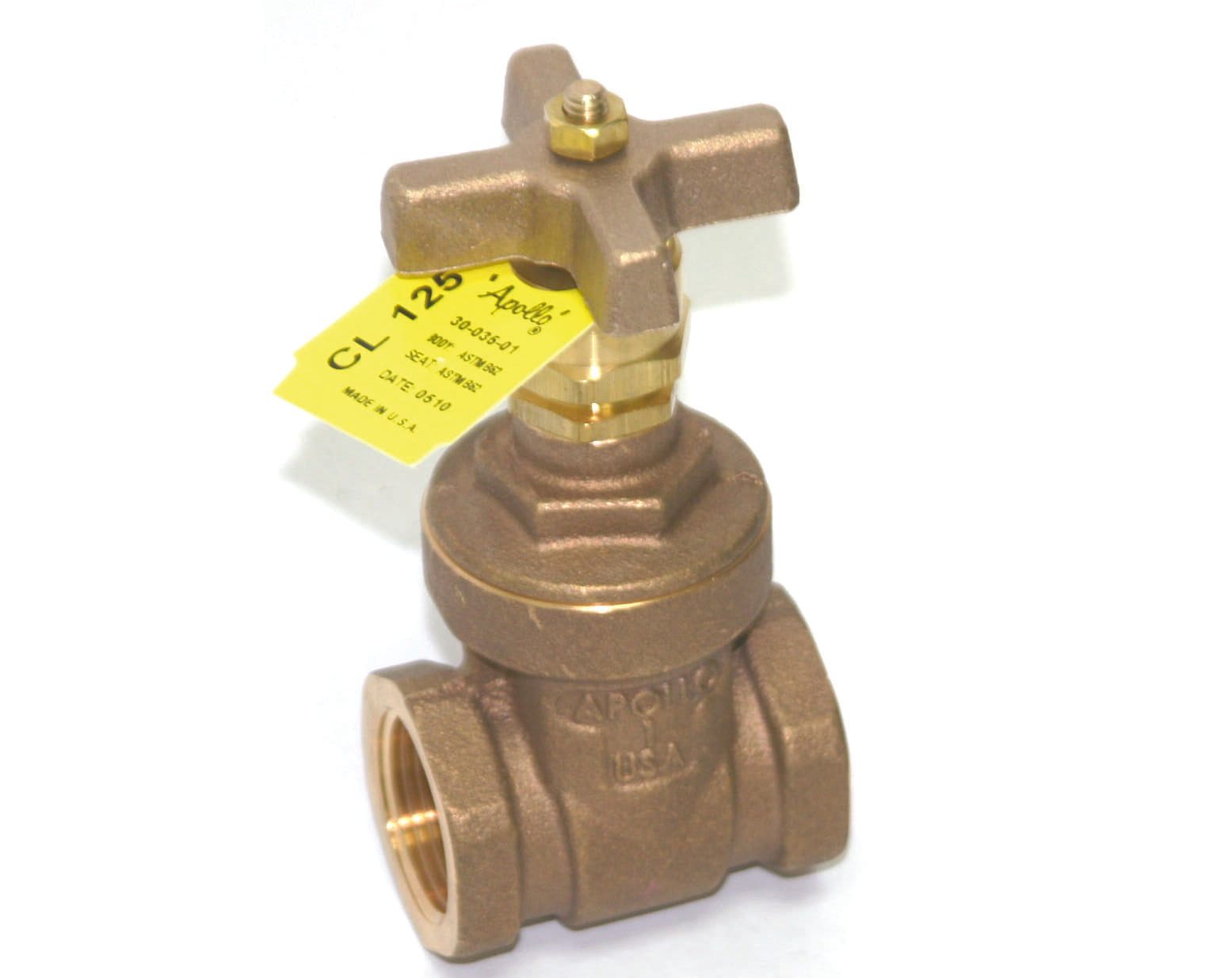

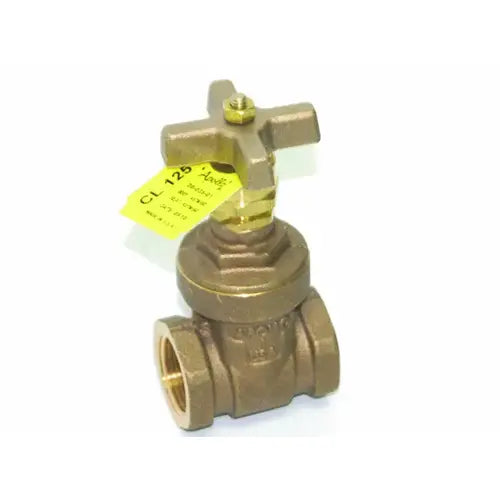

Apollo Valves 3003801K Class 125 Non-Rising Stem Bronze Gate Valve 2 inches

Product Description

The APOLLO VALVES 3003801K gate valve provides a cost-effective alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems. Full port for irrigation use.

• Full Port
• Irrigation Use
• 100% Cast, Machined and Assembled in the USA

Product Highlights

The Apollo gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 3003801K
• Country of Origin: USA

Technical Specifications

• DN1: 2"
• DN2: 2"
• article number with gtin: 3003801K (00670750688256)
• product number with gtin: 3003801K (00670750688256)
• manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
• item group: 3003X01K 3003X01K - Apollo Class 125 Non-Rising Stem Bronze Gate Valves, Threaded Bonnet, Bronze "Cross" Handle (2 x FNPT)
• size: 2"
• materials: bronze (C89836 (lead-free))
• finishing: none
• connection type: FPT - female thread conical (NPT), FPT - female thread conical (NPT)
• product group: valves ()
• ETIM class: EC010163 Gate valve
• Housing material: Bronze
• Connection 1: Internal thread conical (NPT)
• Connection 2: Internal thread conical (NPT)
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Surface protection: Untreated
• VdS quality mark: No
• KIWA certified: No
• Gastec QA mark: No
• Gastec QA - AR 214 (H2): No
• etim-class: EC010163 Gate valve
• Material: Bronze
• End Style: Threaded
• Type: Gate Valve
• Series: 30
• Product Type: Gate Valve
• Length: 9.5"
• Width: 6.5"
• Height: 5.62"
• Applications: Heating, Cooling, Steam
• Approvals: CRN
• Segments: Commercial Building
• Brand: Apollo
• Application: Pool, Spa, Irrigation
• Channel: Construction Channel
• Commercial, Residential, or Professional: Commercial, Professional, Residential
• Pressure Rating: 200 pounds per square inch
• Valve Color: Bronze
• UPC Code: 670750688256
