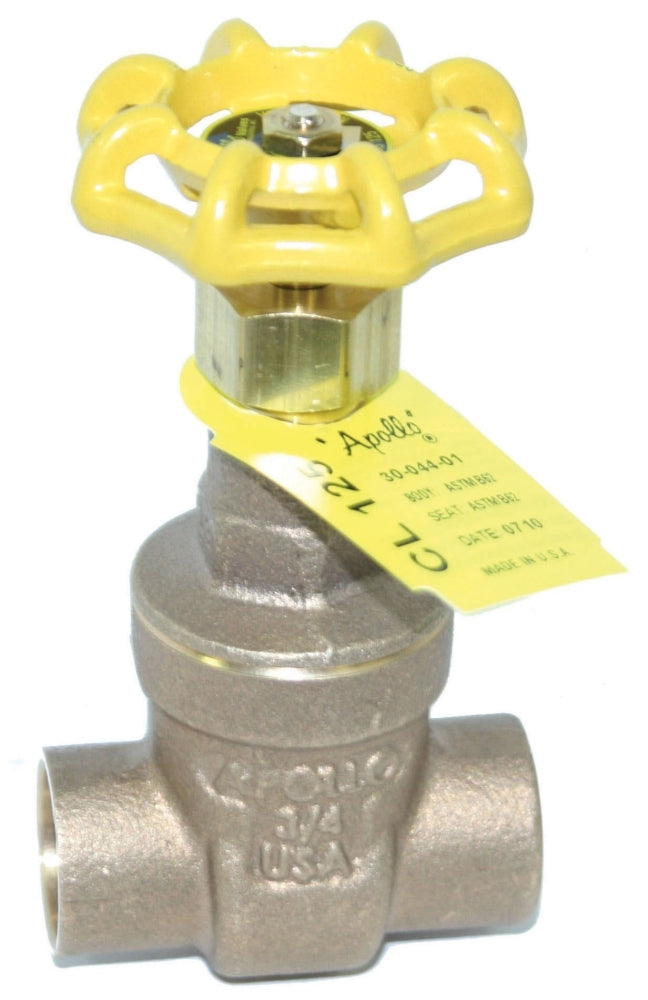

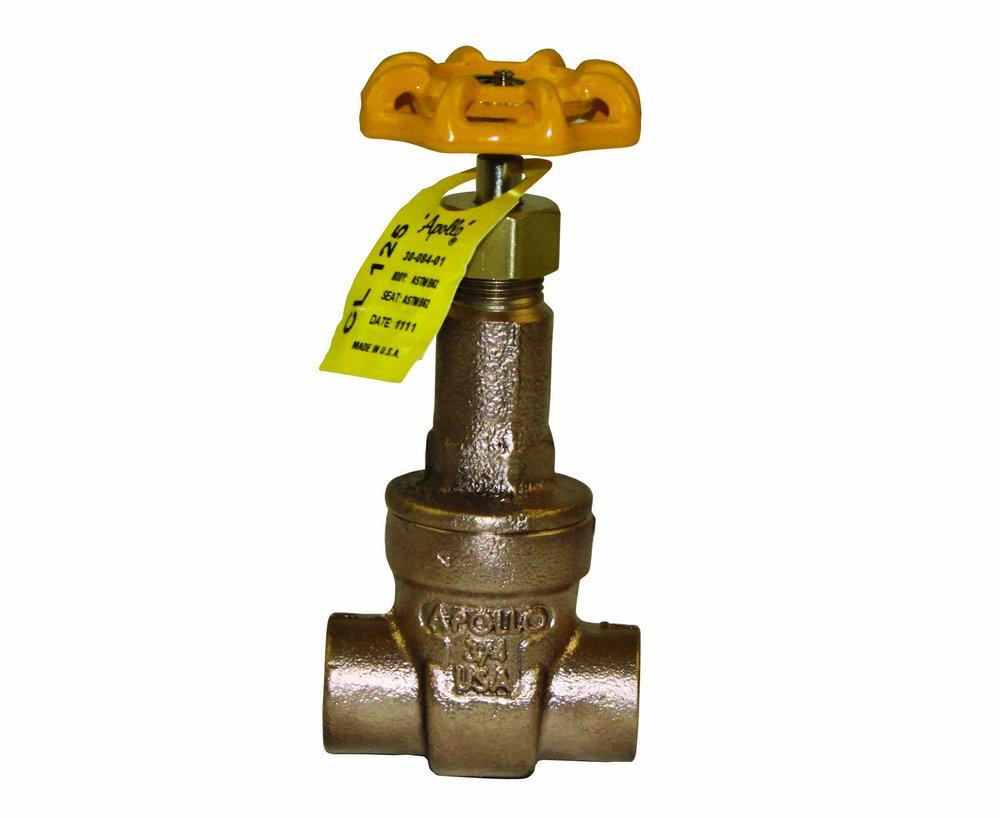

Apollo Valves 30-047-01 Model 102S 1-1/2 Inch Bronze Full Port Solder Gate Valve

Product Description

The Conbraco 30-047-01 is a reliable gate valve designed for various plumbing applications. This model features a full port solid wedge disc and is built from ASTM B62 bronze for durability. The valve operates with a handwheel and is ideal for commercial use, ensuring efficient flow control.

• Nominal size of one and a half inches by one and a half inches.
• Pressure rating of two hundred PSI at one hundred degrees Fahrenheit.
• Suitable for temperatures ranging from negative twenty to four hundred six degrees Fahrenheit.

Product Highlights

The gate valve utilizes a non-rising stem design and female soldered connections. It includes an aluminum nameplate for identification and features a threaded bonnet for easy maintenance.

Product Information

Standard Information

• Manufacturer: Conbraco
• Type: Full Port, Solid Wedge Disc

Technical Specifications

• Nominal Size: 1-1/2 Inch x 1-1/2 Inch
• Body Material: ASTM B62 Bronze
• Temperature Rating: -20 to 406 Deg F
• Pressure Rating: Class 125, 200 PSI at 100 Deg F CWP
• End Connection: Female Soldered x Female Soldered
• Inclusions: Aluminum Nameplate
• Application: Commercial
• Flow Capacity: 119 GPM
