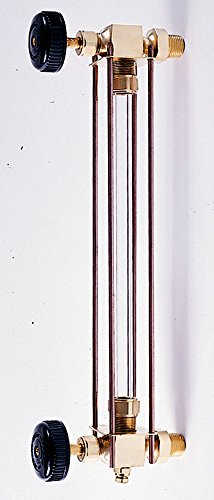

Apollo Valves 25-501-00 Water Gauge Automatic 1/2 In MNPT Bronze

Product Description

The Apollo Valves 25-501-00 Water Gauge is a reliable solution for indicating water levels in various systems. Featuring a 1/2 inch MNPT connection and constructed from bronze, this gauge is designed for durability and long-lasting use.

• Durable bronze body material
• 12 inch glass length
• 400 psig maximum pressure

Product Highlights

This water gauge by Apollo Valves includes a needle drain valve in the lower arm and supports a maximum temperature of 400 degrees Fahrenheit. The glass tube, with an outer diameter of 5/8 inch, is protected by four guard rods, ensuring longevity and safety during operation.

Product Information

Standard Information

• Manufacturer: Apollo Valves
• Model: 25-501-00

Technical Specifications

• Pipe Size: 1/2 inch
• Connection: MNPT
• Max. Temp.: 400 degrees Fahrenheit
• Glass Length: 12 inches
• Body Material: Bronze
• Max. Pressure: 400 psig at 100 degrees Fahrenheit
• Glass Tube O.D.: 5/8 inch
• Number of Guard Rods: 4
• Center to Center Length: 14 inches
• Water Gauge Gasket Material: EPDM
