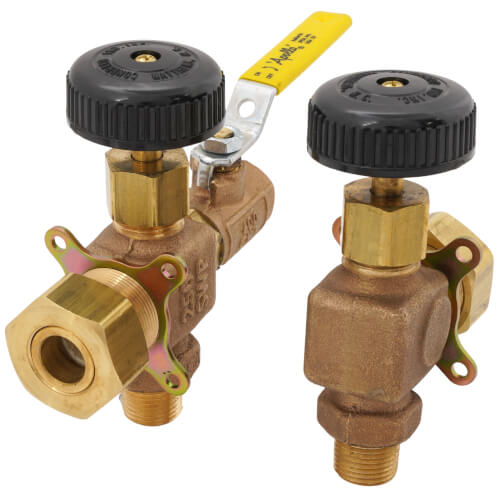

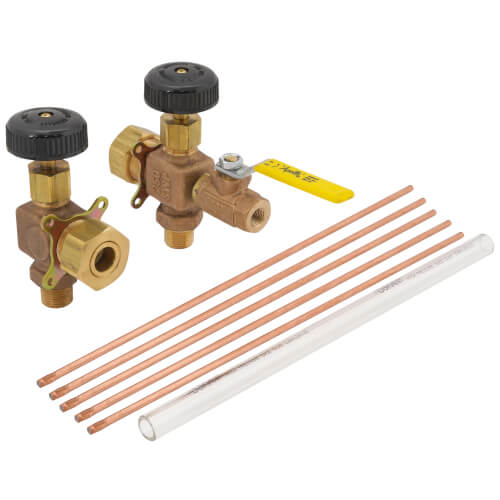

Apollo Valves 24-302-00 1/2 Inch Bronze Liquid Level Gauge With 12 Inch Glass and Rod

Product Description

The Apollo Valves model 24-302-00 is a robust bronze liquid level gauge designed for measuring liquid levels in various industrial applications. This gauge is especially useful in steam heating systems where precise level monitoring is critical.

• Constructed with a heavy-duty bronze valve body for enhanced durability and reliability.
• Features a PTFE reinforced gauge glass gasket and stem packing, ensuring tight seals and long-lasting performance.
• Equipped with guard rod brackets that can accommodate up to four rods, enhancing the structural integrity of the gauge.

Product Highlights

Designed for both automatic and non-automatic operations, this gauge conforms to ASME boiler code requirements. It is suitable for high-pressure applications up to 250 psig at 400 degrees Fahrenheit and 500 psig at 100 degrees Fahrenheit. The gauge includes ball checks in the upper and lower arms for improved safety and efficiency.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 24-302-00

Technical Specifications

• Type: Bronze Liquid Level Gauge
• Material: Bronze, Glass
• Size: 1/2 inch NPT connection, Glass dimensions: 5/8 inch OD, 12 inches length
• Features: CRN Registered, Bronze ball valve drains
