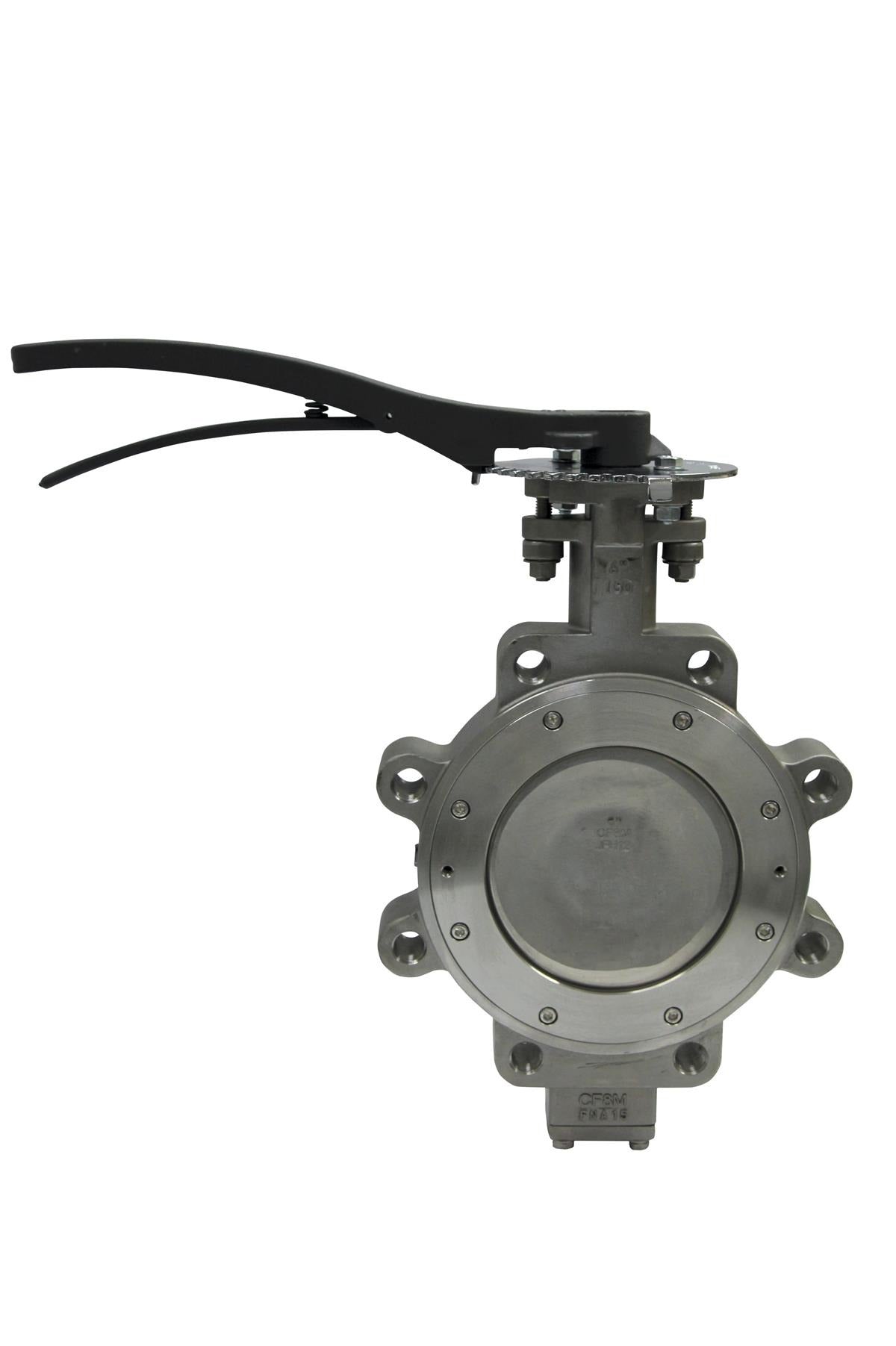

Apollo Valves 215L18CSP8TA2 Class 150 Carbon Steel Butterfly Valve (18 in / 2 Lug)

Product Description

Apollo Valves 215L18CSP8TA2 is a double-offset Class 150 carbon steel butterfly valve with a stainless steel disc, stem, and pin for industrial flow isolation. The 18 in (DN 450) lug-style valve incorporates an RTFM (TFM 1700) soft seat, multi-bolt seat retainer, and ISO 5211 mounting flange for actuator compatibility. It uses a worm gear operator, supports bi-directional dead-end service at CWP 285 psi, and provides vacuum service to 29 in Hg.

• Double-offset high-performance design with carbon steel body (ASTM A216 WCB)
• Stainless steel disc, stem, and pin with RTFM (TFM 1700) soft seat and multi-bolt retainer
• Worm gear operator, ISO 5211 mounting flange, lug connection for bi-directional dead-end service (CWP 285 psi), vacuum to 29 in Hg

Product Highlights

18 in Class 150 lug-type double-offset butterfly valve; carbon steel body; stainless internals; TFM 1700 soft seat; ISO 5211 mounting; CWP 285 psi; vacuum to 29 in Hg.

Product Information

Standard Information

• Brand: APOLLO VALVES
• Manufacturer Part Number: 215L18CSP8TA2
• Country of Origin: China
