APOLLO VALVES 20-350-00 Water Gauge EPDM Glass Seal Aluminum Wheel Replacement

Product Description

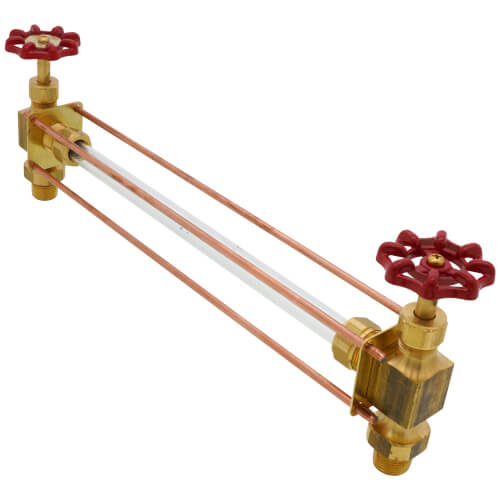

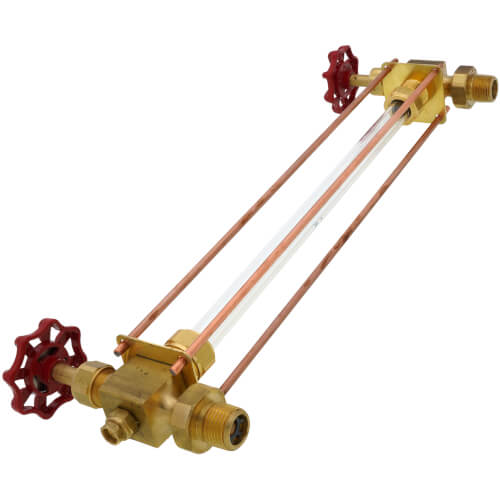

The Apollo Valves Water Gauge, MPN 20-350-00, is a robust tool designed for monitoring water levels in steam-based heating systems. Manufactured with B-584 cast bronze, it features a 1/2 inch NPT male pipe connection and includes essential components such as EPDM gauge glass gaskets for reliability and four guard rods for added safety.

• Includes a standard 1/4 inch needle drain valve for efficient maintenance.
• Equipped with automatic ball checks to prevent fluid loss if the glass breaks.
• Features an optional Apollo ball valve drain and pet cock upon request.

Product Highlights

This gauge is suitable for use at pressure ratings of up to 200 psig at 400°F and up to 400 psig at 100°F. It is CRN registered, denoting compliance with Canadian registration standards.

Product Information

Standard Information

• Connection Type: Threaded
• Material: Rough Bronze
• Seal Material: EPDM

Technical Specifications

• Length: 12 inches
• Outer Diameter of Glass: 5/8 inches
• Rated Pressure: Up to 400 psig
• Operating Temperature: Up to 400°F
• Valve Type: Needle / Apollo Ball Valve (Optional)
